SIEMENSSIMATIC ET 200SP HA

01 / PRODUCT DETAILS

6DL1135-6TF00-0PH1

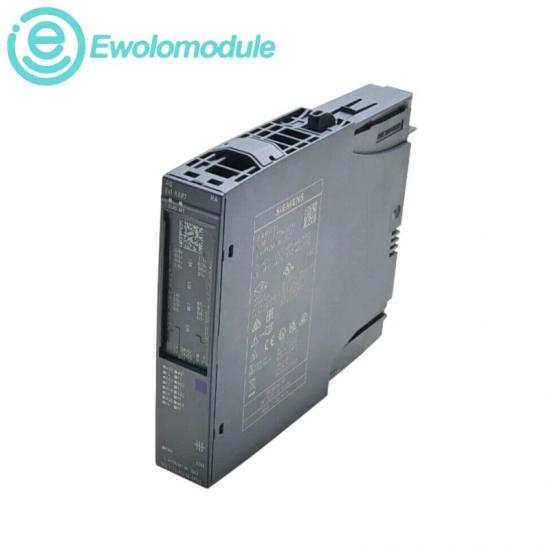

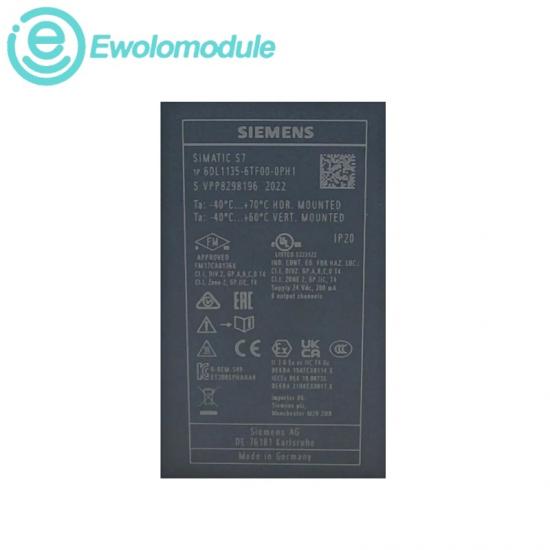

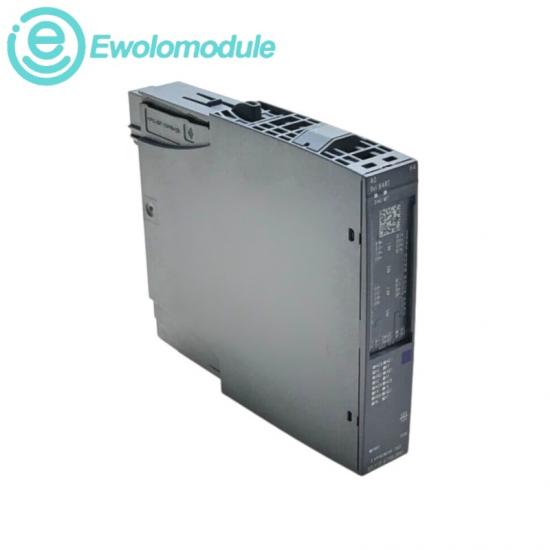

AQ 8xI HART HA Analog Output Module

A process-output interface for commanding field actuators.

ConditionNew Original

WarrantyOne year

In stock2

Official data sourcesSiemens AQ 8xI HART HA Manual · Siemens ST PCS 7 Catalog, 2021

Technical record

02 / SPECIFICATIONS

Product position

The module converts controller setpoints into current signals while exchanging HART field-device information.

Output channels

Analog outputs8 current channels

Output ranges0–10 mA, 0–20 mA, 4–20 mA

ResolutionUp to 16 bits, including sign

Resistive load750 Ω maximum

Supply & operating limits

Rated supply24 V DC; permitted 19.2–28.8 V

Current consumption350 mA max. at 8 × 24 mA / 750 Ω

Power loss3.2 W typical

Horizontal operation−40°C to +70°C

Ordering code note

The 0PH1 article is the PCS 7 / STEP 7 engineering variant; retain the complete code when selecting a replacement.

System connection

Use the specified ET 200SP HA terminal block. I/O redundancy requires TB type M1. PCS 7 integration is supported from V9.0.

Diagnostics

Channel-specific fault reporting.

Maintenance

Firmware can be updated.

Parameterization

Channel settings can change in RUN.
