Product overview

SIEMENS

Article number

6DL1161-6BL00-0PH1

Warranty: One year
Availability: In stock

Official product name

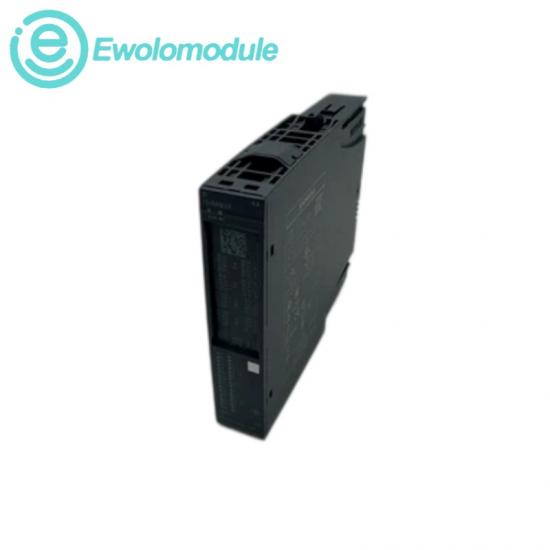

SIMATIC ET 200PA SMART+ DI 32x24VDC PA

A 32-channel 24 V DC digital input module with channel diagnostics for SIMATIC PCS 7 and PCS neo process I/O systems.

Tel : +86 17359287459

Email : sales9@apterpower.com

COMMUNICATION & COMPLIANCE

Connects through the ET 200PA SMART+ backplane and terminal block
Supports PCS 7 from V9.1 SP2 and PCS neo from V4.1
I&M 0 data supports module identification and maintenance

Use a SELV/PELV supply according to IEC/UL 61010-2-201
Reverse-polarity protection is integrated
Channel-to-backplane isolation is type-tested at 1,500 V DC

Official technical data

Digital inputs	32	Supply voltage	24 V DC
Supply range	19.2 to 28.8 V DC	Current consumption	15 mA max.
Power loss	1.6 W typical	Diagnostics	Channel by channel
Horizontal range	-40 °C to +70 °C	Vertical range	-40 °C to +60 °C

BRAND & APPLICATIONS

High-density process digital input design
Channel-level diagnostics for maintenance
Native PCS 7 and PCS neo integration

Process-plant status acquisition
Distributed instrumentation and interlocks
Chemical, energy and water facilities
