SIEMENS · PRODUCT DETAILS

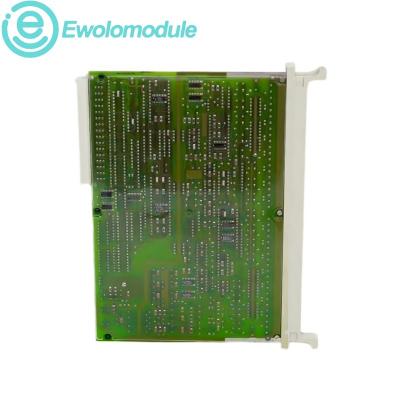

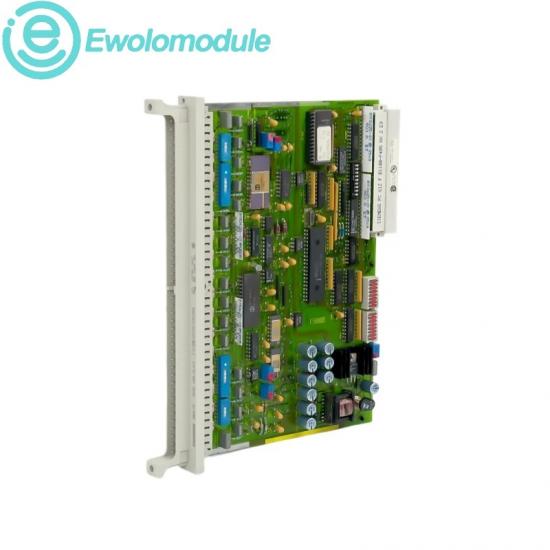

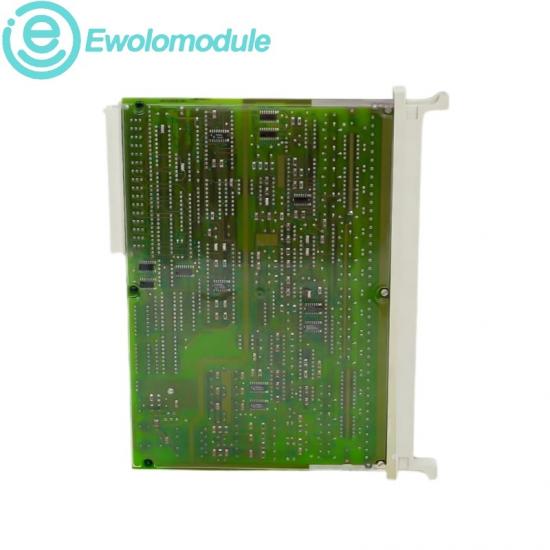

SIMATIC S5 100U Analog Input Module

6ES5464-8MC11

PRODUCT IDENTITY

A legacy four-channel isolated ±10 V analog input module for SIMATIC S5-100U automation systems. It converts field voltage signals into process values for PLC monitoring and control.

☎ +86 17359287459

✉ sales9@apterpower.com

RELATED MODELS

DIAGNOSTICS · INSTALLATION

Channel diagnostics and controlled replacement

DIAGNOSTICS & PROTECTION

◆ Check channel range and polarity before energizing

◆ Isolate field wiring when locating overrange or signal faults

◆ Verify shielding, grounding and module seating during fault diagnosis

INSTALLATION & UPGRADE

◆ Record terminal assignments and operating mode before replacement

◆ Match the installed S5-100U bus module and address allocation

◆ Commission one channel at a time and compare measured values

OFFICIAL TECHNICAL DATA

Product typeAnalog input module	Input channels4	Signal range−10 to +10 V	Channel designIsolated
System familySIMATIC S5-100U	Address scope4 bytes	Typical delay120 ms	Current consumption70 mA

Official data based on Siemens SIMATIC S5-100U and ET 200U documentation for 6ES5 464-8MC11.

BRAND CHARACTERISTICS · APPLICATION AREAS

Automation reliability and practical system fit

BRAND CHARACTERISTICS

◆ Integrated PLC, distributed-I/O and industrial communication portfolio

◆ Modular hardware for structured maintenance and replacement

◆ Long installed base across production and process automation

APPLICATION AREAS

◆ Machine and production-line signal acquisition

◆ Process measurement and analog monitoring

◆ SIMATIC S5 installed-base service and modernization
