SIEMENS · PRODUCT DETAILS

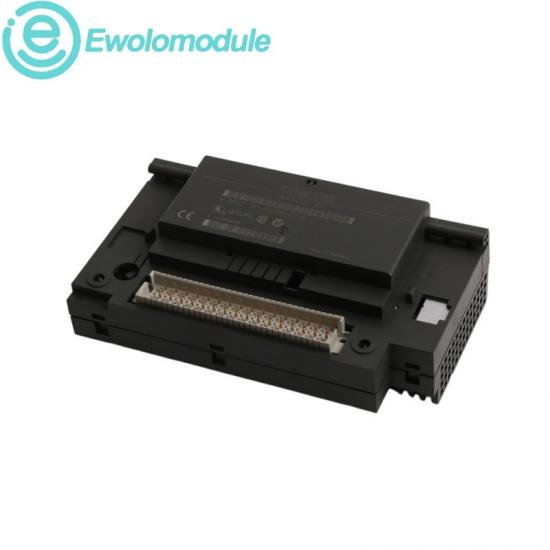

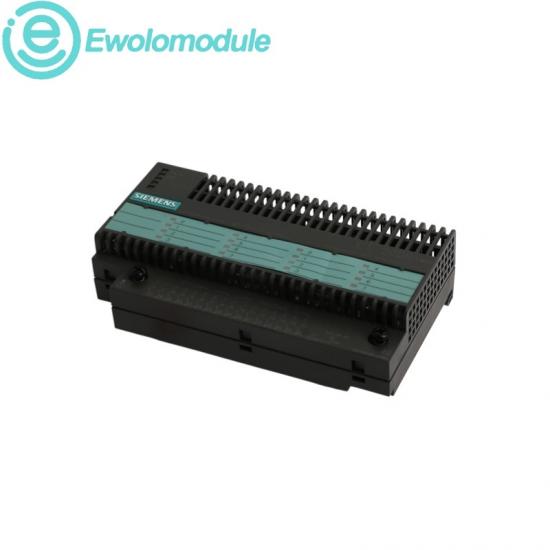

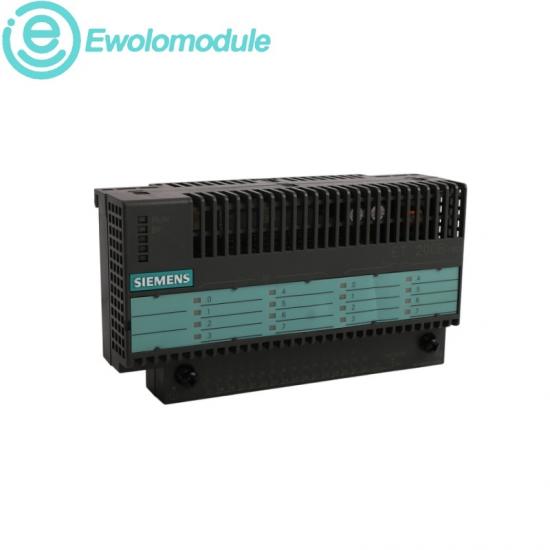

Siemens 6ES7131-0BH00-0XB0 SIMATIC ET 200B 16DI Digital Input Module

Sixteen digital input channels for established ET 200B distributed I/O systems.

SIMATIC ET 200B

CONDITIONNew Original

WARRANTYOne year

☎ +86 17359287459 ✉ sales9@apterpower.com

Product snapshot

The ET 200B-16DI electronics block brings discrete sensor and switch signals into a PROFIBUS DP station.

Its role is especially relevant to maintenance of installed ET 200B hardware.

System fit

Field contacts and proximity sensors connect through the matching terminal block.

Station address and I/O mapping must be retained during a like-for-like changeover.

Explore other Siemens products →

Operation, protection & changeover

Practical checks for SIMATIC ET 200B installations

◇ Diagnostics & Protection

Use RUN and BF indicators to distinguish supply and bus conditions.

Compare channel LEDs with actual switch states before replacing the electronics block.

↗ Installation & Upgrades

The Siemens manual lists compatible TB1/DC, TB1-4/DC and TB3/DC terminal blocks.

Check the terminal block and complete order code; do not infer compatibility from a nearby suffix.

Official technical data

Digital inputs16	Rated input24 V DC	Permissible supply18.5–30.2 V DC
Input delay2.0–3.5 ms	Bus protocolPROFIBUS DP	Bus rateUp to 12 Mbit/s with IM 308-C
Power loss2.5 W typical	Status indicationRUN, BF and input LEDs	Sensor supply500 mA max.

Source: Siemens technical data for 6ES7131-0BH00-0XB0. Only exact-order-code facts are listed.

Platform context & applications

Siemens brand characteristics

Siemens SIMATIC I/O families provide documented station types for structured industrial automation projects.

SIMATIC ET 200B provides digital input module functionality within the documented SIMATIC platform.

Maintaining the exact order code and project configuration supports orderly service and replacement.

Application fields

Legacy ET 200B distributed input stations.

Machine status and sensor-signal acquisition.

Service replacement in documented PROFIBUS DP systems.

Recommended models

Siemens

6ES7132-0BH00-0XB0	6ES7132-0BH10-0XB0	6ES7132-0BL00-0XB0	6ES7131-0BH00-0XB0
6ES7133-0BH00-0XB0	6ES7141-6BH00-0AB0	6ES7142-6BH00-0AB0	6ES7132-4BD31-0AA0
6ES7132-4BF50-0AA0	6ES7322-1HF10-0AA0	6ES7322-1FH00-0AA0	6ES7422-1BH10-0AA0
6ES7422-1FH00-0AA0	6ES7522-1BF00-0AB0	6ES7521-1FH00-0AA0	6ES7954-8LL03-0AA0
6ES7231-5ND32-0XB0	6ES7123-1GB00-0AB0	6ES7144-5KD00-0BA0	6ES7952-1AK00-0AA0

Beckhoff

EL1002	EL1004	EL1008	EL1012
EL1014	EL1018	EL1809	EL1889
EL2002	EL2004	EL2008	EL2024
EL2809	EL3002	EL3054	EL3064
EL4002	EL4004	EL4102	EL5101

Model references only; verify electrical and mechanical compatibility before substitution.
