PRODUCT DETAILS

SIEMENS

ARTICLE NUMBER6ES7132-4BD01-0AA0

OFFICIAL PRODUCT NAME

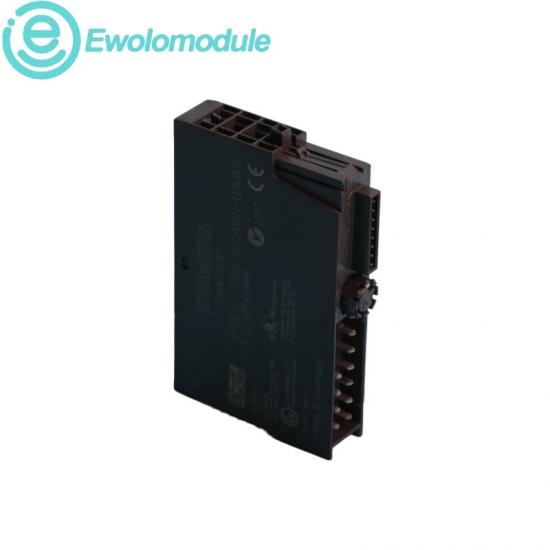

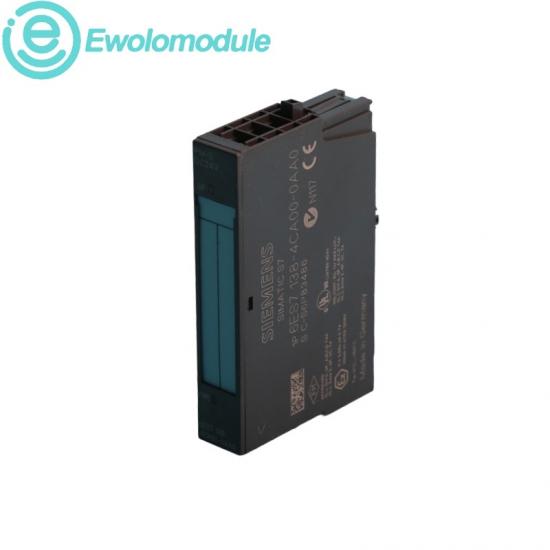

SIMATIC DP ET 200S 4DO 24 V DC/0.5 A ST Digital Output Module

Four 24 V DC digital outputs provide 0.5 A per channel for compact ET 200S actuator control, with short-circuit protection and clear channel-status indication.

WARRANTY

One year

AVAILABILITY

In stock

TEL

+86 17359287459

sales9@apterpower.com

INSTALLATION, UPGRADES & FIRMWARE

DIGITAL OUTPUTS4

RATED LOAD24 V DC

CURRENT / CHANNEL0.5 A

MODULE WIDTH15 mm

INSTALLATION & UPGRADE

FIRMWARE & UPDATES

01Fit the module in a compatible 15 mm ET 200S electronic-module position.

PASSIVE I/ONo separate firmware or software image is stored in this electronic module.

02Remove load voltage before inserting, removing or rewiring the module.

PROJECT DATAOutput behavior is defined through the ET 200S station and controller configuration.

03Connect solenoid valves, DC contactors or indicator loads within the 0.5 A channel rating.

STATUS CHECKUse the green channel LEDs during commissioning; this version has no diagnostic function.

04After replacement, verify output mapping and run an actuator function test.

SUCCESSOR REVIEWMatch the four-output rating, 24 V load group and terminal-base arrangement before substitution.

BRAND CHARACTERISTICS & APPLICATION FIELDS

BRAND CHARACTERISTICS

APPLICATION FIELDS

◆ Four protected 24 V DC outputs support compact distributed switching.

◆ Solenoid-valve and contactor control in machine automation.

◆ A 15 mm module width preserves ET 200S station density.

◆ Indicator and signal-load switching in control cabinets.

◆ Channel LEDs provide direct output-state visibility during service.

◆ ET 200S distributed I/O expansion and maintenance replacement.

◆ Siemens documentation supports exact article and configuration checks.

◆ Standardized spare-parts programs for installed automation lines.
