01 · PRODUCT DETAILS

Official product identity

SIEMENS INDUSTRIAL AUTOMATION

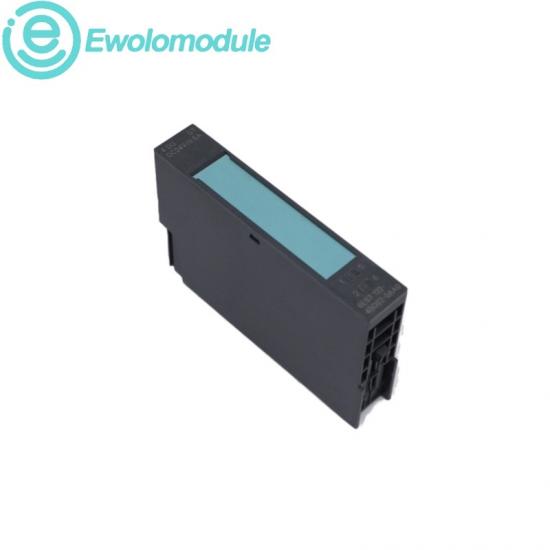

Siemens 6ES7132-4BD30-0AA0 Digital Output Module

A 15 mm ET 200S electronic module for controlling four 24 V DC loads with up to 2 A per output.

PURCHASE & PRODUCT PROFILE

SERIES

SIMATIC ET 200S

CONDITION

New Original

WARRANTY

One year

AVAILABILITY

In stock

Related models on site

Siemens Products 6ES7340-1AH02-0AE0 6ES7315-2EG10-0AB0

02 · SPECIFICATIONS

Official Siemens product data

Four-channel high-current output control for ET 200S

The Standard electronic module connects higher-current field loads to a distributed ET 200S station. Four separately addressed outputs serve actuators while the matching terminal module provides field wiring.

Official technical data

PRODUCT DESIGNATION

4 DO ST 24 V DC / 2 A

DIGITAL OUTPUTS

OUTPUT VOLTAGE

24 V DC

OUTPUT CURRENT

2 A per output

MODULE WIDTH

15 mm

POWER DISSIPATION

1.6 W

Certification & Standards

MODULE CLASS

Standard electronic module

RoHS STATUS

Product is not RoHS compliant

LIFECYCLE STATUS

Discontinued since 1 October 2012

Compatibility & Interoperability

STATION FAMILY

SIMATIC ET 200S

TERMINAL MODULE

TM-E15S24-01

SUPPORTED LOADS

Solenoid valves, DC contactors and lamps

Four 2 A outputs

Standard 15 mm module

Defined terminal assignment

03 · RECOMMAND

Brand strengths and application fields

Brand characteristics

Application fields

Coordinated ET 200S modules, defined terminal assignments and official lifecycle data support maintainable distributed-control systems.

Higher-current digital load switching in modular remote-I/O stations.

Modular stationMatched electronic and terminal modules

Actuator controlValves, contactors and indicators

Terminal conceptDefined field-wiring assignment

Machine sectionsFour-channel 24 V DC load groups

Lifecycle recordsDocumented successor information

System serviceET 200S replacement projects
