PRODUCT DETAILSSIEMENS

ARTICLE NUMBER

6ES7132-6BD20-0BA0

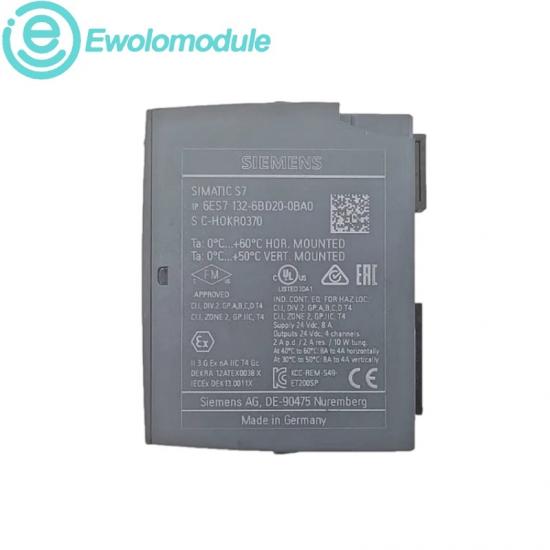

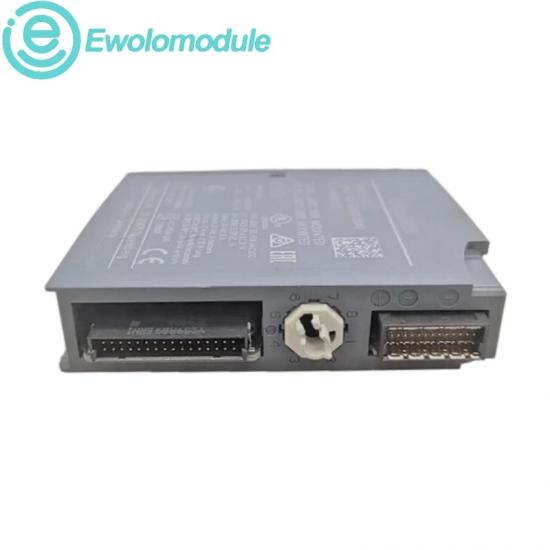

SIMATIC ET 200SP Digital Output Module

Compact four-channel output module for switching higher-current 24 V DC loads in modular ET 200SP stations.

WARRANTYOne year

AVAILABILITYIn stock

TEL+86 17359287459

EMAILsales9@apterpower.com

DIAGNOSTICS, PROTECTION & INSTALLATION

Digital outputs4 DQ	Rated voltage24 V DC	Output current2 A per channel	BaseUnit typeA0
Color codeCC02	FirmwareV1.1.5	Power loss1 W typical	Address space1 byte + 1 byte QI

DIAGNOSTICS & PROTECTION

Integrated module diagnostics support channel and station troubleshooting.
Reverse-polarity protection supports reliable 24 V DC supply handling.
Evaluate quality information where the configured station supports QI.
Check load current, wiring and potential group before module replacement.

INSTALLATION & UPGRADES

Install on the specified ET 200SP BaseUnit type A0.
Preserve mechanical coding and the configured slot assignment.
Engineering support includes STEP 7, TIA Portal and documented GSD options.
Verify all four output channels under controlled load after installation.

BRAND CHARACTERISTICS & APPLICATION FIELDS

BRAND CHARACTERISTICS	APPLICATION FIELDS
◆ Siemens ET 200SP design combines compact width with modular serviceability.	◆ Solenoid valves, contactors and higher-current 24 V DC loads.
◆ Firmware can be updated within the supported engineering environment.	◆ Compact machine-control and process-skid I/O stations.
◆ Color and mechanical coding reduce installation errors.	◆ ET 200SP station expansion and standardized panel construction.
◆ Official diagnostics support structured maintenance procedures.	◆ Lifecycle replacement where slot coding and address allocation must remain.
