SiemensProduct Details / Identity

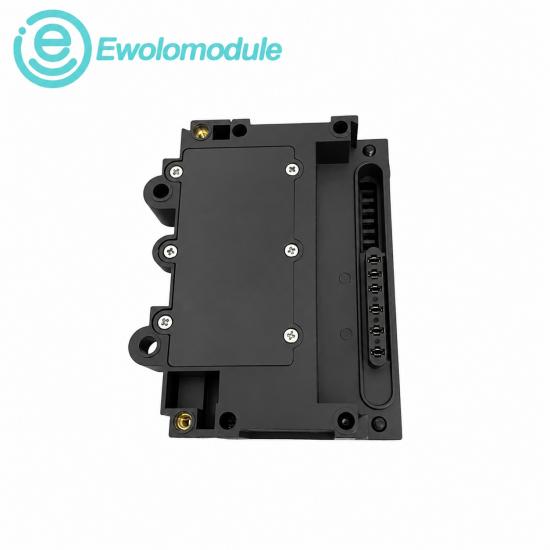

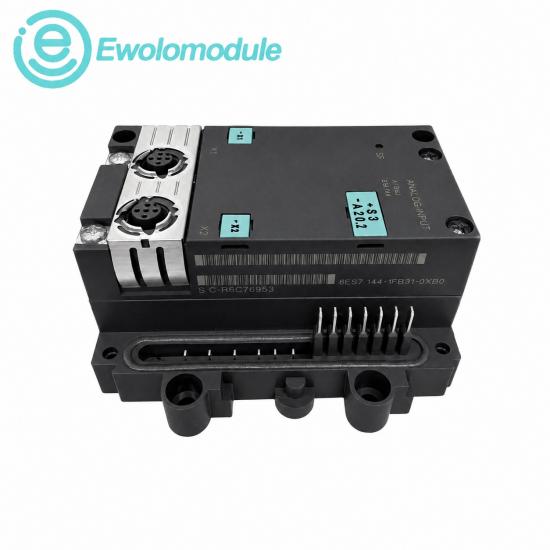

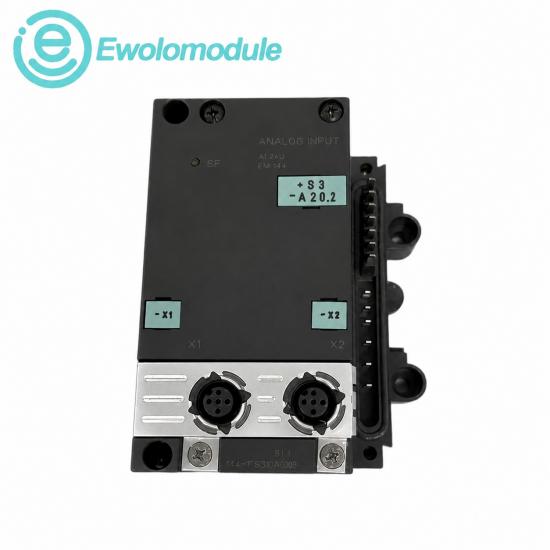

6ES7144-1FB31-0XB0SIMATIC ET 200X EM 144 AI 2 x U Expansion Module

Distributed voltage-signal acquisition close to machines and field devices.

Product series

SIMATIC ET 200X

Condition

New Original

Warranty

One year

In stock

Official data sourcesSiemens ET 200X Manual · Section 7.21.9

Specifications

Engineering record

Official technical data

Input channels	2 voltage inputs
Input range	±10 V
Resolution	12 bits plus sign
Input resistance	100 kΩ
Signal cable	Shielded; up to 30 m
Current draw	40 mA max. from L+
Power loss	0.9 W typical
Isolation	Non-isolated

Product description

The expansion module converts voltage measurements for an ET 200X station and provides configurable diagnostic functions.

Field connection

M12 connections suit distributed installations.

Diagnostics

A red SF indicator identifies group faults.

Signal conversion

Configurable integration supports interference rejection.

Positioning

Analog acquisition within modular ET 200X distributed I/O.

Suffix meaning

1FB31-0XB0 identifies the AI 2 x U voltage-input version; current-input versions use other article numbers.

System connection

Connect to the ET 200X backplane. Seal unused sockets with M12 caps to retain the specified enclosure protection.

Recommand

Application & sourcing index

Machine sensing

Acquisition of analog sensor signals.

Distributed I/O

Local collection of field measurements.

Plant monitoring

Transfer of measured process values.

Installed systems

Exact-module maintenance and replacement.

SiemensSIMATIC HMI references		Weidmülleru-remote I/O references
6AV6642-0DC01-1AX1	6AV6642-0DA01-1AX1	UR20-FBC-EC	UR20-FBC-EIP
6AV6643-0CB01-1AX1	6AV6643-0DB01-1AX1	UR20-FBC-EIP-V2	UR20-FBC-MOD-TCP
6AV6643-0CD01-1AX1	6AV6643-0DD01-1AX1	UR20-FBC-PN-IRT-V2	UR20-FBC-PB-DP-V2
6AV6644-0AA01-2AX0	6AV6644-0BA01-2AX1	UR20-16DI-P	UR20-8DI-P-2W
6AV6644-0AB01-2AX0	6AV6644-0AC01-2AX1	UR20-16DO-P	UR20-8DO-P
6AV2124-1GC01-0AX0	6AV2124-0JC01-0AX0	UR20-4RO-CO-255	UR20-4RO-SSR-255
6AV2124-1JC01-0AX0	6AV2124-0MC01-0AX0	UR20-4AI-UI-16	UR20-4AI-UI-16-DIAG
6AV2124-1MC01-0AX0	6AV2124-0QC02-0AX0	UR20-4AO-UI-16	UR20-4AO-UI-16-DIAG
6AV2124-1QC02-0AX0	6AV2124-0UC02-0AX0	UR20-4AI-RTD-DIAG	UR20-4AI-TC-DIAG
6AV2124-0XC02-0AX0	6AV2124-0GC01-0AX0	UR20-PF-I	UR20-PF-O

Reference models are not a statement of direct interchangeability.
