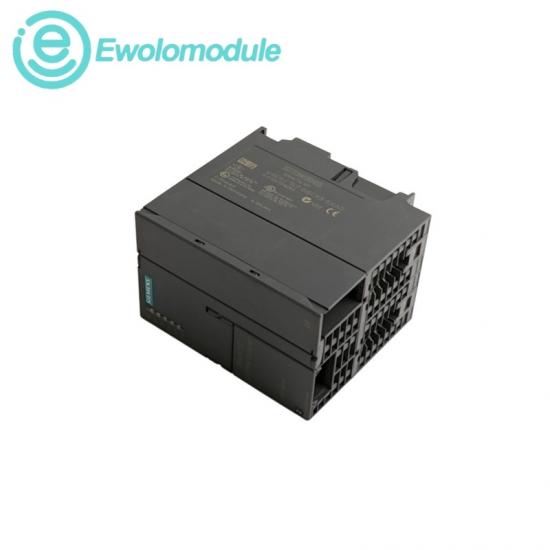

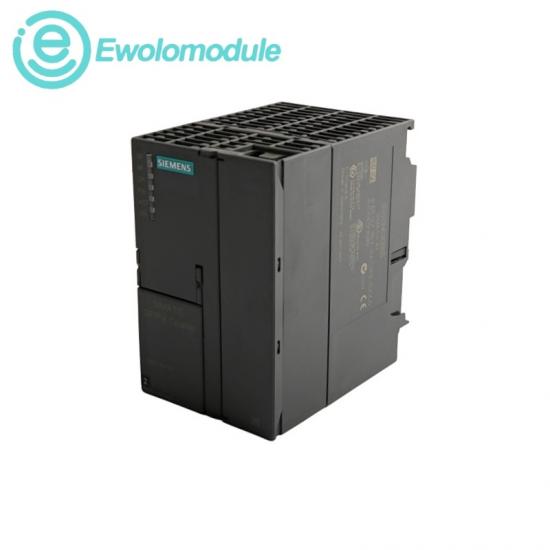

SiemensSIMATIC DP / DP/PA Coupler

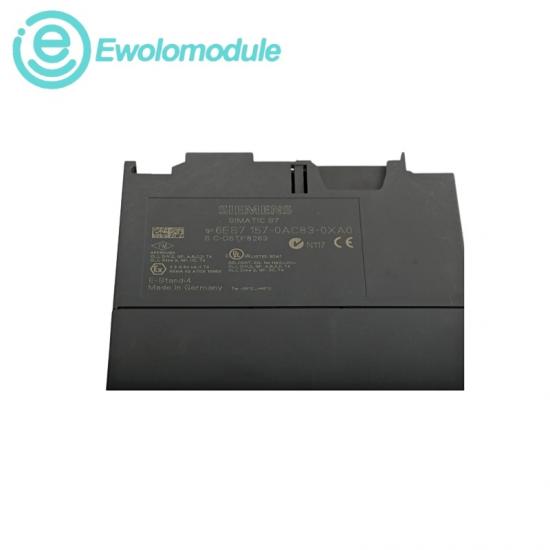

6ES7157-0AC83-0XA0SIMATIC DP DP/PA Coupler FDC 157-0

A fieldbus coupling component for integrating process instrumentation into the plant automation network.

ConditionNew Original

WarrantyOne year

In stock3

Official data sourceSiemens DP/PA Coupler manual · section 14.3

Specifications02

Technical profile

OFFICIAL TECHNICAL DATA

PROFIBUS DP rate45.45 kbit/s	PROFIBUS PA rate31.25 kbit/s
Rated supply24 V DC; permitted 20.4–28.8 V	PA output voltage31 V DC ±1 V
PA output current1 A	Maximum supply current2.3 A at 24 V DC
PA device countUp to 31, within the current budget	Maximum power loss13.4 W

Product description

The FDC 157-0 couples the DP and PA transmission systems and powers the downstream PA segment. Device selection must respect the total available segment current.

Product positioning

PROFIBUS PA instrumentation outside hazardous areas.

Suffix identity

The 0AC83 article identifies FDC 157-0; it must not be confused with the separate Ex [i] coupler version.

System connection

Connect PROFIBUS DP to a PA segment. Ring or coupler redundancy requires the associated Siemens bus modules and system arrangement.

Fieldbus integration

Links process devices to the DP control system.

Segment supply

Provides power for the connected PA devices.

Diagnostic support

Front indicators support bus and module diagnosis.
