SIEMENS · PRODUCT DETAILS

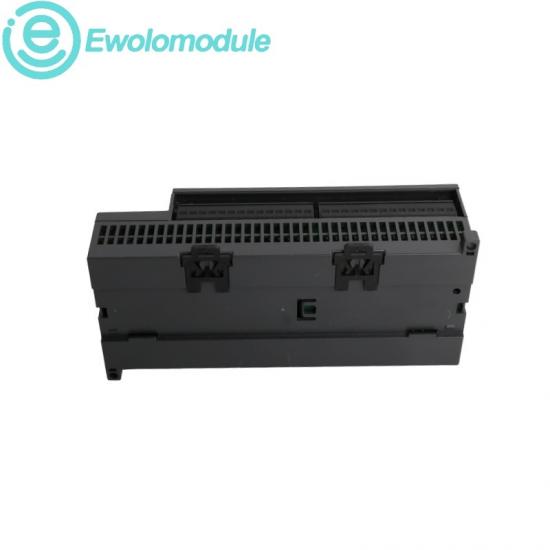

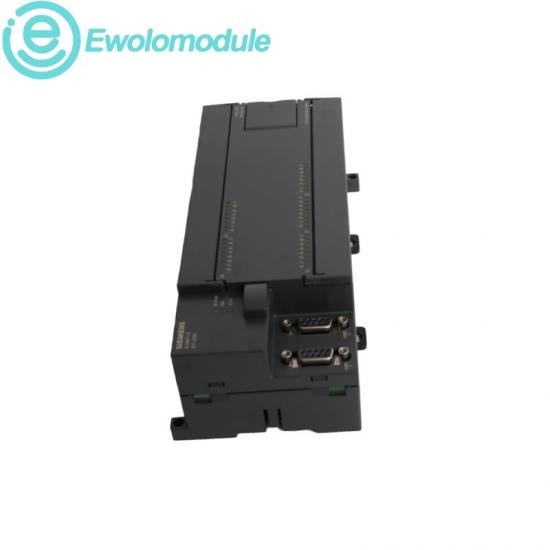

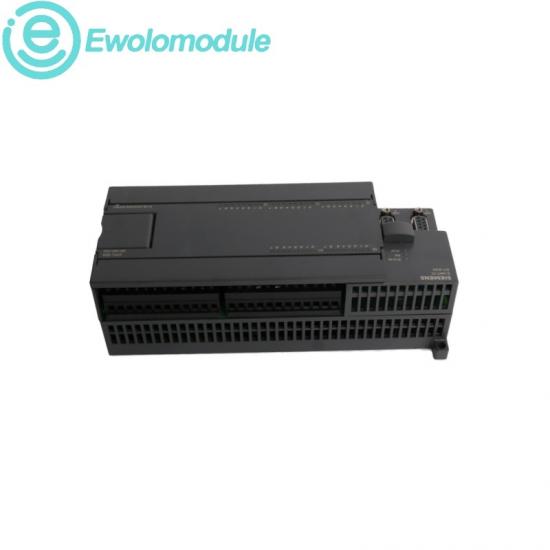

6ES7216-2AD23-0XB8

SIMATIC S7-200 CN CPU 226 Compact CPU

PRODUCT IDENTITY

A 24 V DC compact CPU with 24 digital inputs, 16 transistor outputs, 24 KB program memory, 10 KB data memory and two integrated RS-485 interfaces.

☎ +86 17359287459

✉ sales9@apterpower.com

RELATED MODELS

PERFORMANCE · ENVIRONMENT

Compact control performance and operating limits

PERFORMANCE & EFFICIENCY

◆ 0.22 µs maximum processing time for bit operations

◆ Six 30 kHz high-speed counters and two 20 kHz pulse outputs

◆ Supports up to seven S7-22x expansion modules within the available current budget

ENVIRONMENTAL RATING

◆ IP20 enclosure rating for control-cabinet installation

◆ Operating range: 0 to 55 °C horizontal or 0 to 45 °C vertical mounting

◆ Relative humidity: 5% to 95% in accordance with IEC 1131-2 class 2

OFFICIAL TECHNICAL DATA

Supply voltage 24 V DC	Digital inputs 24	Digital outputs 16 transistor	Program / data memory 24 KB / 10 KB
Communication interfaces 2×RS-485	PPI / MPI rate Up to 187.5 kbit/s	Expansion modules Up to 7	Power loss 11 W

BRAND CHARACTERISTICS · APPLICATION AREAS

System continuity and industrial deployment

BRAND CHARACTERISTICS

◆ Integrated CPU, digital I/O and communication in one compact device

◆ Broad S7-200 installed base supports legacy-machine continuity

◆ LAD, FBD and STL programming options support established service workflows

APPLICATION AREAS

◆ Compact packaging and material-handling machines

◆ Legacy production-line maintenance and capacity expansion

◆ Standalone sequencing, counting and positioning tasks
