PRODUCT DETAILS

SIEMENS

ARTICLE NUMBER

6ES7222-1BF22-0XA0

DIGITAL OUTPUT EXPANSION

OFFICIAL PRODUCT NAME

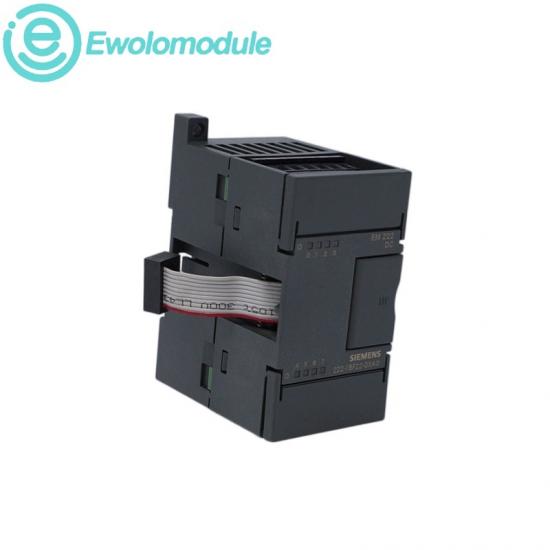

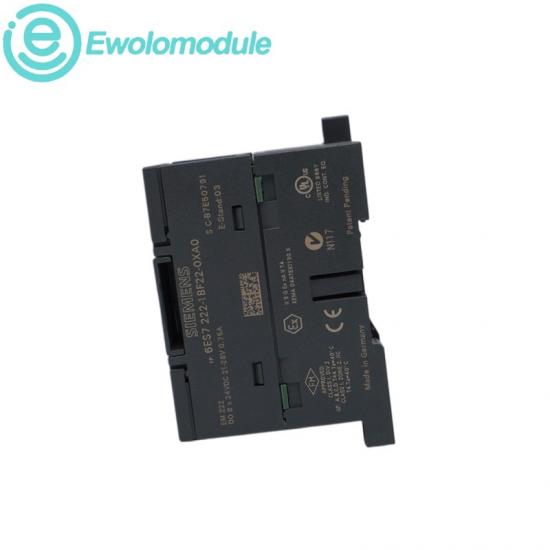

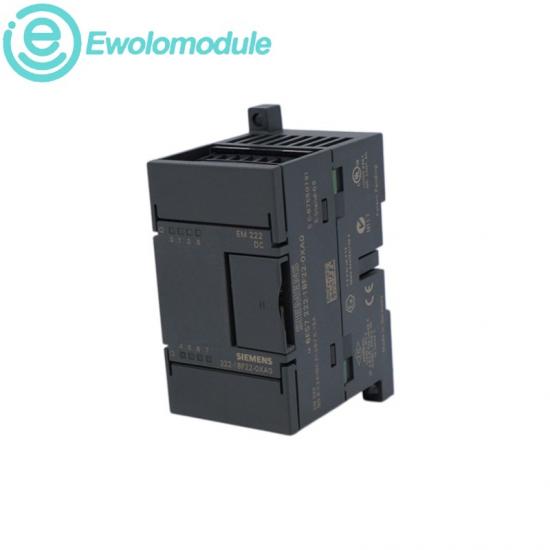

SIMATIC S7-200 Digital Output Module

Compact output expansion hardware for adding discrete actuator control to installed S7-200 automation systems and validated service replacements.

WARRANTY

One year

AVAILABILITY

In stock

TEL+86 17359287459

EMAILsales9@apterpower.com

TECHNICAL DATA

DIGITAL OUTPUTS8

LOAD VOLTAGE24 V DC

OUTPUT CURRENT0.75 A rated

POWER LOSS2 W typical

DIAGNOSTICS & PROTECTION

INSTALLATION & UPGRADE

EXTERNAL PROTECTIONProvide external short-circuit protection as specified for the connected load circuit.

01Remove load power and document the original terminal assignment.

GROUP ISOLATIONOutput channels are isolated in groups to separate field potentials.

02Install the module only with a compatible S7-22X CPU configuration.

LOAD CHECKConfirm inductive and lamp loads remain within the Siemens switching limits.

03Reconnect plug-in I/O terminals and verify group commons.

STATUS TESTVerify every commanded state before returning the machine to operation.

04Update hardware configuration and perform a controlled output test.

PRODUCT POSITIONING

BRAND CHARACTERISTICS

APPLICATION FIELDS

◆ Siemens S7-200 expansion architecture supports compact retrofit work.

◆ Discrete actuator control on legacy S7-200 machines.

◆ Plug-in field terminals simplify replacement and recommissioning.

◆ Solenoids, contactors and indicators in compact panels.

◆ Grouped electrical isolation supports organized control wiring.

◆ Maintenance replacement for validated EM 222 installations.

◆ Official data supports load, cable and protection checks.

◆ OEM equipment requiring additional transistor outputs.
