SIEMENS

ARTICLE NUMBER

6ES7222-1BH32-0XB0

PRODUCT DETAILS

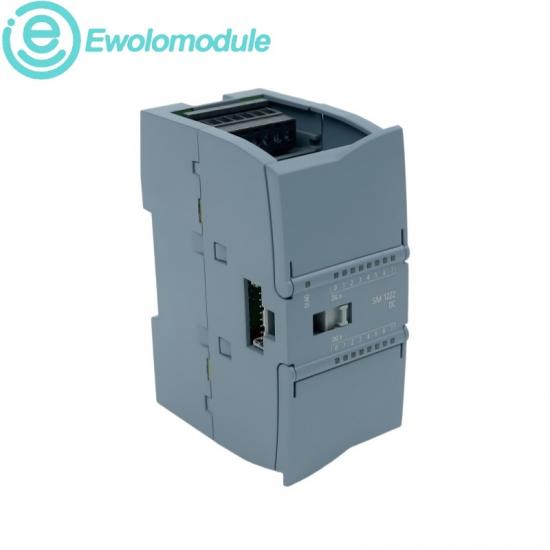

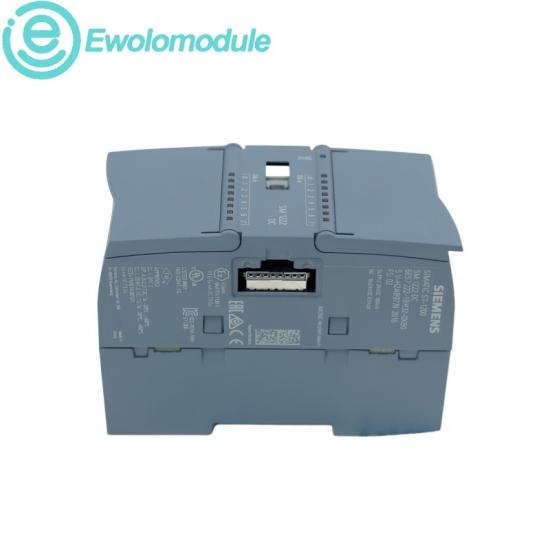

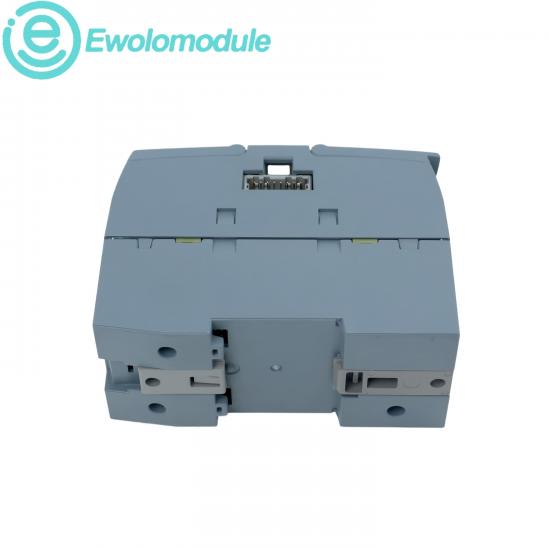

SIMATIC S7-1200 SM 1222 16 DO 24 V DC/0.5 A Digital Output Module

A 16-channel 24 V DC transistor output module rated at 0.5 A per output for compact S7-1200 automation systems.

WARRANTY

One year

AVAILABILITY

In stock

TEL	+86 17359287459

sales9@apterpower.com

PERFORMANCE & APPLICATIONSS7-1200 TRANSISTOR OUTPUT MODULE

Digital outputs16 transistor	Rated voltage24 V DC	Output current0.5 A	Power loss2.5 W typical
Backplane current140 mA maximum	Switch-on delay50 µs maximum	Switch-off delay200 µs maximum	ProtectionIP20

PERFORMANCE & EFFICIENCY	APPLICATION SCENARIOS
◆ Fast transistor switching supports responsive discrete control.	◆ Solenoid valves, indicator lamps and small DC contactors.
◆ Sixteen outputs expand compact S7-1200 stations efficiently.	◆ Packaging, assembly and material-handling machines.
◆ Status LEDs and diagnostic alarm support commissioning checks.	◆ Compact OEM control panels using SIMATIC S7-1200.
◆ Electrical isolation separates output channels from the backplane bus.	◆ Installed station expansion and lifecycle replacement.

SIEMENS VALUE & INDUSTRY FIT

BRAND CHARACTERISTICS	APPLICATION FIELDS
◆ Siemens SM 1222 modules integrate directly with S7-1200 hardware.	◆ Factory automation and machine control.
◆ Order coding identifies channel count, voltage and output technology.	◆ Conveyors, robotics peripherals and packaging lines.
◆ TIA Portal supports standardized configuration and diagnostics.	◆ Building utilities and pump skids.
◆ Official current and temperature limits guide load planning.	◆ S7-1200 maintenance and spare-module inventories.
