6ES7222-1HF32-0XB0
|
PRODUCT DETAILS

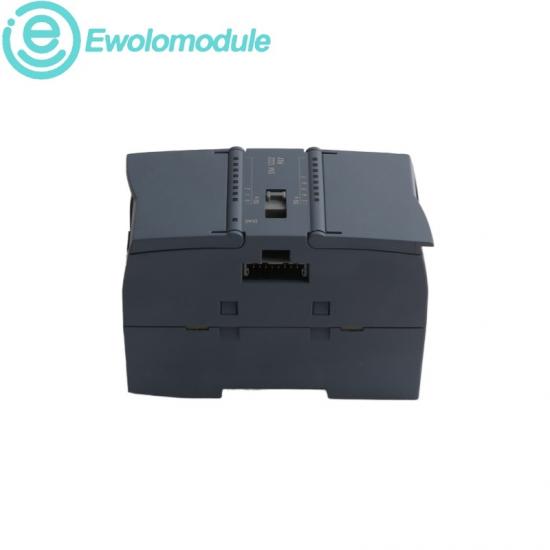

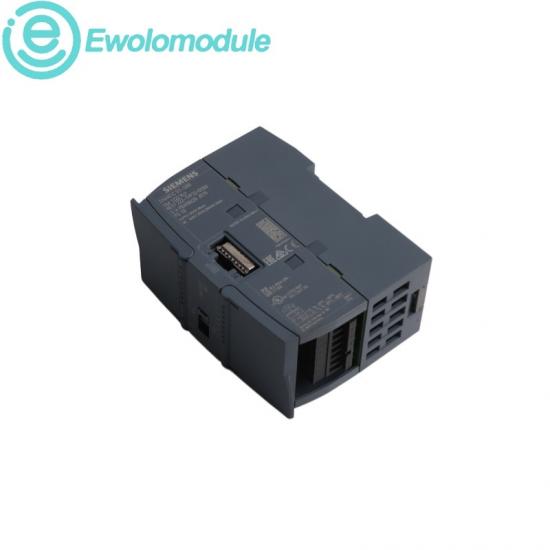

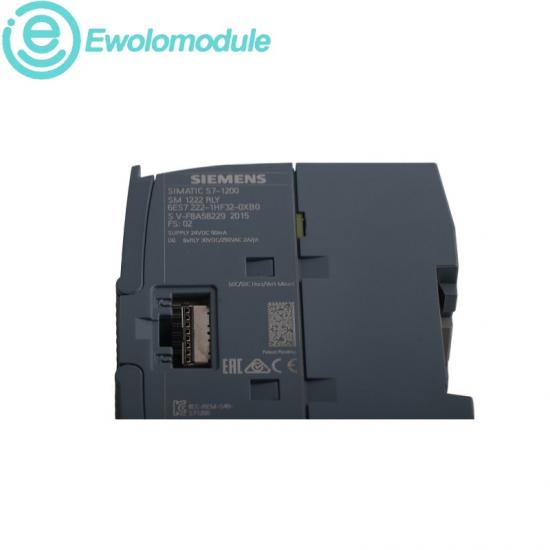

SIMATIC S7-1200 SM 1222 8 DO Relay 2 A Digital Output Module
An eight-channel SM 1222 relay output module rated at 2 A for switching AC and DC loads in SIMATIC S7-1200 systems. |
||||||||
|
|
| Digital outputs8 relay | Rated current2 A per output | DC load range5 to 30 V DC | AC load range5 to 250 V AC |
| Power loss4.5 W typical | Supply range20.4 to 28.8 V DC | Output delay10 ms maximum | ProtectionIP20 |
| PERFORMANCE & EFFICIENCY | APPLICATION SCENARIOS |
|---|---|
| ◆ Eight relay contacts switch both AC and DC industrial loads. | ◆ Contactors, solenoids, lamps and auxiliary relays. |
| ◆ Two-channel relay groups support structured load distribution. | ◆ Packaging, conveying and machine-control panels. |
| ◆ Status indication and diagnostic alarm aid commissioning. | ◆ Mixed-voltage load switching in compact S7-1200 stations. |
| ◆ Specified relay endurance supports planned maintenance intervals. | ◆ Lifecycle expansion and replacement of installed SM 1222 modules. |
| BRAND CHARACTERISTICS | APPLICATION FIELDS |
|---|---|
| ◆ Siemens SM 1222 integrates directly with S7-1200 controllers. | ◆ OEM machines and factory automation. |
| ◆ Order coding distinguishes relay technology and channel count. | ◆ Material handling and packaging systems. |
| ◆ TIA Portal engineering supports consistent configuration. | ◆ Building utilities and pump control. |
| ◆ Official voltage, current and environmental ratings guide application design. | ◆ S7-1200 service and spare-part programs. |
