SIEMENS · PRODUCT DETAILS

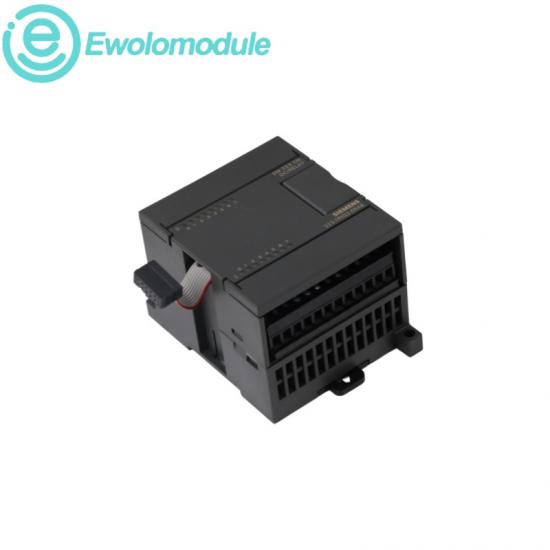

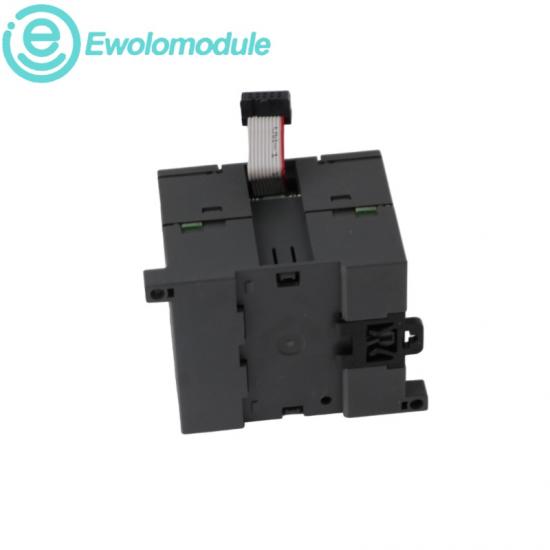

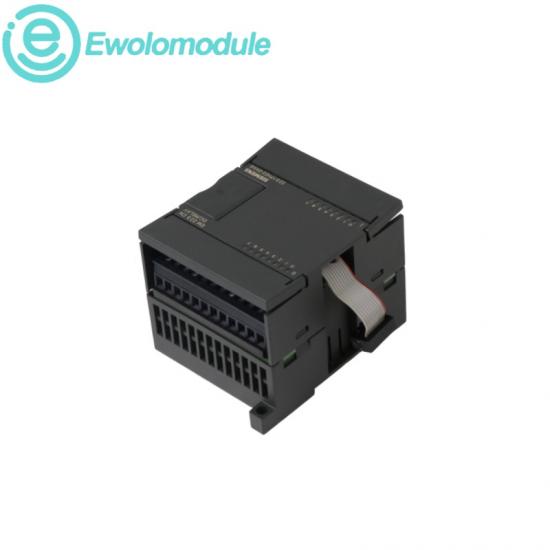

6ES7223-1PH22-0XA8

SIMATIC S7-200 CN EM 223 8DI/8DO Relay Digital I/O Module

Condition
New Original

Warranty
One year

PRODUCT SNAPSHOT

The EM 223 combines eight 24 V DC sinking/sourcing inputs with eight relay outputs in one compact expansion module for compatible SIMATIC S7-22X CPUs. Each relay output is rated at 2 A for switching a wide range of field loads.

It supports I/O expansion, replacement and lifecycle maintenance in installed S7-200 CN systems where the complete article number, load category and controller compatibility are verified before commissioning.

DIRECT CONTACT

☎ +86 17359287459 ✉ sales9@apterpower.com

Explore Siemens →

PERFORMANCE & EFFICIENCY · APPLICATION SCENARIOS

Performance & efficiency

◆ Eight inputs and eight relay outputs combine signal acquisition and load switching in one expansion position.

◆ Sinking/sourcing 24 V DC inputs support flexible sensor wiring.

◆ Relay contacts provide 2 A per output for compatible field loads.

◆ Typical power loss is 3 W for predictable cabinet thermal planning.

Application scenarios

◆ Sensor input and relay-actuator expansion on compact S7-200 CN machines.

◆ Retrofit replacement in installed S7-22X controller stations.

◆ Packaging, conveying and utility equipment requiring mixed digital I/O.

◆ Maintenance stock for legacy automation systems using this exact order code.

OFFICIAL TECHNICAL DATA

Product type EM 223 digital I/O module	Digital inputs 8	Input voltage 24 V DC	Input design Sinking / sourcing
Digital outputs 8 relay outputs	Output rating 2 A per channel	Power loss 3 W typical	Compatible controller S7-22X CPU

Technical data is based on the Siemens product record and Siemens data sheet for 6ES7223-1PH22-0XA8.

Siemens brand characteristics

01 · Integrated engineering across SIMATIC controllers and distributed I/O.

02 · Documented module behavior supports structured service and commissioning.

03 · Defined product lifecycles help maintenance teams plan replacement stock.

04 · Broad automation coverage supports consistent system architectures.

Application fields

01 · Compact manufacturing and assembly machinery.

02 · Packaging, conveying and material-handling systems.

03 · Pumps, utilities and small process-control skids.

04 · Legacy S7-200 CN maintenance and modernization projects.
