ARTICLE NUMBER

6ES7231-0HF22-0XA0

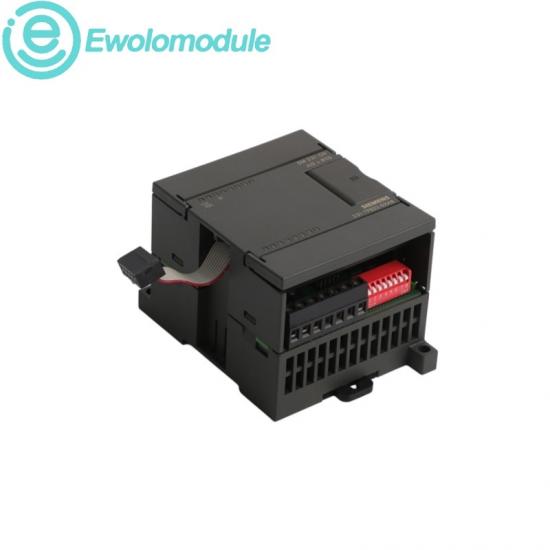

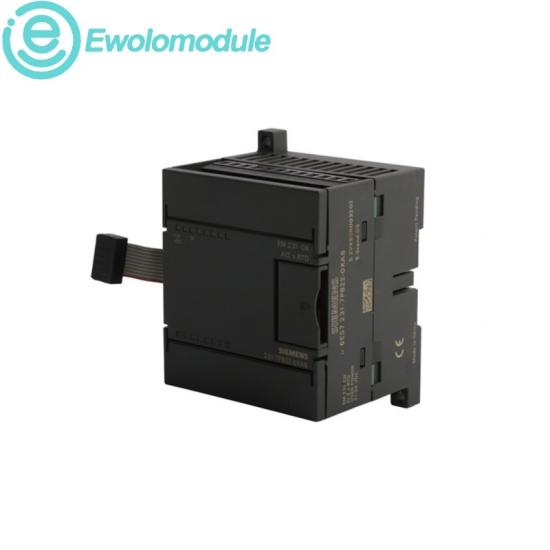

SIMATIC S7-200 EM 231 8 AI Analog Input Module

WARRANTYOne year	AVAILABILITYIn stock
TEL+86 17359287459	EMAILsales9@apterpower.com

DIAGNOSTICS, PROTECTION & INSTALLATION

Multi-channel analog acquisition for established S7-200 stations

Built for installed SIMATIC S7-200 control systems, this expansion module consolidates process feedback signals in one serviceable I/O point. It supports disciplined retrofit work where channel assignments, shielding and engineering records must remain consistent through maintenance and lifecycle replacement.

Analog inputs8	Voltage range0 to 10 V DC	Current inputsUp to 2 channels	Current range0 to 20 mA
Resolution12/11 bit	CPU systemSIMATIC S7-22X	Signal typesVoltage and current	Module typeEM 231

DIAGNOSTICS & PROTECTION

INSTALLATION & UPGRADES

◆ The EXTF indicator supports rapid recognition of module-level faults.

◆ Defined electrical limits help protect analog measurement circuits during service.

◆ Separate range planning helps prevent incompatible sensor signals from being applied.

◆ Confirm the complete order code and S7-22X hardware compatibility.

◆ Retain existing channel assignments and shielding practice during replacement.

◆ Power down the station and verify configured input ranges before recommissioning.

BRAND CHARACTERISTICS

APPLICATION FIELDS

◆ Siemens S7-200 modular I/O supports structured expansion of compact controllers.

◆ Order-code-specific variants support exact lifecycle replacement.

◆ Documented signal ranges help standardize analog measurement design.

◆ Official engineering data supports commissioning and maintenance records.

◆ Process-variable acquisition in compact machine controls.

◆ Voltage and current feedback in utilities and auxiliary systems.

◆ Retrofit maintenance of installed S7-200 stations.

◆ Spare-parts programs for legacy automation equipment.
