SIEMENS · PRODUCT DETAILS

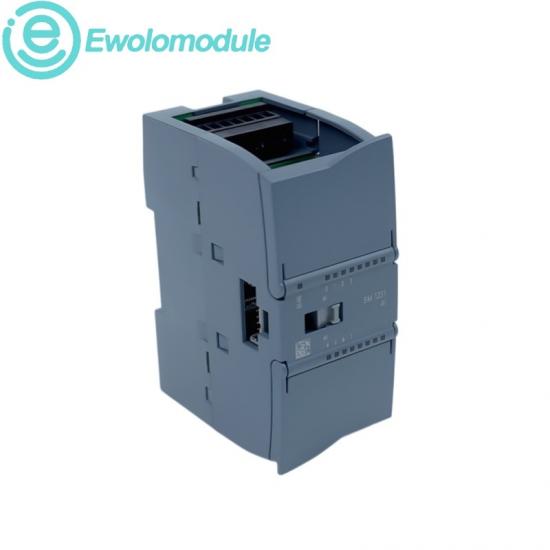

Siemens 6ES7231-5ND32-0XB0 SIMATIC S7-1200 SM 1231 4AI Analog Input Module

Four-channel analog acquisition for compatible S7-1200 controller stations.

SIMATIC S7-1200

CONDITIONNew Original

WARRANTYOne year

☎ +86 17359287459 ✉ sales9@apterpower.com

Product snapshot

SM 1231 adds four voltage or current measuring channels to a compatible SIMATIC S7-1200 controller.

It suits control panels that need additional process measurements without changing the controller platform.

System fit

Field transmitters deliver analog values to the controller through the module.

Match signal ranges and wiring to the approved machine project before commissioning.

Explore other Siemens products →

Operation, protection & changeover

Practical checks for SIMATIC S7-1200 installations

◇ Diagnostics & Protection

Compare each configured input range with the connected transmitter and check the controller diagnostic view.

Protect signal wiring from interference and check field power before replacing a module.

↗ Installation & Upgrades

Confirm module position, supported CPU firmware and project configuration before installation.

Retain channel scaling and alarm limits when transferring the application to replacement hardware.

Official technical data

Analog inputs4	Signal typesVoltage or current	Resolution15 bit + sign
Supply24 V DC	Width45 mm	Height100 mm
Depth75 mm	Voltage ranges±10/5/2.5/1.25 V	Current ranges0–20 mA or 4–20 mA

Source: Siemens technical data for 6ES7231-5ND32-0XB0. Only exact-order-code facts are listed.

Platform context & applications

Siemens brand characteristics

Siemens SIMATIC I/O families provide documented station types for structured industrial automation projects.

SIMATIC S7-1200 provides analog input module functionality within the documented SIMATIC platform.

Maintaining the exact order code and project configuration supports orderly service and replacement.

Application fields

Analog process measurement in S7-1200 control panels.

Machine upgrades requiring additional transmitter inputs.

Maintenance of existing SM 1231 configurations.
