SIEMENS · PRODUCT DETAILS

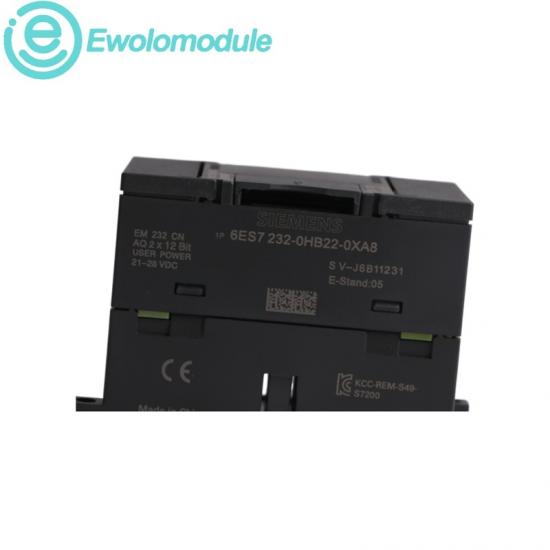

6ES7232-0HB22-0XA8

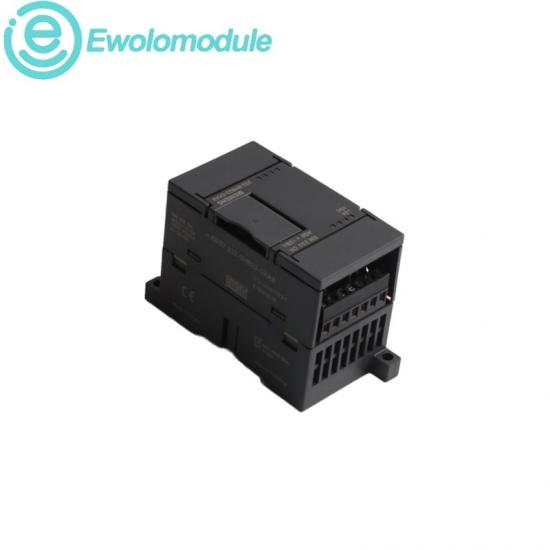

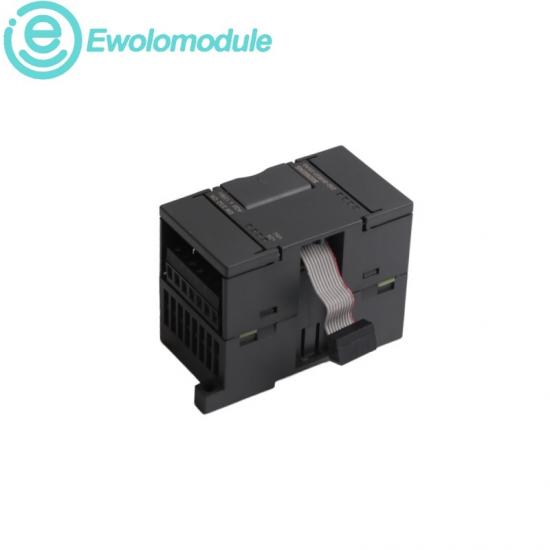

SIMATIC S7-200 CN EM 232 2AO Analog Output Module

CONDITION

New Original

WARRANTY

One year

PRODUCT SNAPSHOT

This EM 232 expansion module adds two analog voltage outputs to a compatible SIMATIC S7-200 CN controller. The two channels generate ±10 V DC signals with 12-bit conversion for analog actuator commands.

The module is intended only for S7-22X CPUs and carries CE approval for the CN product variant. Confirm the CPU type, signal range and complete article number before installation.

DIRECT CONTACT

☎ +86 17359287459 ✉ sales9@apterpower.com

Explore Siemens →

OPERATING ENVIRONMENT · MONITORING & CONTROL

Two-channel analog command generation for SIMATIC S7-200 CN controllers

◈ Operating environment

Mount beside a compatible S7-22X CPU in the S7-200 CN expansion chain.

Wire the two analog outputs for the documented ±10 V DC signal range.

Use screened signal wiring and suitable grounding for analog circuits.

Follow S7-200 CN installation and ambient requirements during commissioning.

◎ Monitoring & control

Two analog outputs provide independent voltage commands.

Twelve-bit conversion supports repeatable analog setpoint generation.

The CPU writes output words through the S7-200 expansion bus.

Commissioning checks should validate scaling, polarity and connected load.

OFFICIAL TECHNICAL DATA

Product type EM 232 analog output	Analog outputs 2	Output range ±10 V DC	Converter resolution 12 bit
Compatible CPU S7-22X only	Power loss 2 W typical	Approval CE	Product dimensions 4.6x8x6.2cm

Official Siemens data for article number 6ES7232-0HB22-0XA8.
