SIEMENS · PRODUCT DETAILS

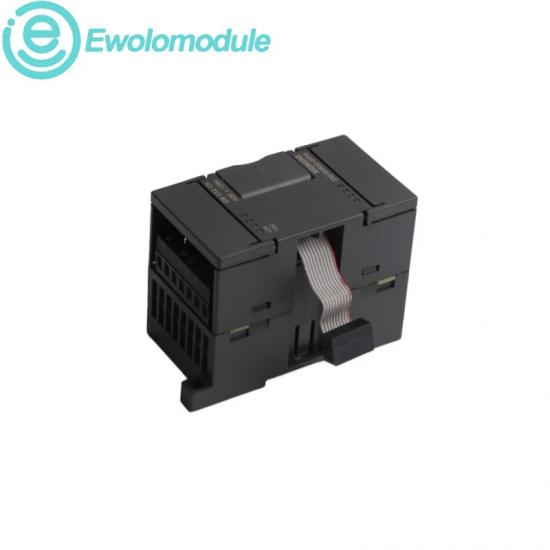

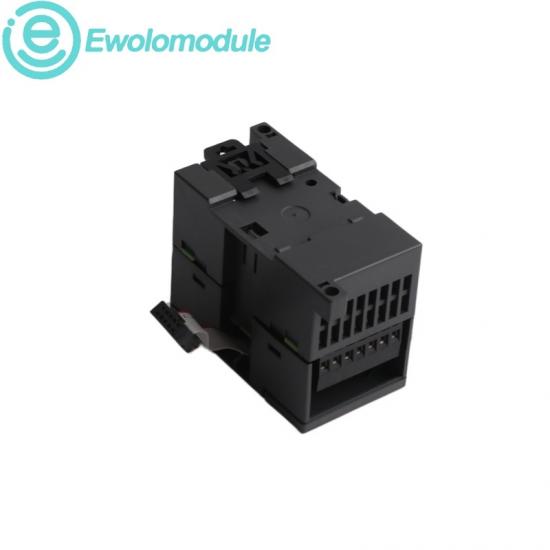

Siemens 6ES7232-0HD22-0XA0 SIMATIC S7-200 EM 232 4 AO Analog Output Module

CONDITIONNew Original

WARRANTYOne year

PRODUCT SNAPSHOT

SIMATIC S7-200 EM 232 provides four analog outputs for voltage or current control signals in compatible S7-22X systems.

Its 12-bit voltage and 11-bit current conversion supports compact machine control and installed-base replacement. Confirm output range, load and wiring before commissioning.

DIRECT CONTACT

☎ +86 17359287459 ✉ sales9@apterpower.com

Explore other Siemens products →

CERTIFICATION, STANDARDS & SYSTEM FIT

CERTIFICATIONS & STANDARDS

Siemens technical data identifies EU conformity, EAC, China RoHS and approvals for selected hazardous-location and maritime applications. The exact order code is a cancelled spare part and should be commissioned to the applicable S7-200 documentation.

COMPATIBILITY & INTEROPERABILITY

Designed only for compatible SIMATIC S7-22X CPUs through the S7-200 expansion bus. The module supplies four analog output channels and uses fixed I/O terminals.

OFFICIAL TECHNICAL DATA

Analog outputs4 channels	Voltage range±10 V	Current range0–20 mA
Resolution12 bit voltage	Current resolution11 bit	Voltage settling100 µs
Current settling2 ms	Voltage load≥5 kΩ	Current load≤0.5 kΩ

BRAND VALUE & APPLICATION MAP

Siemens brand characteristics

◆ Documented modular expansion for compact SIMATIC control systems.

◆ Order-code-specific engineering supports controlled lifecycle replacement.

◆ Defined voltage and current ranges simplify standardized signal planning.

◆ Long-established automation ecosystem supports maintenance continuity.

Application fields

◆ Analog command signals for valves, drives and positioners.

◆ Compact machine control using S7-200 expansion I/O.

◆ Retrofit and service of installed S7-22X stations.

◆ Spare-parts support for packaging and material handling.

RECOMMENDED MODELS

SIEMENS

6ES7231-0HC22-0XA0	6ES7231-0HF22-0XA0	6ES7232-0HB22-0XA0	6ES7232-0HD22-0XA0
6ES7221-1BF22-0XA0	6ES7221-1BH22-0XA0	6ES7222-1BF22-0XA0	6ES7222-1HF22-0XA0
6ES7223-1BF22-0XA0	6ES7223-1BH22-0XA0	6ES7223-1PH22-0XA0	6ES7223-1PL22-0XA0
6ES7231-7PB22-0XA0	6ES7231-7PD22-0XA0	6ES7231-7PC22-0XA0	6ES7231-7PF22-0XA0
6ES7253-1AA22-0XA0	6ES7277-0AA22-0XA0	6ES7290-6AA20-0XA0	6ES7291-8GF23-0XA0

BECKHOFF

EL1008	EL1809	EL2008	EL2809
EL3002	EL3004	EL3062	EL3064
EL3102	EL3112	EL3152	EL3162
EL4002	EL4004	EL4102	EL4132
EL5001	EL5101	EK1100	EK1122

QUOTE & ORDER REVIEW

QUOTESend the complete article number, required quantity and destination country so price and availability can be checked accurately.

ORDER REVIEWConfirm hardware revision, electrical range, condition and delivery requirements before the order is finalized.
