SIEMENS · PRODUCT DETAILS

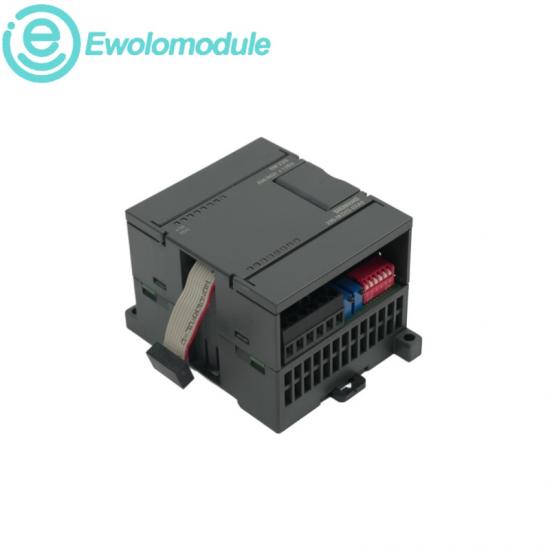

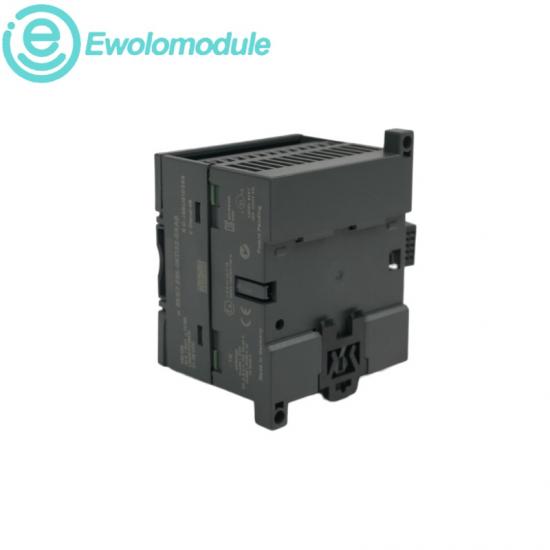

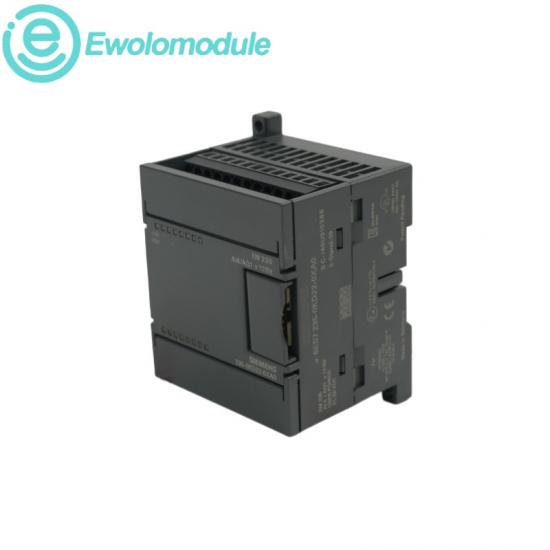

6ES7235-0KD22-0XA0

SIMATIC S7-200 EM 235 4AI/1AO Analog I/O Module

Condition
New Original

Warranty
One year

PRODUCT SNAPSHOT

The EM 235 combines four analog input channels and one analog output channel in a single S7-200 expansion position. It supports bipolar voltage measurement and generation for compact control applications.

Designed for installed S7-22X systems, it provides a 12-bit converter and fast analog signal handling for replacement, maintenance and small-machine expansion.

DIRECT CONTACT

☎ +86 17359287459 ✉ sales9@apterpower.com

Explore Siemens →

PERFORMANCE & EFFICIENCY · APPLICATION SCENARIOS

Performance & efficiency

◆ Four analog inputs and one analog output consolidate mixed analog expansion in one module.

◆ Bipolar ±10 V DC input and output operation supports common industrial signal tasks.

◆ A 12-bit converter provides repeatable engineering values for compact control loops.

◆ A 100 µs voltage-output settling time supports responsive setpoint changes.

Application scenarios

◆ Analog sensor acquisition in compact S7-200 machines.

◆ Speed, pressure and flow setpoint generation for field devices.

◆ Retrofit replacement in installed S7-22X controller stations.

◆ Maintenance stock for legacy process and machine-control systems.

OFFICIAL TECHNICAL DATA

Product type EM 235 analog I/O module	Analog inputs 4	Analog outputs 1	Signal range ±10 V DC
Converter 12 bit	Voltage settling time 100 µs	Compatible controller S7-22X CPU	Potential separation No

Technical data is based on Siemens documentation for 6ES7235-0KD22-0XA0.

Siemens brand characteristics

◆ Integrated engineering across SIMATIC controllers and distributed I/O.

◆ Documented module behavior supports structured service and commissioning.

◆ Defined product lifecycles help maintenance teams plan replacement stock.

◆ Broad automation coverage supports consistent system architectures.

Application fields

◆ Compact machine analog expansion.

◆ Pump and utility control panels.

◆ Packaging and material-handling equipment.

◆ Legacy S7-200 service projects.
