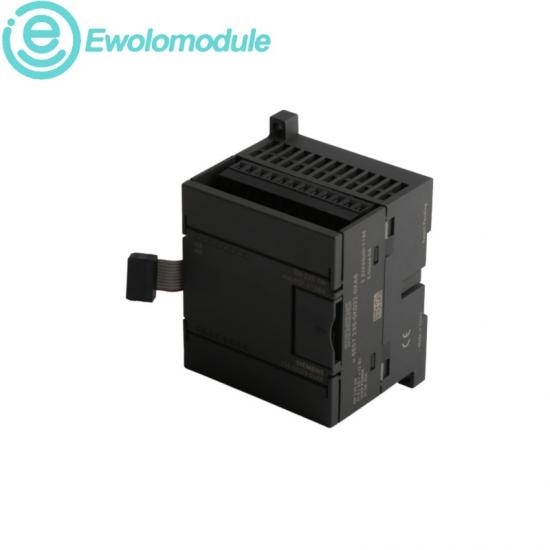

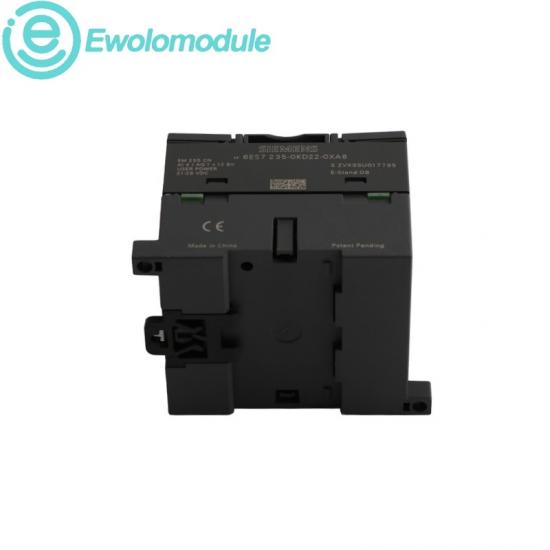

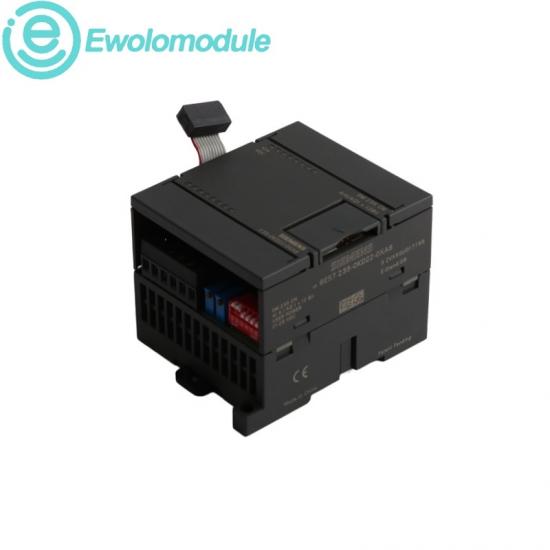

Siemens 6ES7235-0KD22-0XA8 SIMATIC S7-200 EM 235 Analog Combination Module

CONDITIONNew Original

WARRANTYOne year

PRODUCT SNAPSHOT

SIMATIC S7-200 EM 235 combines four analog inputs and one analog output for voltage or current signals.

Its 12-bit-class conversion supports compact measurement, control and S7-22X lifecycle replacement. Retain the documented wiring and configured ranges during commissioning.

DIRECT CONTACT

☎ +86 17359287459 ✉ sales9@apterpower.com

Explore other Siemens products →

CERTIFICATION, STANDARDS & SYSTEM FIT

CERTIFICATIONS & STANDARDS

The exact 6ES7 235-0KD22-0XA8 article is identified in Siemens’ EU Declaration of Conformity for the SIMATIC S7-200 second-generation family. Installation and operation must follow the applicable Siemens system manual, declared voltage limits and local electrical requirements.

COMPATIBILITY & INTEROPERABILITY

Designed as an EM 235 expansion module for compatible SIMATIC S7-22X CPUs, it exchanges analog process values through the S7-200 expansion system. The CPU reserves two analog output points for this module, and the hardware uses a fixed connector arrangement rather than a removable connector.

OFFICIAL TECHNICAL DATA

Analog inputs4 differential channels	Analog output1 channel	Conversion12-bit class
Input impedance≥2 MΩ voltage / 250 Ω current	Output ranges±10 V / 0–20 mA	24 V supply20.4–28.8 V DC
Power dissipation2 W	+5 V demand30 mA	+24 V demand60 mA at 20 mA output

BRAND VALUE & APPLICATION MAP

Siemens brand characteristics

◆ Documented modular expansion for compact SIMATIC control systems.

◆ Order-code-specific engineering supports controlled lifecycle replacement.

◆ Defined voltage and current ranges simplify standardized signal planning.

◆ Long-established automation ecosystem supports maintenance continuity.

Application fields

◆ Analog acquisition for compact machines and auxiliary skids.

◆ Closed-loop voltage or current control in legacy equipment.

◆ Retrofit and service of installed SIMATIC S7-200 stations.

◆ Spare-parts support for utilities, packaging and material handling.
