ARTICLE NUMBER

6ES7288-3AR04-0AA0

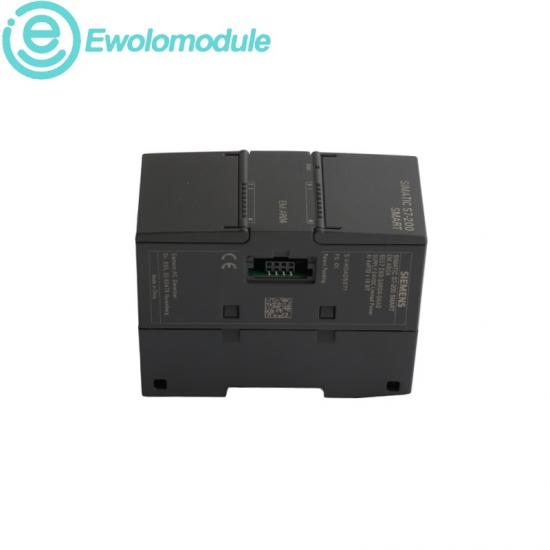

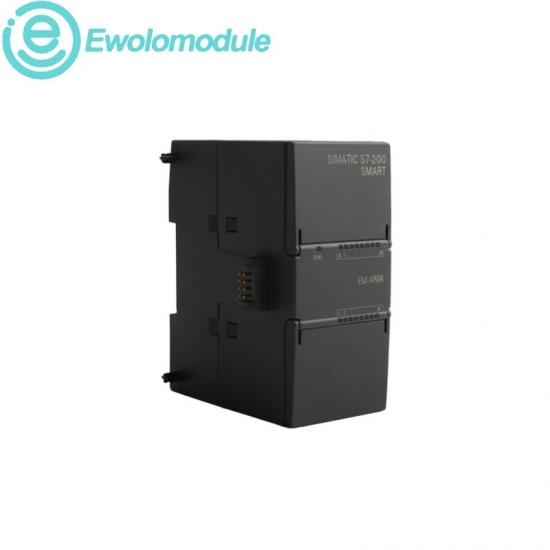

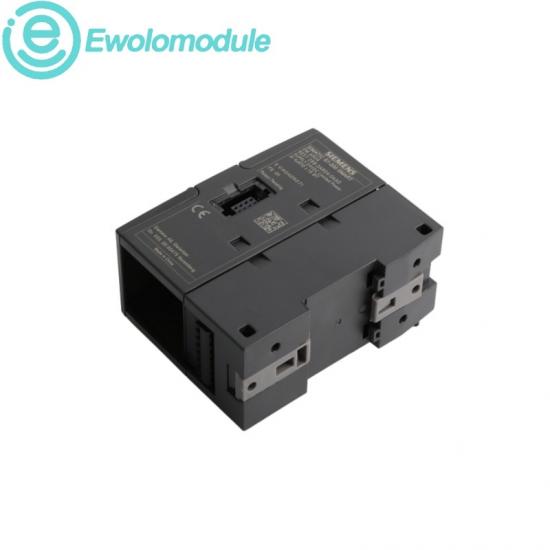

SIMATIC S7-200 SMART EM AR04 4 AI RTD Module

WARRANTYOne year	AVAILABILITYIn stock
TEL+86 17359287459	EMAILsales9@apterpower.com

DIAGNOSTICS, PROTECTION & INSTALLATION

Temperature measurement expansion for S7-200 SMART systems

The EM AR04 adds dedicated resistance-temperature acquisition to a compact S7-200 SMART controller. It is suited to engineering work that requires consistent sensor wiring, channel documentation and controlled commissioning without mixing temperature signals with general-purpose analog channels.

RTD inputs4	Resolution16 bit	Sensor wiring2-/3-/4-wire	Rated supply24 V DC
Module typeEM AR04	SystemS7-200 SMART	Signal classResistance sensors	InstallationExpansion module

DIAGNOSTICS & PROTECTION

INSTALLATION & UPGRADES

◆ Channel status and controller diagnostics support structured troubleshooting.

◆ Correct sensor-type selection helps prevent invalid temperature values.

◆ Wiring checks help identify open or incorrectly terminated sensor circuits.

◆ Match each channel to the documented RTD type and wiring method.

◆ Keep sensor cables separated from switching and motor conductors.

◆ Verify project configuration and scaling before process release.

BRAND CHARACTERISTICS

APPLICATION FIELDS

◆ Siemens S7-200 SMART provides modular expansion for compact automation.

◆ Dedicated signal modules support clearly separated measurement tasks.

◆ Order-code identification supports consistent service replacement.

◆ Official system documentation guides wiring and commissioning.

◆ RTD temperature acquisition in machine control panels.

◆ Thermal monitoring for utilities and process skids.

◆ Equipment retrofits using S7-200 SMART controllers.

◆ Multi-point temperature supervision in compact systems.
