01 / PRODUCT DETAILS

SIMATIC S7-300 / COMPACT CPU

6ES7314-6BH04-0AB0

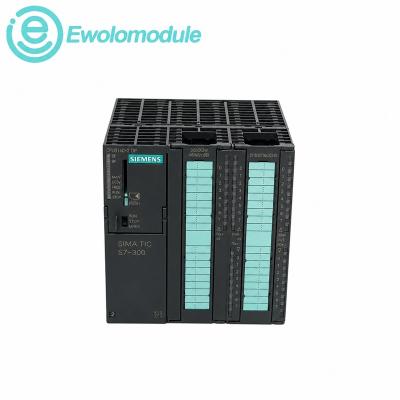

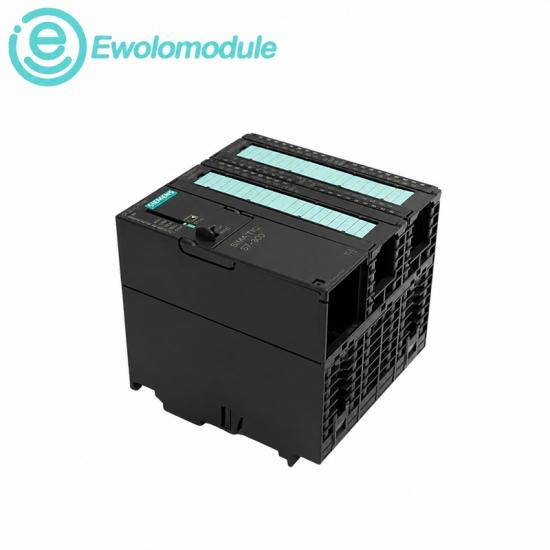

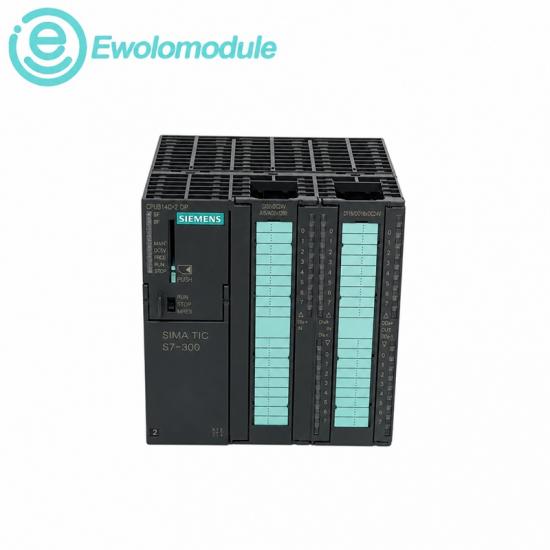

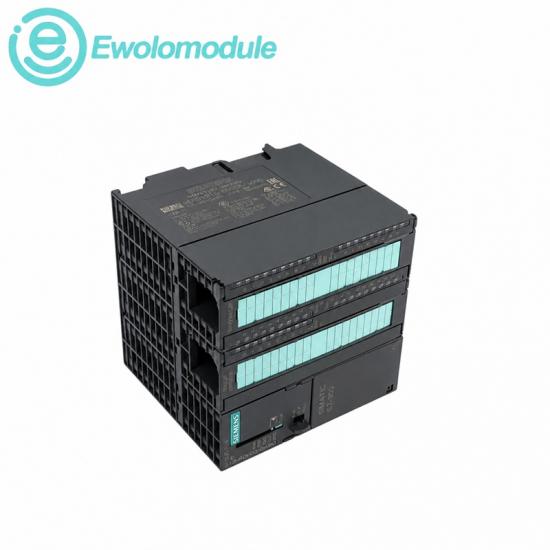

SIMATIC S7-300 CPU 314C-2 PTP Compact CPU

Compact S7-300 CPU with integrated digital and analog I/O, four high-speed counters and an RS485 point-to-point interface.

BRAND

Siemens

PRODUCT SERIES

SIMATIC S7-300 CPU 314C-2 PtP

OFFICIAL NAME

CPU 314C-2 PTP Compact CPU

OFFICIAL SOURCE

Siemens Industry Mall

CONDITION

New Original

WARRANTY

One year

IN STOCK

1 pcs

02 / SYSTEM POSITION

Compact PLC control with integrated point-to-point communication

PRODUCT DESCRIPTION

Integrated control, I/O and serial communication

The CPU 314C-2 PTP combines controller processing, onboard digital and analog signals, high-speed counters and an integrated RS485 interface.

PRODUCT TYPE

CPU 314C-2 PTP

ORDERING CODE

The complete Siemens article number identifies this CPU 314C-2 PTP hardware version; front connectors and Micro Memory Card are required separately.

OFFICIAL TECHNICAL DATA

Verified operating profile

Article number

6ES7314-6BH04-0AB0

CPU type

SCALANCE CPU 314C-2 PTP

Work memory

192 KB

Digital I/O

24 DI / 16 DO

Analog I/O

4 AI / 2 AO plus 1 Pt100

High-speed counters

4 at up to 60 kHz

Integrated interfaces

MPI and RS485

Power supply

24 V DC

Front connectors

2 × 40-pole required

Load memory

Micro Memory Card required

SYSTEM CONNECTION

STEP 7 engineering

MPI / RS485

CPU 314C-2 PTP

Integrated I/O

Compact automation

CPU and onboard I/O in one module.

Serial communication

Integrated RS485 point-to-point interface.

Fast counting

Four counters operating up to 60 kHz.

03A / APPLICATION

Compact machine automation

Integrated I/O

Local digital and analog machine signals.

Serial devices

RS485 point-to-point communication.

High-speed functions

Counting and measurement up to 60 kHz.
