SIEMENS · PRODUCT DETAILS

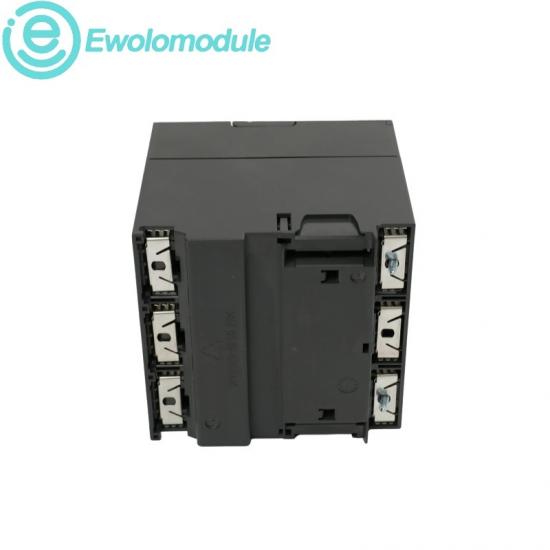

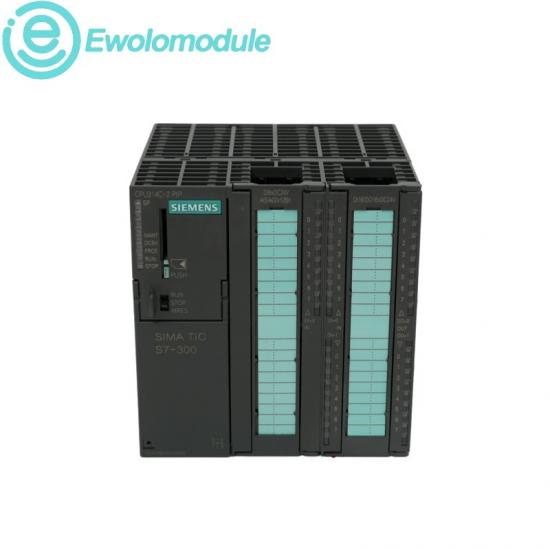

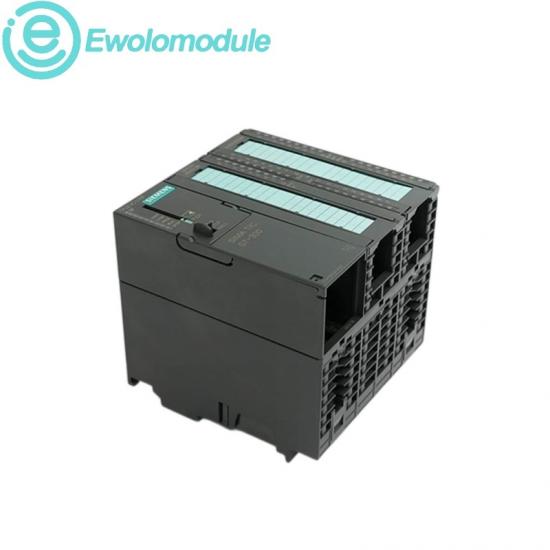

SIMATIC S7-300 CPU 314C-2 DP Compact CPU

6ES7314-6CF01-0AB0

PRODUCT IDENTITY

A SIMATIC S7-300 compact CPU with MPI and integrated DP, 24 digital inputs, 16 digital outputs, 4 analog inputs, 2 analog outputs, one Pt100 input and four 60 kHz counters.

☎ +86 17359287459

✉ sales9@apterpower.com

RELATED MODELS

DIAGNOSTICS · INSTALLATION

Compact-CPU diagnostics and orderly replacement

DIAGNOSTICS & PROTECTION

◆ Read the diagnostic buffer and interface status before hardware changes

◆ Separate integrated digital, analog and counter-channel checks

◆ Confirm 24 V DC supply and DP network condition before restart

INSTALLATION & UPGRADE

◆ Back up the STEP 7 hardware configuration and user program

◆ Fit the required 40-pole front connector and Micro Memory Card

◆ Restore MPI/DP settings and test integrated I/O in controlled stages

OFFICIAL TECHNICAL DATA

Product typeCPU 314C-2 DP	Work memory48 KB	Digital inputs24	Digital outputs16
Analog inputs4 + 1 Pt100	Analog outputs2	Fast counters4 at 60 kHz	InterfaceIntegrated MPI/DP

Official data based on the Siemens SiePortal record for 6ES7314-6CF01-0AB0.

BRAND CHARACTERISTICS · APPLICATION AREAS

Automation reliability and practical system fit

BRAND CHARACTERISTICS

◆ Compact SIMATIC CPU with integrated mixed I/O

◆ MPI and PROFIBUS DP support for distributed automation

◆ Unified STEP 7 engineering for control and diagnostics

APPLICATION AREAS

◆ Compact machine automation

◆ Mixed digital and analog process control

◆ S7-300 modernization and spare-part replacement
