PRODUCT DOSSIER

315

SIEMENS · SIMATIC S7-300 · VERIFIED IDENTITY

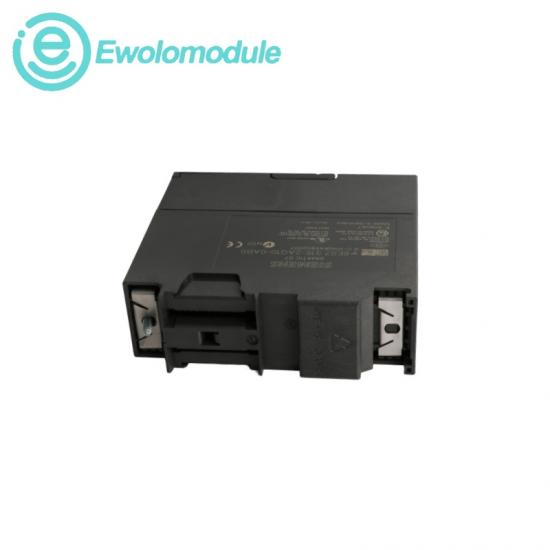

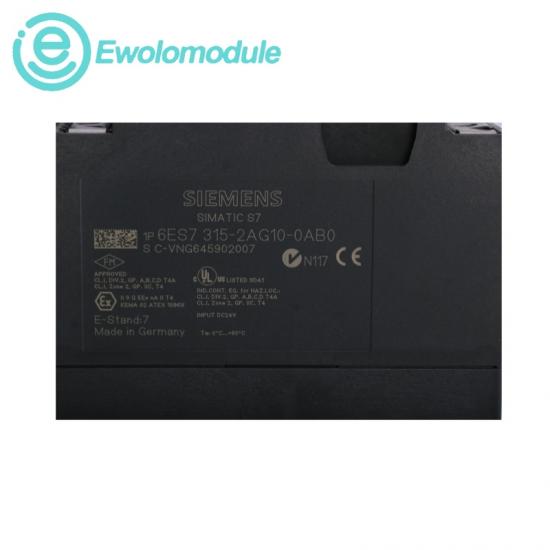

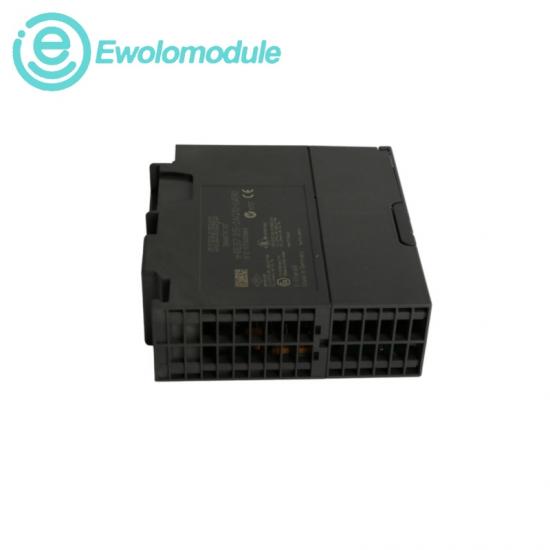

6ES7315-2AG10-0AB0

CPU 315-2 DP Central Processing Unit

A central controller used to coordinate established S7-300 machine and production-cell automation.

BRANDSiemens

PRODUCT SERIES SIMATIC S7-300

OFFICIAL NAMECPU 315-2 DP Central Processing Unit

PRODUCT ROLEPLC CPU with MPI and PROFIBUS DP

CONDITIONNew
Original

WARRANTYOne year

IN STOCK1

OFFICIAL DATA SOURCE◆Siemens SIMATIC S7-300 module data

SYSTEM POSITION

Distributed-control CPU for established S7-300 systems

PRODUCT DESCRIPTION

Coordinates cyclic machine logic while providing a dedicated second interface for PROFIBUS DP master or slave operation.

POSITIONINGCyclic PLC control with dedicated DP communication

ORDERING CODE6ES7315-2AG10-0AB0 · retain as one complete identifier

OFFICIAL TECHNICAL DATA · 08 SIGNAL POINTS

CPU DESIGNATIONCPU 315-2 DP

WORK MEMORY128 KB

RATED SUPPLY24 V DC

FIRST INTERFACEMPI/DP, up to 12 Mbit/s

CENTRAL NODECPU 315PLC → PROFIBUS DP

SECOND INTERFACEPROFIBUS DP master/slave

LOAD MEMORYSIMATIC Micro Memory Card required

MEMORY CONCEPTMMC-based retentive program storage

LIFECYCLE REFERENCESuccessor 6ES7315-2AH14-0AB0

SYSTEM CONNECTIONMPI/DP + PROFIBUS DP

Dual fieldbus roleUse the second port as DP master or DP slave.

Serviceable migrationPreserves established STEP 7 and S7-300 projects.

Separate load memoryProject storage is carried on a required MMC.

ORDERING NOTEThe 2AG10 hardware generation provides 128 KB work memory. Match the complete order number before replacing it with the later 2AH14 generation.

APPLICATION
CONSTELLATION

Where this product fits

Machine controlCyclic PLC tasks in established production equipment.

PROFIBUS cellsDistributed I/O and drive coordination over DP.

Line extensionsAdditional stations on existing S7-300 architectures.

Lifecycle sparesDocumented replacement for installed 2AG10 hardware.
