PRODUCT DETAILS SIEMENS

ARTICLE NUMBER

6ES7321-1BL00-0AA0

NEW ORIGINAL

PRODUCT IDENTITY

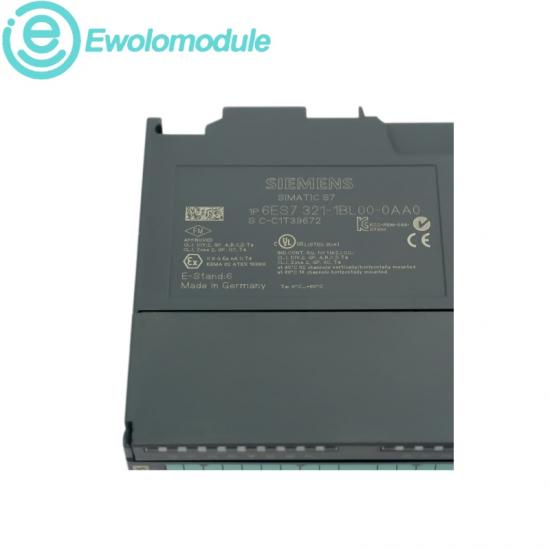

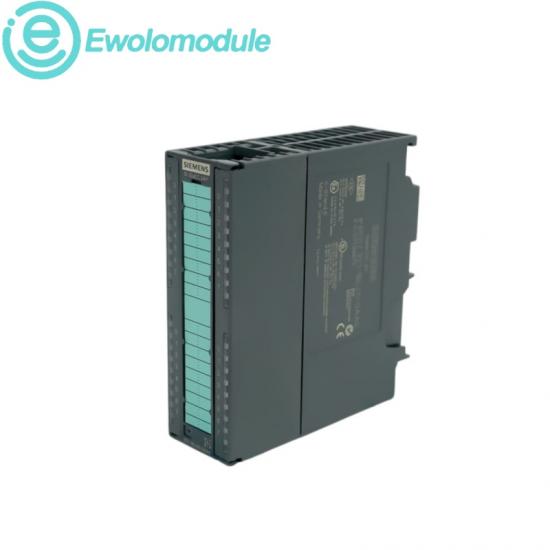

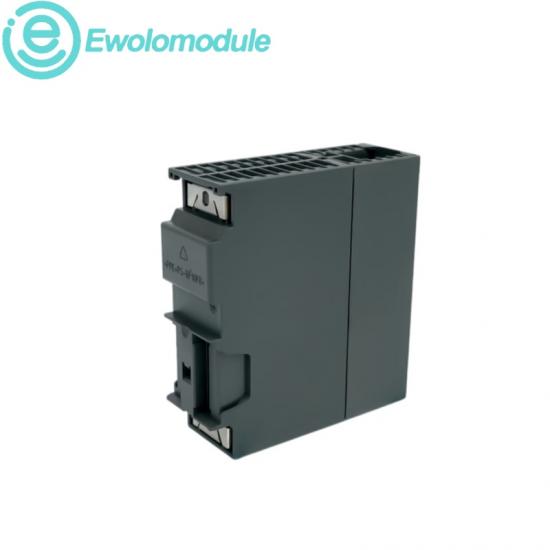

SIMATIC S7-300 Digital Input Module

Designed for high-density controller cabinets, this signal module consolidates field-status acquisition while retaining clear channel indication, grouped isolation and established S7-300 service practices.

WARRANTY

One year

AVAILABILITY

In stock

TEL

+86 17359287459

sales9@apterpower.com

TECHNICAL PROFILE FIRMWARE · CONFIGURATION

DIGITAL INPUTS 32	RATED INPUT 24 V DC	CHANNEL GROUP 16 channels	CONNECTOR 1 × 40-pole
INPUT DELAY 1.2–4.8 ms	TWO-WIRE SENSOR Supported	SHIELDED CABLE 1000 m max.	DIAGNOSTICS None

FIRMWARE & UPDATES

This signal module has no separately loadable user firmware; maintain the validated S7-300 station and STEP 7 project baseline.

Compare the installed hardware revision and exact order number with Siemens documentation before replacement.

Record the slot, address range and front-connector assignment before removing the existing module.

CONFIGURATION & PROGRAMMING

Select the matching SM 321 thirty-two-channel article number in the STEP 7 hardware configuration.

Assign the complete input byte range and preserve the grouped common wiring at the forty-pole front connector.

Verify all field states and channel LEDs during recommissioning; use program-level plausibility checks because the module provides no diagnostic alarms.

BRAND & APPLICATIONS

BRAND CHARACTERISTICS	APPLICATION FIELDS
◆ The S7-300 signal-module family supports modular expansion with well-defined slot and connector conventions.	◆ High-density switch and sensor acquisition in machine-control cabinets.
◆ High-density input packaging reduces cabinet footprint for large groups of 24 V DC sensors.	◆ Production lines, material handling and assembly systems using S7-300 controllers.
◆ Grouped optical isolation supports structured separation from the controller backplane.	◆ Utility and process panels requiring many 24 V DC status inputs.
◆ Siemens data sheets define the electrical, connector and addressing limits needed for exact replacement.	◆ Retrofit and spare-part work where the existing forty-pole wiring and address map must be retained.

RECOMMENDED MODELS

Siemens

6ES7321-1FF01-0AA0	6ES7322-1BH01-0AA0	6ES7132-6BF00-0CA0	6ES7122-1BB10-0AA0
6ES7288-2DR16-0AA0	6ES5463-4UA12	6ES7222-1HF22-0XA8	6ES7288-5AE01-0AA0
6ES7131-6BH00-0BA0	6ES7321-1BL00-0AA0	6ES7321-1BH02-0AA0	6ES7322-1BL00-0AA0
6ES7131-6BH01-0BA0	6ES7132-6BF01-0CA0	6ES7288-1ST60-0AA0	6ES7288-1SR60-0AA0
6ES7223-1BH22-0XA8	6ES7953-8LF31-0AA0	6ES7331-7KF02-0AB0	6ES7332-5HD01-0AB0

Weidmüller

UR20-FBC-PN-IRT-V2	UR20-FBC-PB-DP-V2	UR20-FBC-EIP	UR20-FBC-MOD-TCP
UR20-16DI-P	UR20-16DO-P	UR20-8DI-P-3W	UR20-8DO-P
UR20-4DI-P	UR20-4DO-P	UR20-4AI-UI-16	UR20-4AO-UI-16
UR20-4AI-RTD-DIAG	UR20-4AI-TC-DIAG	UR20-PF-I	UR20-PF-O
UR20-EBK	UR20-1COM-RS232-485-422	UR20-2CNT-100	UR20-4DI-4DO-P

QUOTE & SERVICE POLICY

01 · IDENTIFY
Send the complete article number and required quantity.

02 · VERIFY
Confirm the installed revision, voltage and connector.

03 · QUOTE
Request price, condition and available stock.

04 · DISPATCH
Confirm packing requirements and shipment details.

This website is not affiliated with, endorsed by, or authorized by any of the listed manufacturers or trademarks.

Ewolomodule is not an authorized distributor, dealer, or representative of the products displayed on this website.

All product names, trademarks, brands, and logos used on this website are the property of their respective owners.

The description, explanation, or sale of products with these names, trademarks, brands, and logos is for identification purposes only and is not intended to indicate any association with or authorization from any rights holder.
