SIEMENS · PRODUCT DETAILS

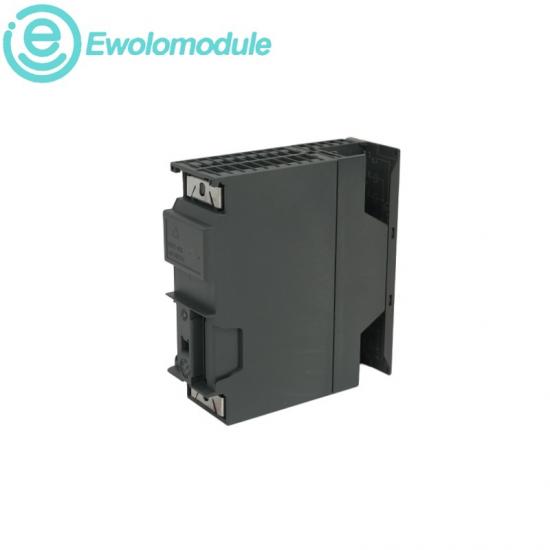

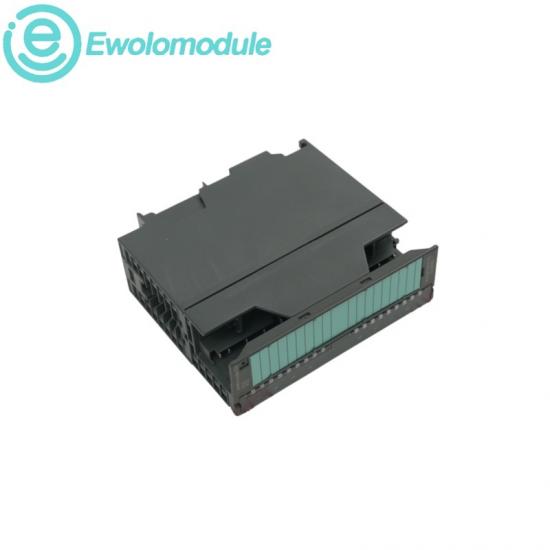

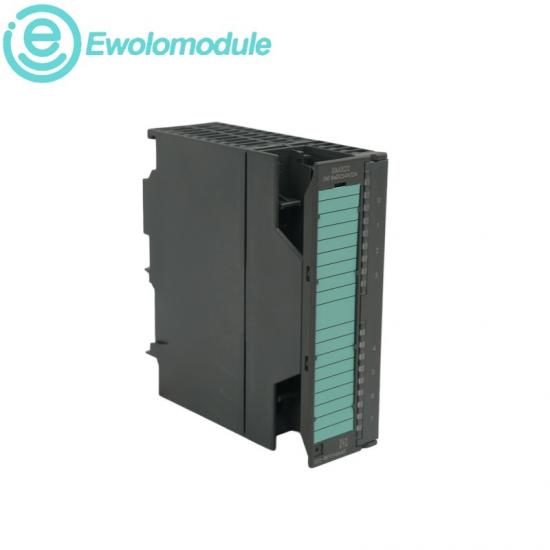

6ES7322-1BF01-0AA0

S7-300 SM 322 8DO 24 V DC/2 A

ORDER PROFILE

Condition
New Original

Warranty
One year

☎ +86 17359287459

✉ sales9@apterpower.com

PRODUCT SNAPSHOT

Eight isolated 24 V DC outputs provide higher-current switching for modular S7-300 machine and process-control systems.

The module uses a 20-pole front connection and is suited to maintenance, replacement and controlled expansion of installed stations.

Explore other Siemens →

02 · CERTIFICATION & COMPATIBILITY

Standards profile and system integration

✓ Certifications & Standards

Conformity, diagnostics and lifecycle

Electrical isolation

Isolated output channels

RoHS status

Compliant since 31 Mar 2008

Lifecycle

Phase-out announced

Product origin

Germany

⇄ Compatibility & Interoperability

System, interface and field integration

Compatible system

SIMATIC S7-300

System interface

S7-300 backplane bus

Front connection

1 x 20-pole connector

Load interface

24 V DC actuators

Official technical data

Digital outputs8

Rated load voltage24 V DC

Output current2 A per channel

Module familySM 322

Quantity unit1 piece

Product group2288

03 · APPLICATION & BRAND

Industrial integration and lifecycle service

◎ Application fields

Practical automation scenarios

Solenoid and contactor switching.

Machine-control output stations.

Process auxiliary equipment.

S7-300 replacement and service.

◆ Siemens brand characteristics

Engineering consistency and lifecycle support

Robust modular S7-300 construction.

Isolated outputs support reliable switching.

Documented connector assignment aids service.

Defined lifecycle supports spare planning.
