SIEMENS · PRODUCT DETAILS

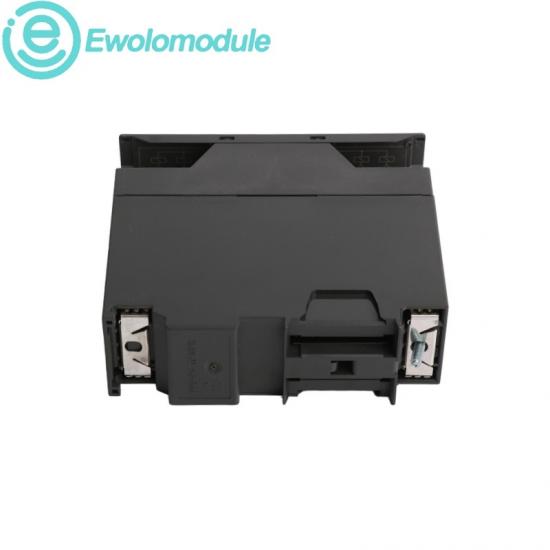

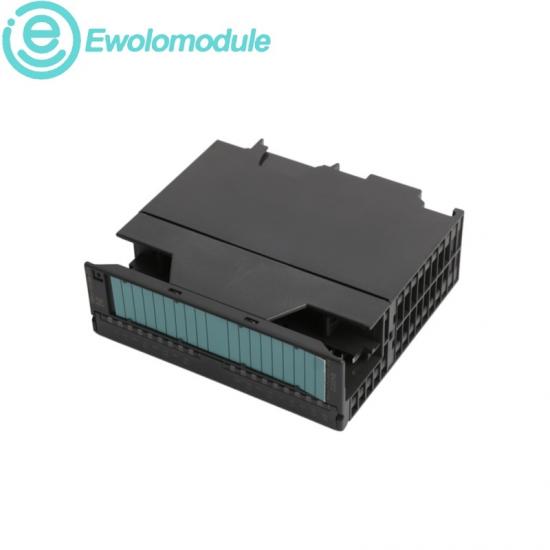

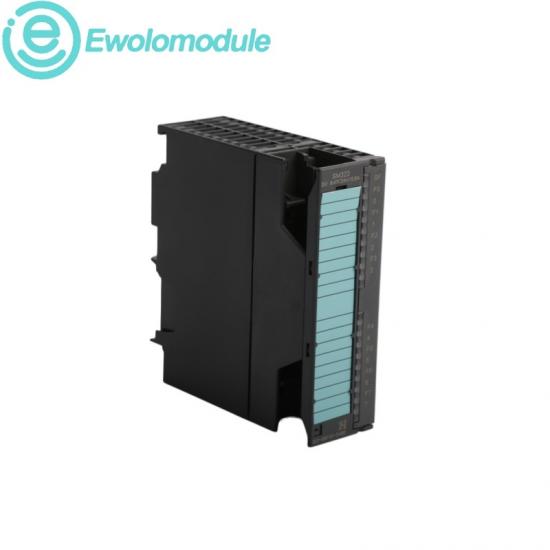

Siemens 6ES7322-8BF00-0AB0 S7-300 Digital Output Module

Diagnostic-capable digital output module for reliable 24 V DC actuator switching in SIMATIC S7-300 systems.

CONDITIONNew Original

WARRANTYOne year

☎ +86 17359287459 ✉ sales9@apterpower.com

SYSTEM POSITION

SIMATIC S7-300 · SM 322

Eight isolated 24 V DC outputs with channel diagnostics and a 20-pin front connector.

Product snapshot

The module switches eight 24 V DC loads at up to 0.5 A per output and provides electronic short-circuit protection for industrial actuator circuits.

Channel status and fault indication, diagnostic alarms and substitute-value behavior support structured fault handling and maintenance.

Explore other Siemens products →

OPERATING INSIGHT

Detailed product description

The SM 322 module converts S7-300 control commands into eight isolated digital outputs for solenoid valves, DC contactors and signal lamps. Each output is rated for 24 V DC and 0.5 A. Diagnostic functions include wire-break and short-circuit monitoring, with parameterizable alarms and substitute values.

◇ Operating environment

Install in a SIMATIC S7-300 rack or compatible ET 200M station with a 20-pin front connector. Use the documented 24 V DC load supply and observe the specified cable and current limits.

◎ Monitoring & control

The module provides a red group-error LED, green channel status LEDs and red channel-fault indication. Diagnostic information can be read by the controller and a diagnostic interrupt can be parameterized.

Official technical data

Outputs
8 digital outputs

Load rating
24 V DC, 0.5 A

Isolation
Group of 8

Connector
20-pin front connector

Short-circuit protection
Electronic

Diagnostics
Wire break and short circuit

Dimensions
4x12.5x12cm

Weight
0.21kg

BRAND & APPLICATION

Siemens brand characteristics

Siemens automation hardware uses coordinated controller, distributed I/O and engineering concepts across established industrial systems.

Documented order codes, module data and lifecycle paths support structured servicing and replacement planning.

Application fields

Solenoid-valve and contactor control in machinery.

Service and expansion of S7-300 or ET 200M stations.
