Process automation
Drive solenoid valves, relays, and contactors with channel diagnostics in PCS 7 remote I/O.
Tel : +86 17359287459
Email : sales9@apterpower.com
Tel : +86 17359287459
Email : sales9@apterpower.com

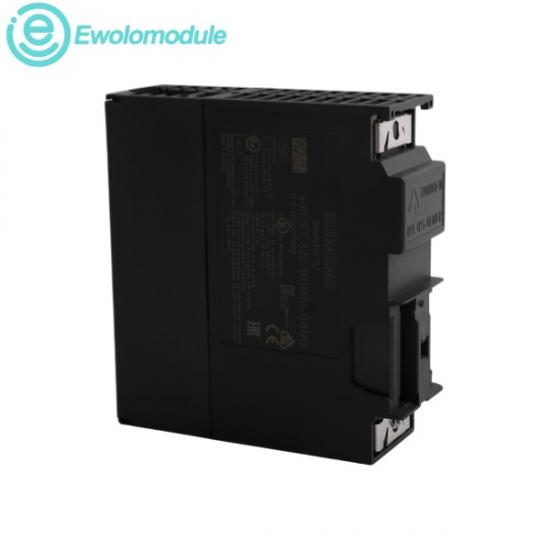

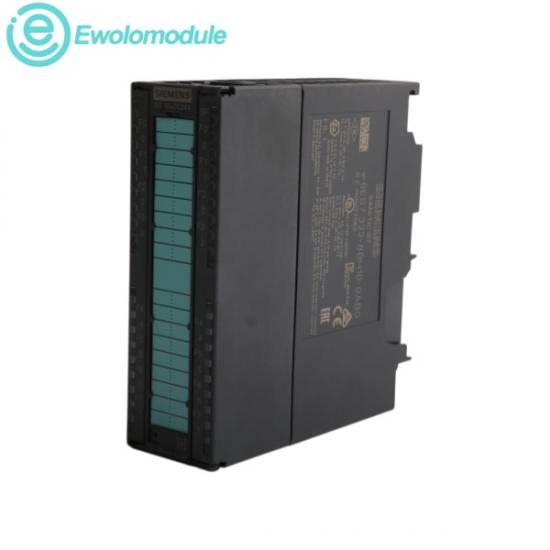

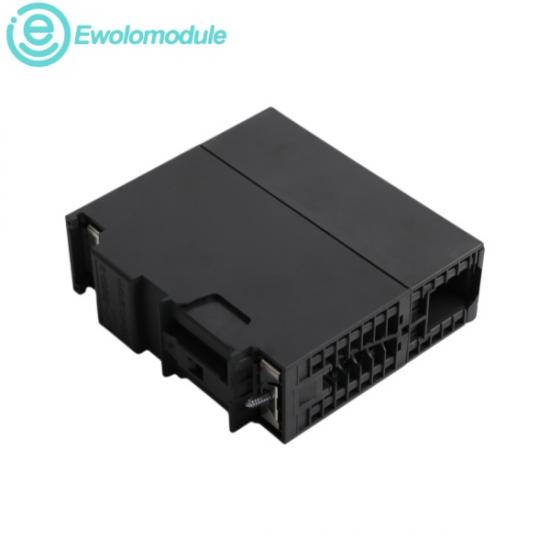

The Siemens 6ES7322-8BH10-0AB0 is a SIMATIC S7-300/PCS 7 SM 322 digital output module with sixteen 24 V DC channels rated at 0.5 A each. The module supports diagnostics, wire-break detection for both 0 and 1 signals, electronic short-circuit protection, diagnostic interrupts, and redundant control of a load. A 40-pole front connector and compatible IM 153-X HF interface are required for the 6ES7322-8BH10-0AB0.
| Rated load voltage | 24 V DC | Typical power loss | 6 W |
|---|---|---|---|
| Permissible voltage range | 20.4–28.8 V DC | Short-circuit threshold | 1.4 A typical per channel |
| Digital outputs | 16 | Maximum lamp load | 5 W |
| Rated output current | 0.5 A per channel | Maximum resistive switching | 100 Hz |
| Maximum no-load current | 100 mA | Output delay | 3 ms maximum |
Ewolomodule sells new and surplus products and develops channels for purchasing such products. This website has not been approved or recognized by any of the listed manufacturers or trademarks. Ewolomodule is not an authorized distributor, dealer, or representative of the products displayed on this website. All product names, trademarks, brands, and logos used on this website are the property of their respective owners. The description, explanation, or sale of products with these names, trademarks, brands, and logos is for identification purposes only and is not intended to indicate any association with or authorization from any rights holder.
Siemens 6GK5324-0GG10-3AR2 is a 19-inch managed rack switch for modular Industrial Ethernet networks. The 6GK5324-0GG10-3AR2 supports twelve two-port media modules, gigabit communication, PROFINET diagnostics, redundancy, VLANs, multicast control, and C-PLUG storage.
View More
Siemens 6ES7516-3TN00-0AB0 is a SIMATIC S7-1500T technology CPU with PROFINET IRT, Ethernet, and PROFIBUS. 6ES7516-3TN00-0AB0 coordinates advanced motion, logic, communication, and diagnostics in demanding industrial automation systems.
