SIEMENSSIMATIC ET 200M / SM 331

01 / PRODUCT DETAILS

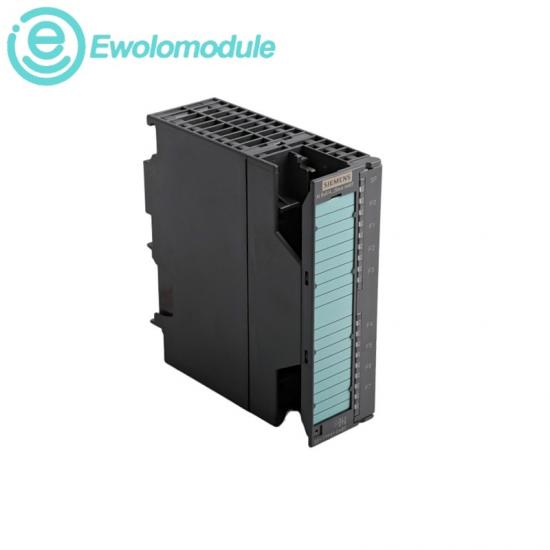

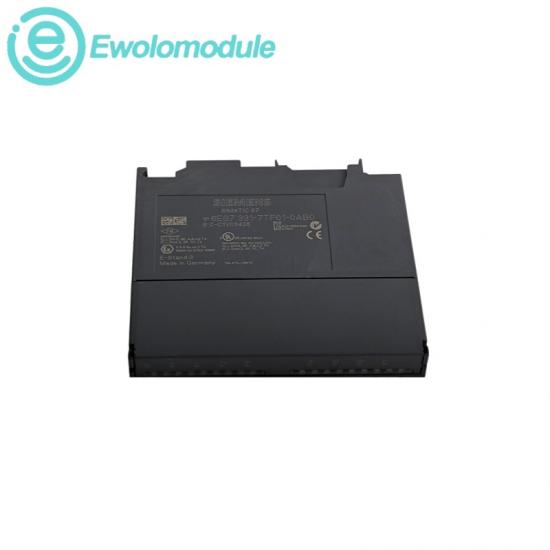

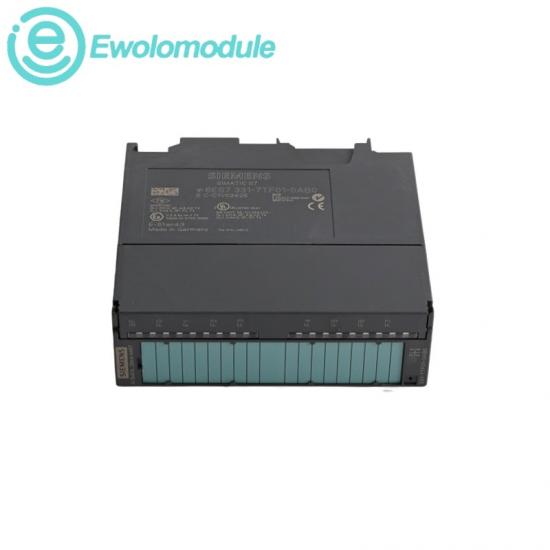

6ES7331-7TF01-0AB0

SM 331 HART Analog Input Module

An instrumentation input module for acquiring process measurements.

ConditionNew Original

WarrantyOne year

In stock2

Official data sourcesSiemens product record · Siemens technical data sheet

Technical record

02 / SPECIFICATIONS

Product position

The module digitizes current-transmitter signals and provides HART access to connected field instruments.

Measurement & wiring

Analog inputs8 channels

Input signal0/4–20 mA with HART

Conversion resolutionUp to 16 bits, including sign

Transmitter wiring2-wire and 4-wire

Supply & installation

Load supply L+24 V DC

Backplane current120 mA maximum at 5 V DC

ProtectionIP20

Front connector20-pin

Ordering code note

Retain the complete 7TF01 article number when selecting this HART-capable module; other SM 331 variants have different input functions.

System connection

Use with an ET 200M station and the supported IM 153-2 interface. Redundant applications must follow the Siemens system configuration requirements.

Signal smoothing

Selectable filtering levels.

Service support

Updateable module firmware.

Diagnostics

Time-stamped fault information.
