| Product StatusNew and Original | WarrantyOne-year warranty | Tariff Code85389091 | Fast Delivery1–3 working days |

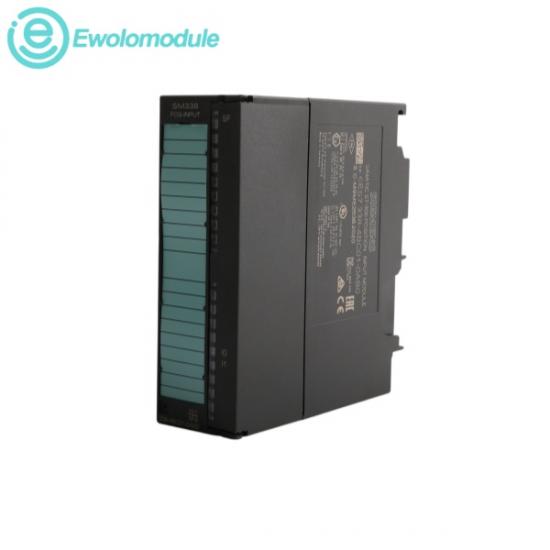

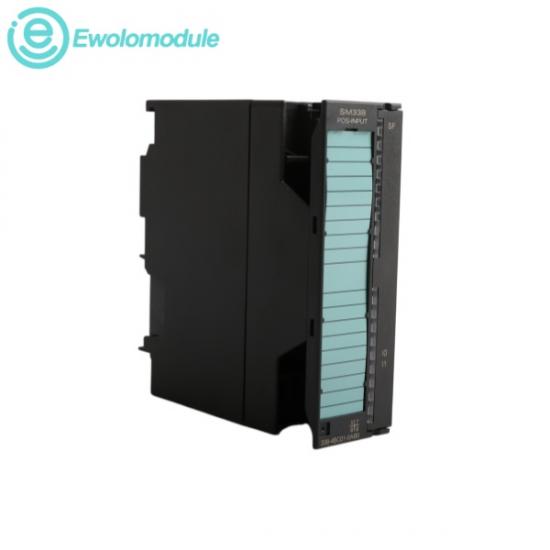

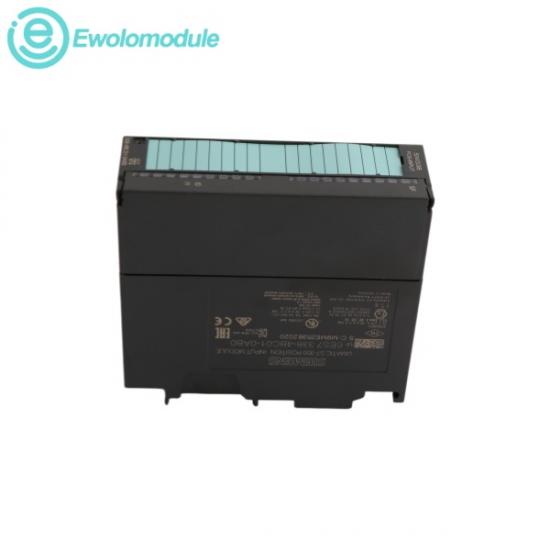

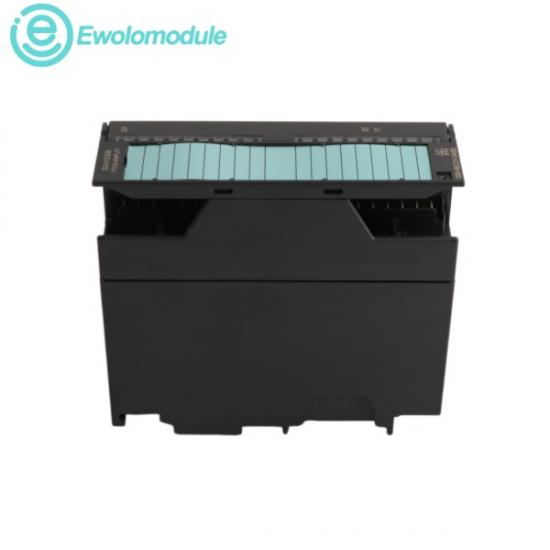

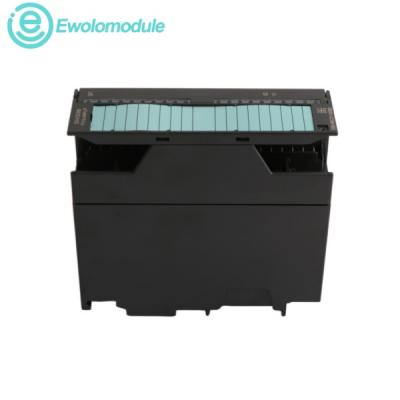

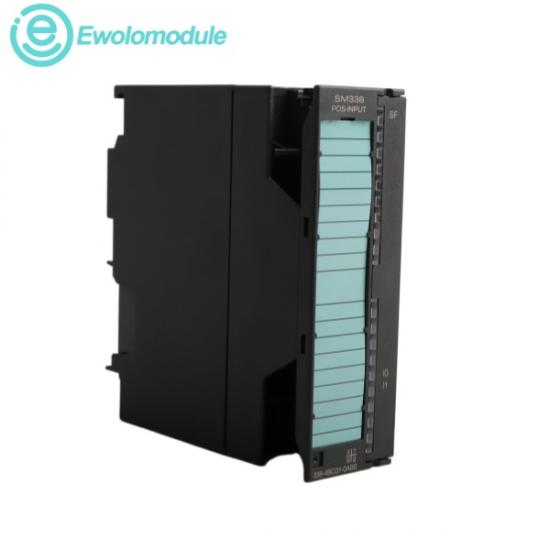

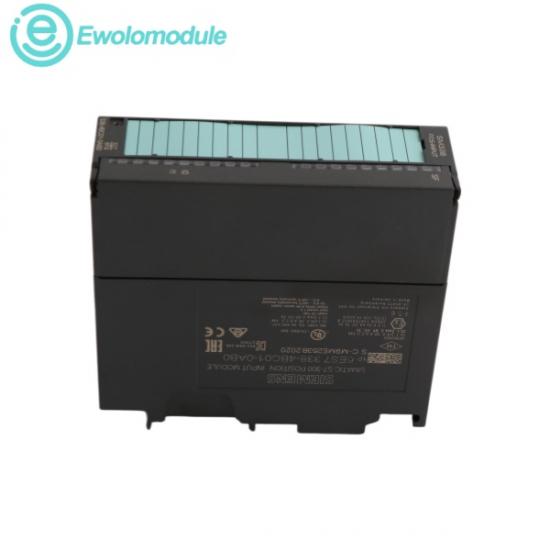

Siemens 6ES7338-4BC01-0AB0 is a SIMATIC S7-300 SM 338 signal module designed to acquire position values from up to three SSI absolute encoders. The 6ES7338-4BC01-0AB0 provides two FREEZE inputs, a 20-pole front connection, isochronous operation, 24 V DC load supply, and encoder transmission rates up to 1 MHz for precise machine-position feedback.
| Rated load voltage | 24 V DC | Typical power loss | 3 W |
|---|---|---|---|
| Permissible supply range | 20.4–28.8 V DC | SSI encoder channels | 3 |
| Maximum load current | 100 mA | FREEZE inputs | 2 |
| Maximum backplane current | 160 mA | Maximum input delay | 300 µs |
| Maximum sensor supply current | 900 mA | Maximum SSI transmission rate | 1 MHz |
|
Multi-axis machine positioning.Reads absolute positions from three SSI encoders for coordinated travel and positioning mechanisms.
|
Material-handling systems.Tracks crane, hoist, lift, and conveyor positions while FREEZE inputs capture synchronized encoder values.
|
|
Packaging and processing machinery.Provides deterministic position feedback for indexing, cutting, filling, and product-handling sequences.
|
S7-300 lifecycle maintenance.Restores SSI position-acquisition capability during exact-model replacement of installed SM 338 modules.
|
