PRODUCT DETAILS / OFFICIAL IDENTITY

SiemensSIMATIC S7-300 / CP 341

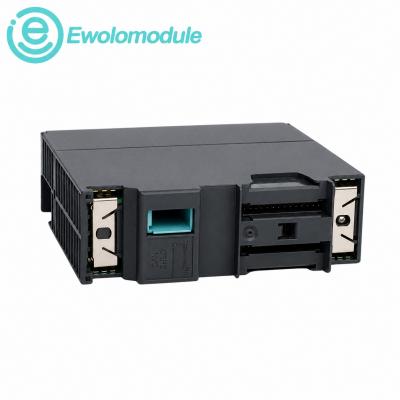

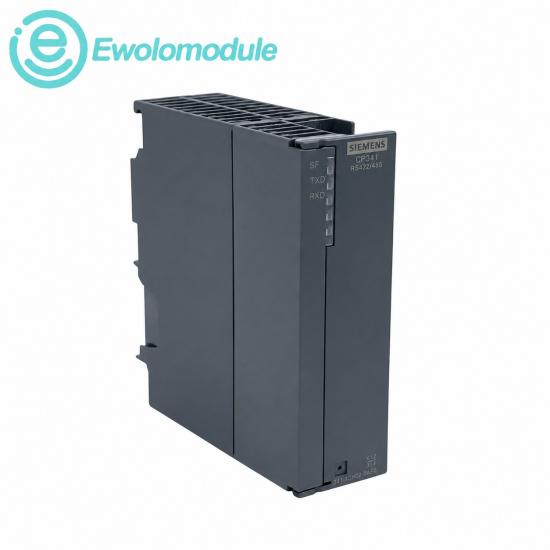

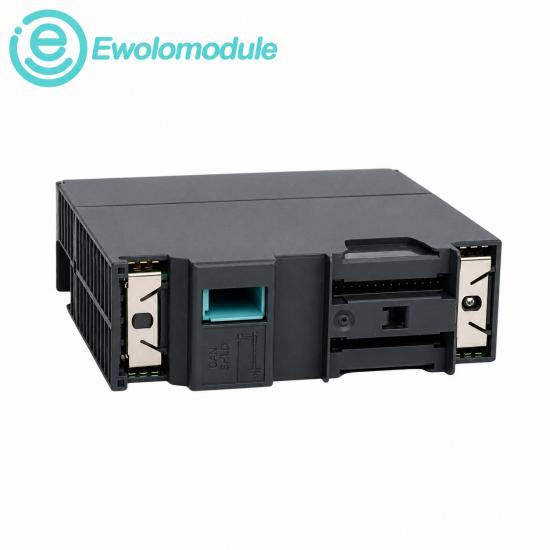

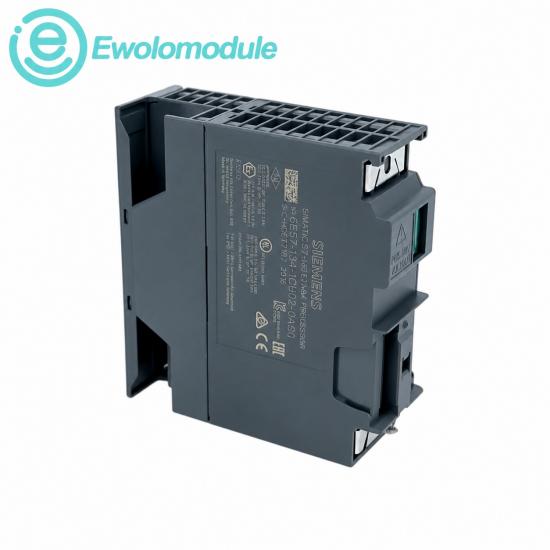

6ES7341-1BH02-0AE0 SIMATIC S7-300 CP 341 TTY Communications Processor

Siemens 6ES7341-1BH02-0AE0 is a CP 341 module for serial communication in SIMATIC S7-300 installations.

BRANDSiemens

SERIESSIMATIC S7-300 / CP 341

CONDITIONNew Original

WARRANTYOne year

IN STOCK3 pcs

Official data source: Siemens official technical data sheet for 6ES7341-1BH02-0AE0

02 / SPECIFICATIONS

Verified configuration and system role

OFFICIAL TECHNICAL DATA

Manufacturer	Siemens	Article number	6ES7341-1BH02-0AE0
Product designation	CP 341 TTY	Rated supply	24 V DC
Interface	1 isolated 20 mA TTY	Transfer rate	0.3–19.2 kbit/s
Maximum cable length	1000 m	Typical power loss	1.6 W

PRODUCT DESCRIPTION

Siemens 6ES7341-1BH02-0AE0 is a CP 341 communications processor with an isolated 20 mA TTY interface for serial data exchange in SIMATIC S7-300 systems.

Product positioning	Serial communications processor for connecting S7-300 to legacy TTY devices and protocols.
Suffix meaning	1BH02 identifies the CP 341 TTY interface version; 0AE0 is the official Siemens delivery variant.
System connection	Uses a 9-pin Sub-D interface and supports 3964(R), ASCII, and RK512 communication procedures.

THREE PRODUCT FEATURES

Isolated TTY portProvides one isolated 20 mA current-loop serial interface.

Multiple proceduresSupports 3964(R), ASCII, and RK512 protocols.

Long cable reachOfficial data permits cable lengths up to 1000 m.
