Product Details

SIEMENS

Complete Article Number

6ES7341-1CH01-0AE0

In Stock

Official Product Name

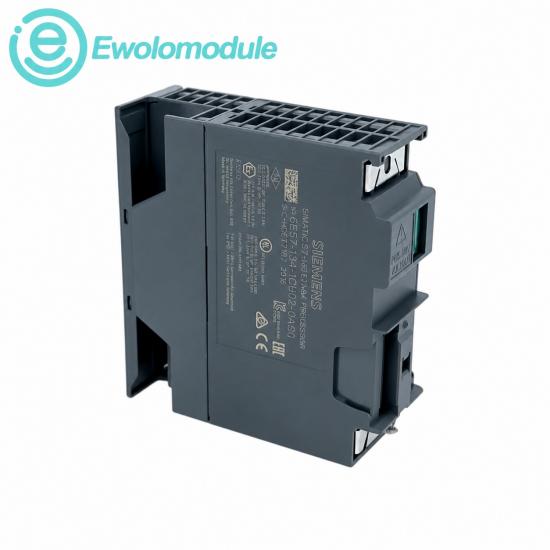

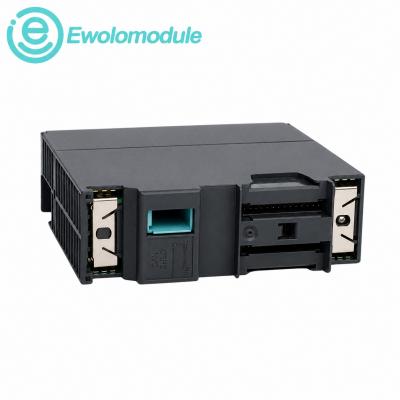

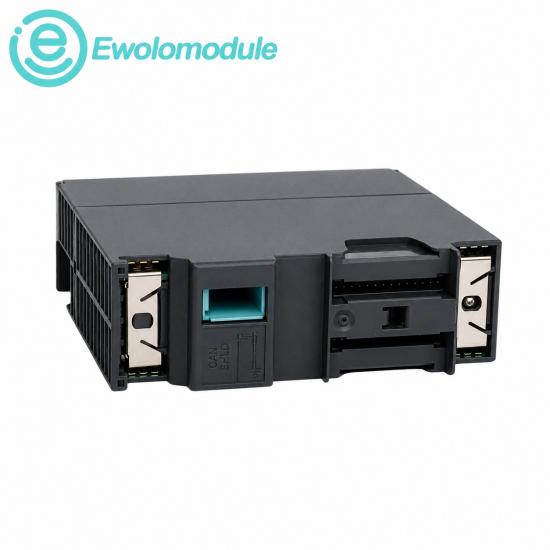

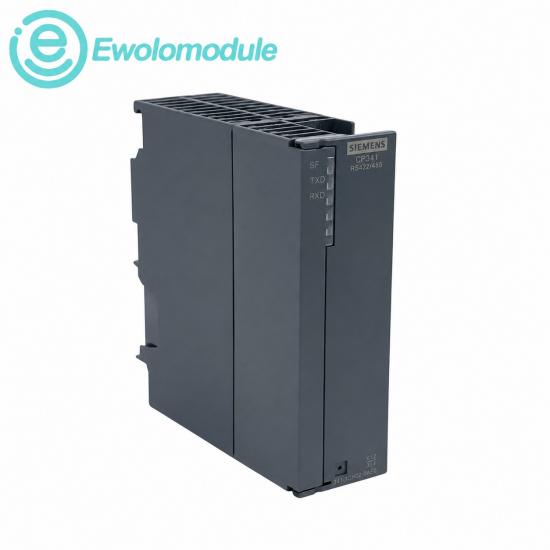

SIMATIC S7-300 CP 341 RS422/485 Communication Processor

Brief

Adds isolated serial point-to-point communication for field devices using differential signaling.

Product Series

SIMATIC S7-300 / CP 341

Condition

New Original

Warranty

One year

Official Source

Siemens CP 341 Point-to-Point Manual

Specifications / Serial Communication

Official interface data

Interface

RS422/RS485

Interface type

Differential voltage

Connector

15-pin Sub-D female

Isolation

Galvanically isolated

Driver support

Reloadable drivers

Configuration

STEP 7 / CP PtP Param

RS422 signals

TXD, RXD and GND

RS485 signals

R/T A, R/T B and GND

Product descriptionProcesses serial data exchange between the controller and external communication partners.

Product positioningCommunication processor for serial device integration in modular automation stations.

Suffix meaningThe CH01 configuration denotes the earlier RS422/485 hardware generation with reloadable protocol drivers.

System relationshipConfigured through the controller engineering environment and connected through the S7-300 backplane bus.

Flexible serial protocols

Isolated field interface

Legacy device integration

Recommand / Application Map

Industrial applications and model references

Serial instruments

Connect established field devices to the PLC.

Machine peripherals

Exchange data with readers and terminals.

Protocol integration

Use supported or reloadable drivers.

S7-300 service

Maintain existing point-to-point links.
