SIEMENSSIMATIC S7-300

01 / PRODUCT DETAILS

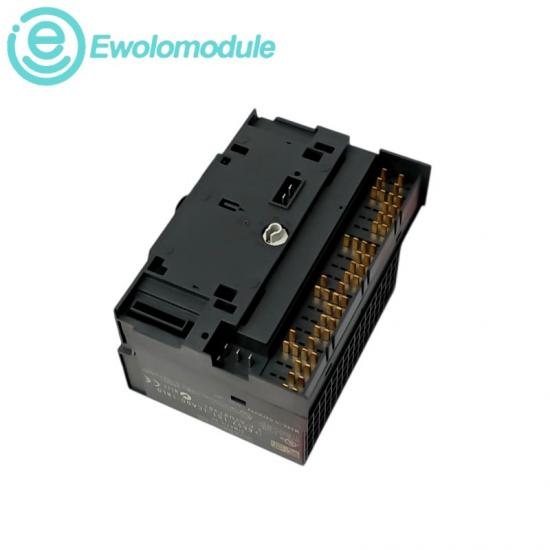

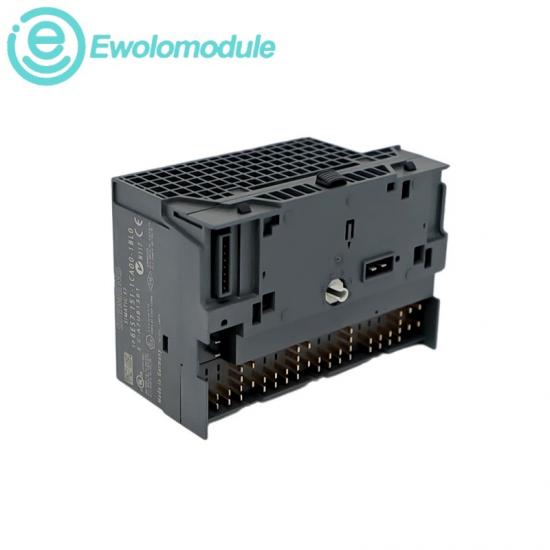

6ES7352-5AH01-0AE0

FM 352-5 High-Speed Boolean Processor

A dedicated processing module for time-critical machine logic.

ConditionNew Original

WarrantyOne year

In stock1

Official data sourcesSiemens product record · Siemens ST 70 Catalog, 2023

Technical record

02 / SPECIFICATIONS

Product position

The module evaluates local signals and executes fast Boolean logic independently of the normal CPU scan.

Processing & signals

Digital inputs8 standard; up to 12 using encoder inputs

Digital outputs8

Encoder interfaceRS422 incremental / SSI absolute

Program cycle1 µs

Supply & installation

Load supply24 V DC

Power loss6.5 W typical

Operating temperature0°C to +60°C

Front connector40-pin

Ordering code note

The 5AH01 article has NPN outputs. Do not interchange it with the 5AH11 PNP version without checking the circuit.

System connection

Integrate with the supported S7-300 configuration. A suitable Micro Memory Card is required for operation; match the encoder wiring to the selected mode.

Input conditioning

Programmable digital filtering.

Counter modes

Single, continuous and periodic counting.

Encoder evaluation

Forward and reverse direction processing.
