SIEMENS

ARTICLE NUMBER

6ES7422-1FF00-0AA0

PRODUCT DETAILS

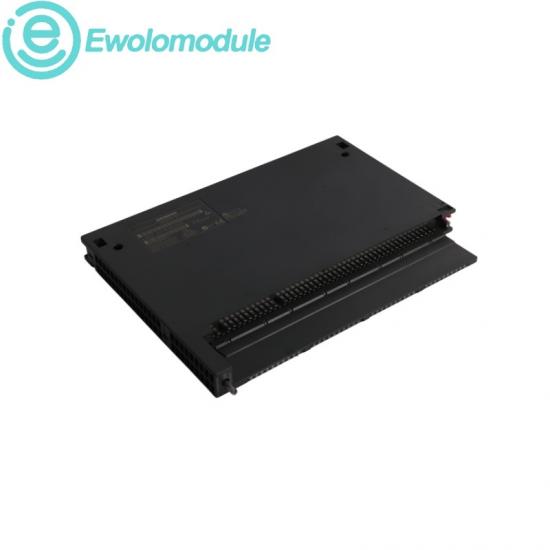

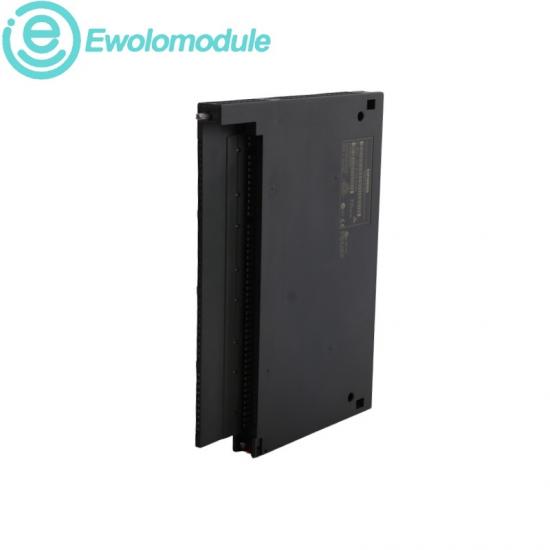

SIMATIC S7-400 SM 422 8 DO 120/230 V AC 5 A Digital Output Module

An optically isolated S7-400 output module providing eight 120/230 V AC channels rated at 5 A for demanding actuator switching.

WARRANTY

One year

AVAILABILITY

In stock

TEL	+86 17359287459

sales9@apterpower.com

PERFORMANCE & APPLICATIONSS7-400 DIGITAL OUTPUT MODULE

Digital outputs8 AC outputs	Load voltage120/230 V AC	Rated current5 A per output	IsolationOptically isolated
Power loss16 W typical	Backplane current250 mA maximum	Shielded cable1000 m maximum	Module width25 mm

PERFORMANCE & EFFICIENCY	APPLICATION SCENARIOS
◆ Eight independently isolated AC output channels support high-load switching.	◆ Industrial heaters, valves and contactors using 120/230 V AC.
◆ Green channel LEDs indicate output status during commissioning and service.	◆ S7-400 process and manufacturing control cabinets.
◆ Internal and external fault LEDs indicate fuse or load-voltage conditions.	◆ Retrofit of installed SM 422 output stations.
◆ Official current limits support coordinated thermal and load planning.	◆ Lifecycle spare-part support where original field wiring must be retained.

SIEMENS VALUE & INDUSTRY FIT

BRAND CHARACTERISTICS	APPLICATION FIELDS
◆ Siemens order coding identifies the exact SM 422 AC-output variant.	◆ Process plants and large machine-control systems.
◆ S7-400 modular architecture supports documented rack expansion.	◆ High-power AC actuator switching in control cabinets.
◆ Optical isolation separates field circuits from the backplane bus.	◆ Utilities, material handling and production-line automation.
◆ Official module data defines current, insulation and temperature limits.	◆ Installed S7-400 maintenance and standardized spare inventories.
