SIEMENS · SIMATIC S7-400

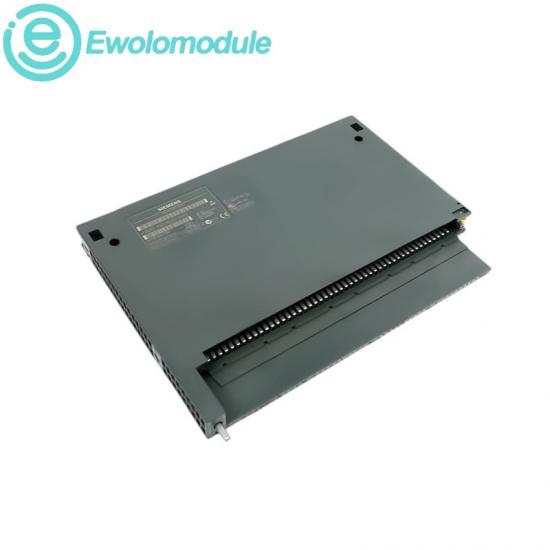

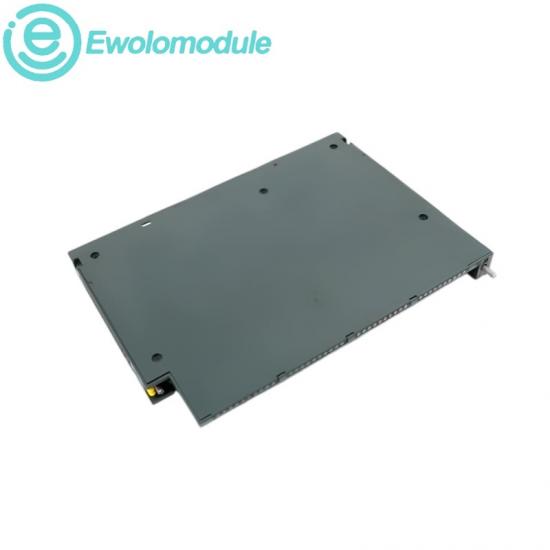

Siemens 6ES7422-5EH10-0AB0
SIMATIC S7-400 SM 422 16DO DC Digital Output Module

CONDITION
New Original

WARRANTY
One year

AVAILABILITY
In stock

TECHNICAL PROFILE

+86 17359287459 | sales9@apterpower.com

The SM 422 switches DC field loads from an S7-400 automation system. Siemens documents individually fused outputs, group isolation and diagnostic functions that support service investigations. Before replacement, check the load circuit, the front connector and the module configuration, including substitute values.

DIGITAL OUTPUTS
16

LOAD VOLTAGE
20–125 V DC

OUTPUT CURRENT
1.5 A

ISOLATION
Groups of 8

Operating environment

Install in a compatible S7-400 rack and use the specified front connector and load supply. Observe Siemens instructions for fused outputs and safe isolation before maintenance.

Monitoring & control

The controller drives 16 output channels and can receive group-fault diagnostics. Programmable diagnostic interrupt and substitute-value behavior depend on the configured station.

BRAND & APPLICATION

Brand characteristics

Siemens S7-400 signal modules provide documented output behavior, diagnostics and exact article-code identification for controlled spares.

Fused outputs

Diagnostic

Traceable

Application fields

Used for DC actuators and signaling circuits in established S7-400 machine and process-control systems.

DC loads

S7-400 service

Plant control
