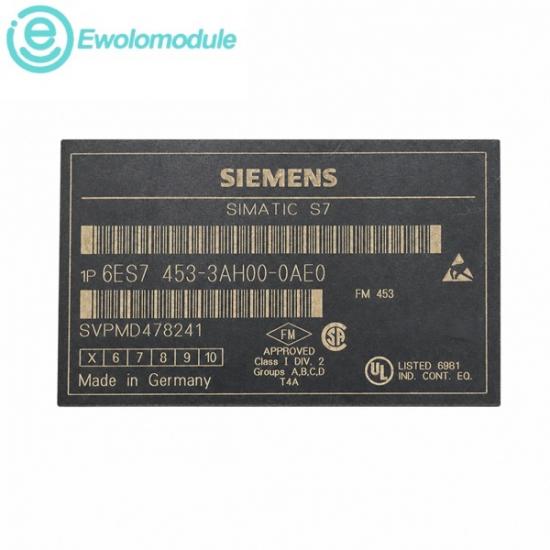

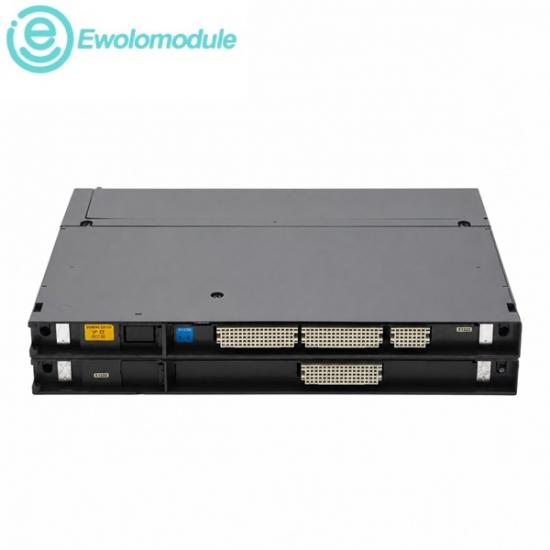

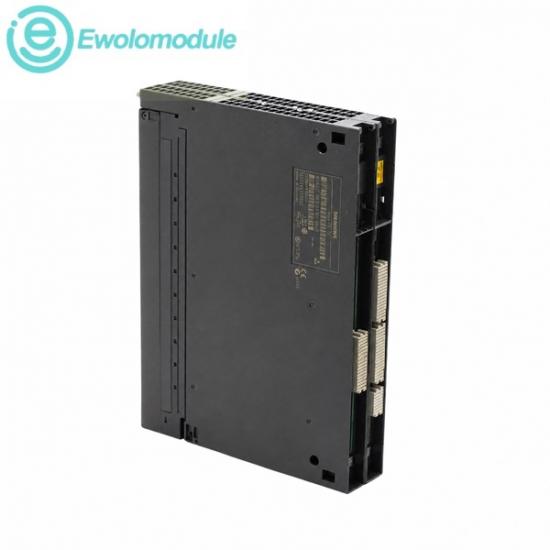

Siemens 6ES7453-3AH00-0AE0 SIMATIC S7-400 FM 453 Positioning Module

Product SeriesSiemens SIMATIC S7-400 FM 453 Positioning Module Series

Siemens 6ES7453-3AH00-0AE0 is an FM 453 three-axis positioning module for servo and stepper drives. The 6ES7453-3AH00-0AE0 performs rapid positioning with encoder feedback in SIMATIC S7-400 automation systems.

✓Product StatusNew and Original

◇WarrantyOne-year warranty

§Tariff Code85371091

→Fast Delivery1–3 working days

Product Function & Verified Technical Data

The Siemens 6ES7453-3AH00-0AE0 SIMATIC S7-400 FM 453 is a three-channel positioning module for servo and stepper drives. It accepts incremental or SSI encoder feedback and provides pulse, digital and analog interfaces for closed-loop positioning tasks. Output pulses reach 200 kHz, encoder cables can extend to 35 m with symmetrical transmission, and operation is specified from 0 to +55 °C for machine and material-handling applications.

Verified Technical Data
Rated auxiliary voltage	24 V DC	Load input current 2L+–4L+	2 A maximum per channel
Dynamic supply range	18.5–30.2 V DC	5 V encoder output current	300 mA maximum
Static supply range	20.4–28.8 V DC	24 V encoder cable length	100 m maximum at 300 mA
Backplane bus current	1.6 A maximum at 5 V	Power loss	8 W maximum
Load input current 1L+	1 A maximum	Digital inputs	6 per channel / axis

Product-Specific Application Routes

Machine positioning

Control up to three rapid-traverse axes with encoder feedback.

Warehouse systems

Position storage and retrieval equipment accurately.

Woodworking machinery

Coordinate feed and tool-positioning axes.

Packaging machines

Synchronize product handling and format-adjustment mechanisms.

Lifecycle service

Restore FM 453 positioning functions in installed S7-400 racks.

Industrial Application Landscape

ManufacturingMulti-axis positioning in production machines.

WarehousingMotion control for automated storage and retrieval systems.

PackagingPositioning for handling, filling and cartoning equipment.

WoodworkingServo and stepper control for feed and machining axes.

AutomotivePositioning of fixtures and material-handling equipment.

Lifecycle MROExact FM 453 replacement in S7-400 systems.
