01 PRODUCT DETAILS

Official product identity

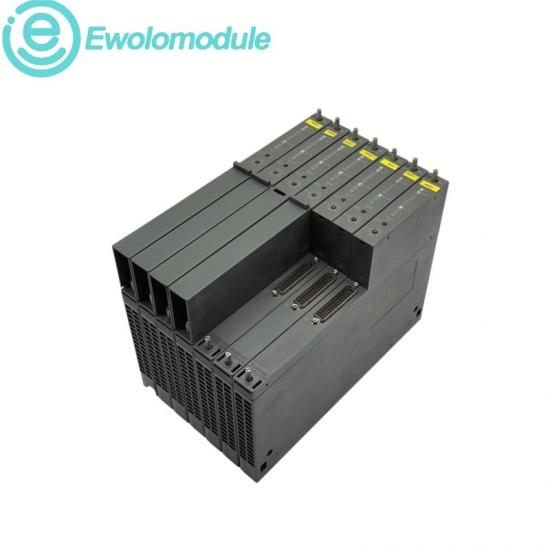

SIMATIC S7-400 IM 461-1

Siemens 6ES7461-1BA01-0AA0 IM 461-1 Interface Module

This product is an IM 461-1 receiver interface module for centrally extending a SIMATIC S7-400 system.

PRODUCT ROLE

Receive interface for central expansion

CONDITION

New Original

WARRANTY

One year

AVAILABILITY

In stock

Related models on siteSiemens Products 6ES7315-2EG10-0AB0 6ES7467-5FJ00-0AB0

SPECIFICATIONS

Central S7-400 rack expansion

The IM 461-1 receives the P-bus connection in an expansion unit and works with an IM 460-1 over a central coupling distance up to 1.5 m.

Detailed product description

Installed in an S7-400 expansion unit, the receiver interface transfers the peripheral bus from the central rack and supplies the connected expansion arrangement. It is intended only for operation with the matching IM 460-1 send interface.

Official technical data

Product type	IM 461-1	Function	Receiver interface module
System	SIMATIC S7-400	Coupling type	Central expansion
Maximum cable length	1.5 m	Backplane input	5 V DC / 120 mA max.
Power loss	600 mW max.	C-bus transfer	Not included

Communication & Connections

Partner module	IM 460-1
Bus transferred	P-bus
Rack position	Expansion unit
Connection cables	S7-400 468-3 family

Safety & Compliance

Use constraint	Operate only with IM 460-1
Installation	S7-400 expansion unit
Documentation	S7-400 Module Data manual
Supply source	S7-400 backplane bus

Central expansion up to 1.5 m

P-bus transfer to expansion rack

Low backplane power demand

Technical basis: Siemens official product documentation

RECOMMAND

Brand features and application fields

Brand characteristics

Siemens industrial automation hardware emphasizes organized engineering, documented integration and visible operating status for maintainable systems.

Rack architectureCoordinated send and receive modules extend modular controller systems.

Defined pairingDedicated interface partners reduce configuration ambiguity.

Documented mechanicsStandard module format supports orderly cabinet service.

Application fields

Suitable for S7-400 central rack expansion and controlled cabinet extensions.

Rack expansionAdditional S7-400 expansion unit

P-bus transferCentral peripheral-bus connection

MaintenanceReplacement in installed S7-400 systems

Installation & upgrade: Plug into the specified slot of the S7-400 expansion unit, connect it to the compatible IM 460-1 with an approved 468-3 cable and observe the 1.5 m total coupling limit.
