PRODUCT DETAILS

SIEMENS

ARTICLE NUMBER

6ES7461-4AA01-0AA0

OFFICIAL PRODUCT NAME

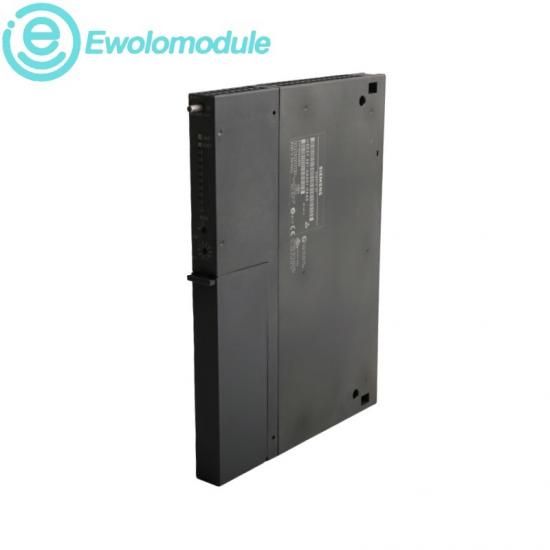

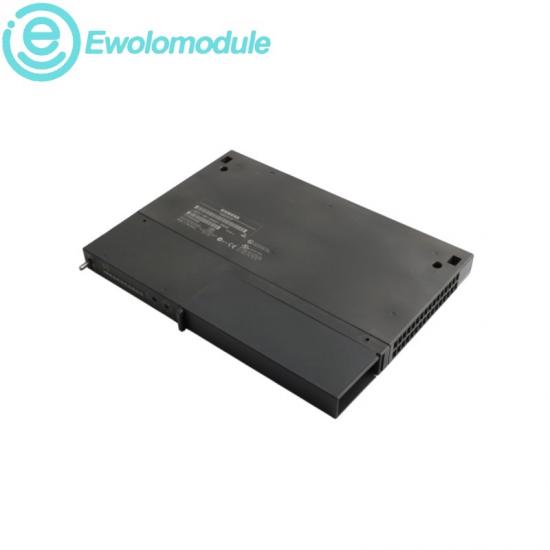

SIMATIC S7-400 IM 461-4
Receiver Interface Module

Warranty
One year

Availability
In stock

Receiver interface module for distributed S7-400 rack coupling up to 605 m when paired with an IM 460-4 sender.

Tel : +86 17359287459

Email : sales9@apterpower.com

DIAGNOSTICS, PROTECTION & INSTALLATION

INTF and EXTF LEDs indicate internal and external interface faults.
Cable breaks or a missing terminator can be identified from the status indicators.
The rack-number switch supports clear expansion-rack assignment.

Use exclusively with the matching IM 460-4 sender interface module.
Set rack address and line-length switches while the station is de-energized.
Install the specified terminator at the end of the remote coupling line.

OFFICIAL TECHNICAL DATA

Article number	6ES7461-4AA01-0AA0	Device type	IM 461-4 receiver
Maximum line length	605 m	Compatible sender	IM 460-4
Backplane current	590 mA typ. / 620 mA max.	Power loss	2.95 W typ. / 3.10 W max.
C-bus transfer	No	Installation	S7-400 expansion rack

BRAND & APPLICATIONS

Siemens SIMATIC S7-400 modular automation platform
Purpose-built receiver for distributed rack expansion
Integrated interface and external-fault indication

Large S7-400 distributed automation stations
Long-distance expansion-rack connections
Process and infrastructure control cabinets
