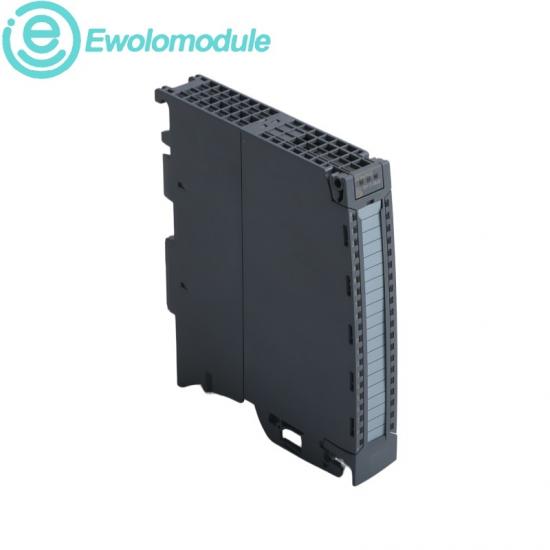

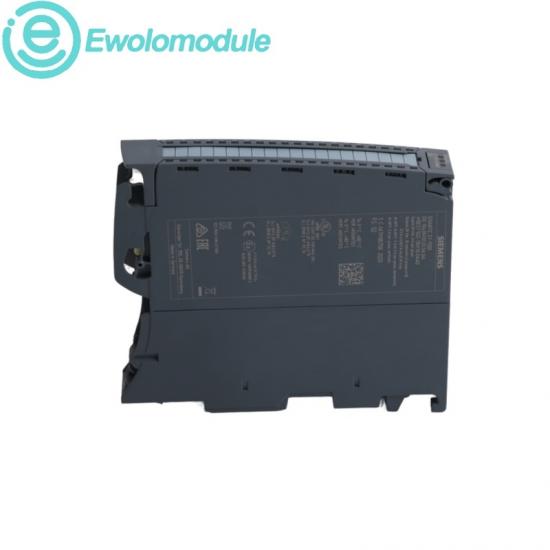

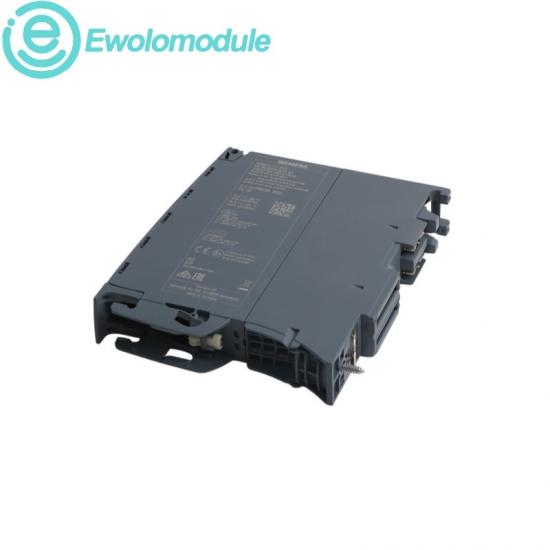

Siemens 6ES7522-1BH10-0AA0 SIMATIC S7-1500 DQ 16x24VDC/0.5A BA Module

CONDITIONNew Original

WARRANTYOne year

PRODUCT SNAPSHOT

The SM 522 BA module supplies sixteen 24 V DC transistor outputs in two groups of eight. It is designed for standard actuator switching in S7-1500 automation systems and includes a 40-pole push-in front connector.

Clear RUN, ERROR, PWR and channel-status indicators support commissioning, while prioritized startup and substitute-value behavior enable controlled plant operation.

DIRECT CONTACT

☎ +86 17359287459 ✉ sales9@apterpower.com

Explore other Siemens →

OPERATION · VISIBILITY · CONTROL

Operating Environment

Horizontal installation is specified from -30 to 60 °C from the documented hardware revision; vertical installation is limited to 40 °C.

The 25 mm module fits the S7-1500 rail system and is rated for installation altitudes up to 5,000 m with manual restrictions above 2,000 m.

Monitoring & Control

Green channel-status LEDs show the switching state, with RUN, ERROR and PWR indicators for module-level visibility.

Outputs are grouped in sets of eight; the module supports safety-related tripping of standard modules from the documented revision.

OFFICIAL TECHNICAL DATA

Product typeDQ 16x24VDC/0.5A BA	Digital outputs16	Output voltage24 V DC
Output current0.5 A per channel	Channel groups2 groups of 8	Group current4 A max.
Isochronous modeNo	Prioritized startupYes	Backplane isolationYes
Isolation test707 V DC	Front connector40-pole push-in	Module size25x147x129 mm

Siemens brand characteristics

1Integrated engineering across SIMATIC controller and distributed I/O families

2Documented order codes, diagnostics and lifecycle information

3Scalable module selection for compact and rack-based systems

4Service-oriented replacement paths for established installations

Application fields

1Machine actuator switching

2Conveyor and handling systems

3S7-1500 cabinet expansion

4Standard output replacement
