PRODUCT DETAILS

ARTICLE NUMBER

6ES7526-2BF00-0AB0

Warranty: One year
Availability: In stock

OFFICIAL PRODUCT NAME

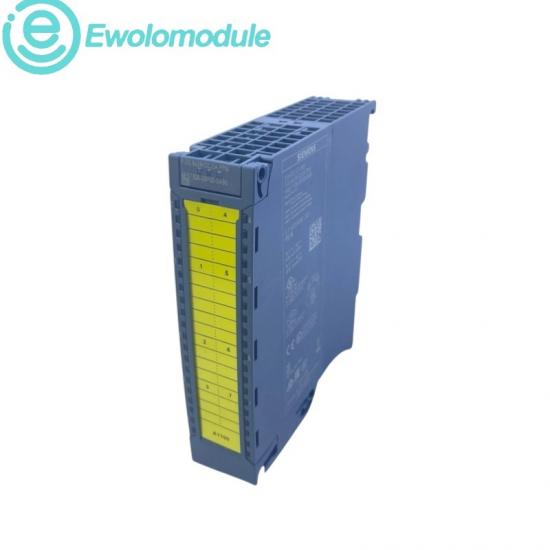

SIMATIC S7-1500 F-DQ 8x24VDC 2A PPM

Series: SIMATIC S7-1500 / ET 200MP

A fail-safe digital output module with eight 24 V DC, 2 A PPM outputs for PROFIsafe applications up to PL e and SIL 3.

Tel: +86 17359287459

Email: sales9@apterpower.com

SPECIFICATIONS / ENGINEERING NOTES

Operating environment and monitoring control

OPERATING ENVIRONMENT

◆ Horizontal operation from 0 °C to +60 °C
◆ Vertical operation from 0 °C to +40 °C
◆ 35 mm-wide rail-mounted module for S7-1500 and ET 200MP

MONITORING & CONTROL

◆ Channel and module diagnostics with LED indication
◆ Supply-voltage, wire-break and short-circuit monitoring
◆ PROFIsafe communication for safety-related output control

OFFICIAL TECHNICAL DATA

Digital outputs	8	Output rating	24 V DC / 2 A
Safety level	PL e / SIL 3	Protocol	PROFIsafe
Module width	35 mm	Isolation test	707 V DC
Horizontal range	0 °C to +60 °C	Vertical range	0 °C to +40 °C

PRODUCT PROFILE / APPLICATION NOTES

Brand characteristics and application fields

BRAND CHARACTERISTICS

◆ Fail-safe Siemens output technology
◆ Integrated channel and module diagnostics
◆ Compact ET 200MP form factor

APPLICATION FIELDS

◆ Emergency-stop and machine safety
◆ Safe valve and actuator control
◆ Production and process safety systems
