PRODUCT DETAILS · SIEMENS

6ES7541-1AB00-0AB0

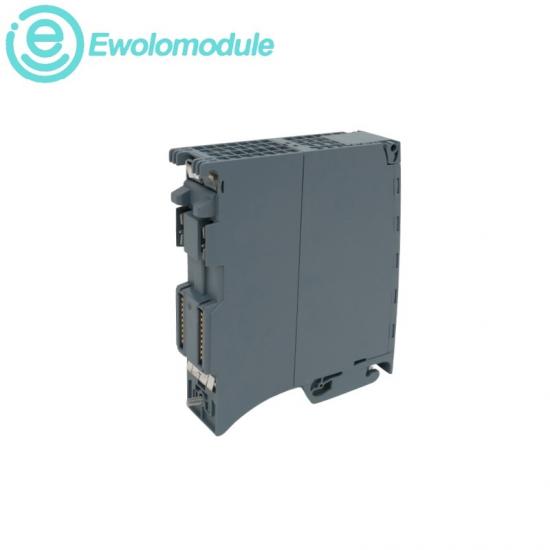

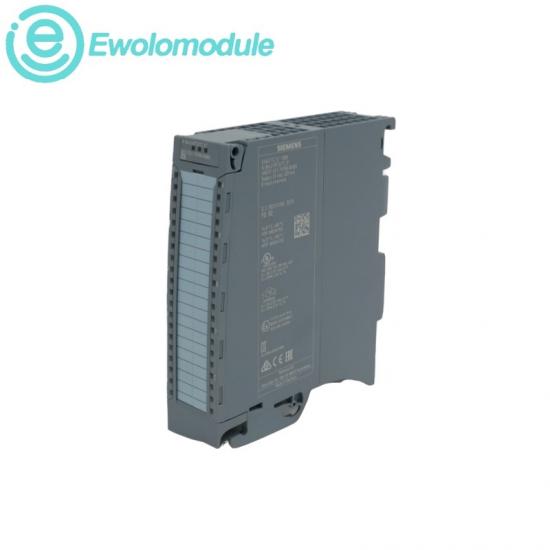

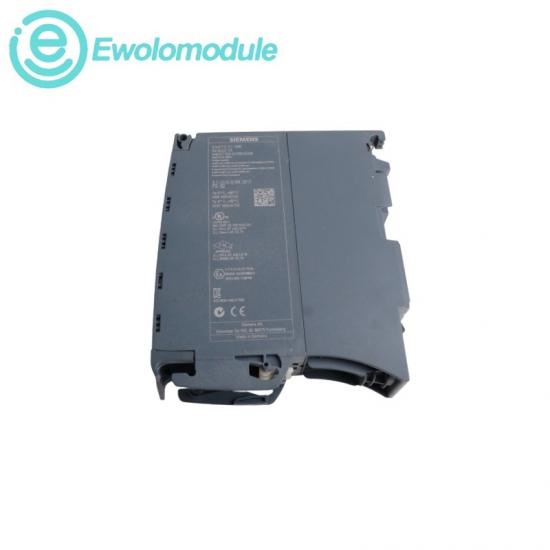

SIMATIC S7-1500 CM PtP RS422/485 HF Communication Module

PRODUCT IDENTITY

Siemens 6ES7541-1AB00-0AB0 RS422/485 Communication Module

A high-feature point-to-point communication module for connecting serial RS422 and RS485 devices to SIMATIC S7-1500.

Product series: SIMATIC S7-1500 communication modules

TEL
+86 17359287459

EMAIL
sales9@apterpower.com

RELATED MODELS

6ES7541-1AB01-0AB0

6ES7540-1AD00-0AA0

6ES7541-1AD00-0AB0

6ES7542-5DX00-0XE0

SPECIFICATIONS · OFFICIAL PRODUCT DATA

Technical profile and system fit

PRODUCT DESCRIPTION

The CM PtP RS422/485 HF provides a 15-pin D-sub serial interface for point-to-point data exchange. It supports Freeport, 3964(R), USS and MODBUS RTU master or slave communication, allowing an S7-1500 station to integrate drives, instruments and other serial devices.

OFFICIAL TECHNICAL DATA

Product designation	CM PtP RS422/485 HF	Automation system	SIMATIC S7-1500
Serial standards	RS422 / RS485	Protocols	Freeport, 3964(R), USS
MODBUS RTU	Master / slave	Maximum rate	115200 bit/s
Connector	15-pin D-sub socket	Successor	6ES7541-1AB01-0AB0
