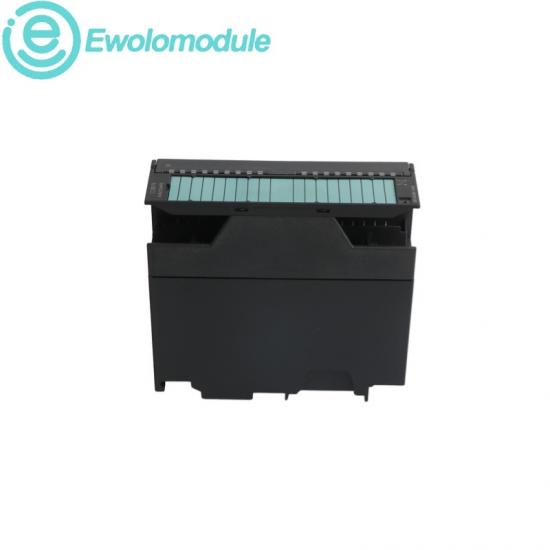

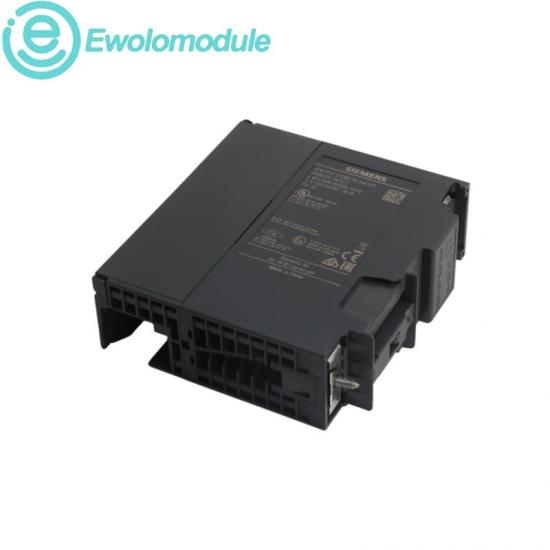

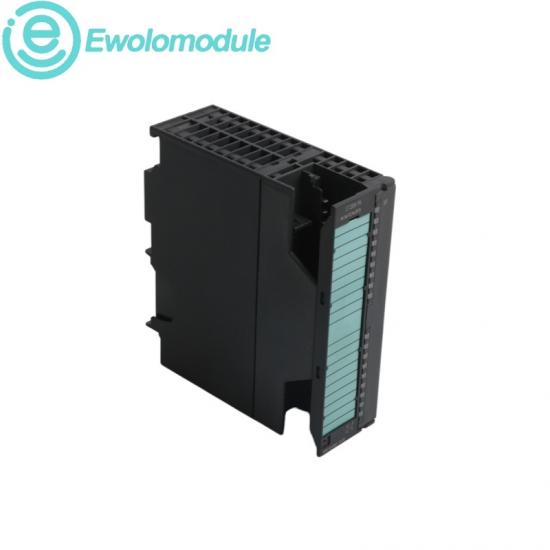

Siemens 6ES7650-8DK80-0AA0
32DI Digital Input Module

A 32-channel isolated 24 V DC input module for acquiring digital field signals in ET 200PA SMART stations.

PRODUCT PROFILE

SERIES SIMATIC ET 200PA SMART	CONDITION New Original
WARRANTY One year	AVAILABILITY In stock

02 SPECIFICATIONS

Email : sales9@apterpower.com

DETAILED PRODUCT DESCRIPTION

Distributed digital signal acquisition

The module collects 32 discrete field inputs through a 40-pole front connector. It is designed for an ET 200PA SMART station using the specified IM 650-8PH interface module.

Official technical data

Digital inputs	32	Rated input voltage	24 V DC
Input delay	3 ms	Input current	7 mA typical at signal 1
Shielded cable	Up to 1000 m	Unshielded cable	Up to 600 m
Backplane current	50 mA maximum at 5 V DC	Power loss	6.5 W typical

Communication & Connectivity

A 40-pole front connector connects the field inputs. The module exchanges input states through the ET 200PA SMART backplane; a compatible IM 650-8PH interface is required for the station.

Safety & Compliance

Input channels are isolated from the backplane by optocouplers. Siemens specifies no diagnostic alarm or readable diagnostic information for this module; a red SF group-error LED and green input-status LEDs provide local indication.

03 RECOMMEND

Email : sales9@apterpower.com

Brand characteristics

Siemens documents the ET 200PA SMART system as coordinated interface and signal modules for distributed process I/O.

Modular structure	System modules are selected together for a configured ET 200PA SMART station.
Documented wiring	Front-connector assignment and operating limits are specified by Siemens.
Lifecycle service	The complete order number supports like-for-like maintenance.

Application fields

This module collects discrete 24 V DC field signals in ET 200PA SMART installations.

Machine signals	Bring switch and contact states into the distributed I/O station.
Process monitoring	Monitor digital equipment states in process control applications.
Station service	Replace a matching ET 200PA SMART 32DI module.
