PRODUCT DETAILS

6ES7964-2AA04-0AB0

SIMATIC S7 IF 964-DP Interface Module

PRODUCT IDENTITY

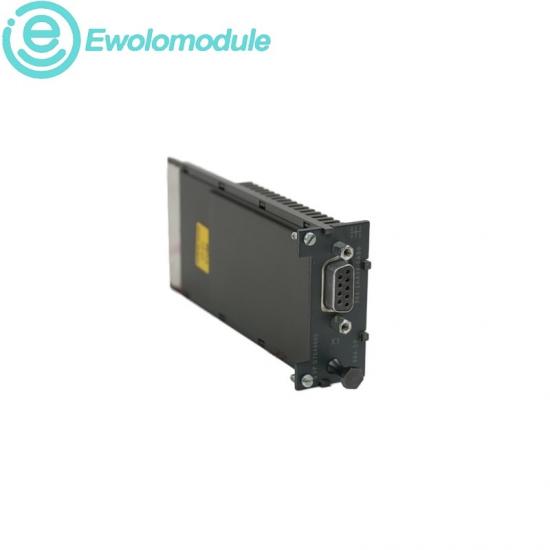

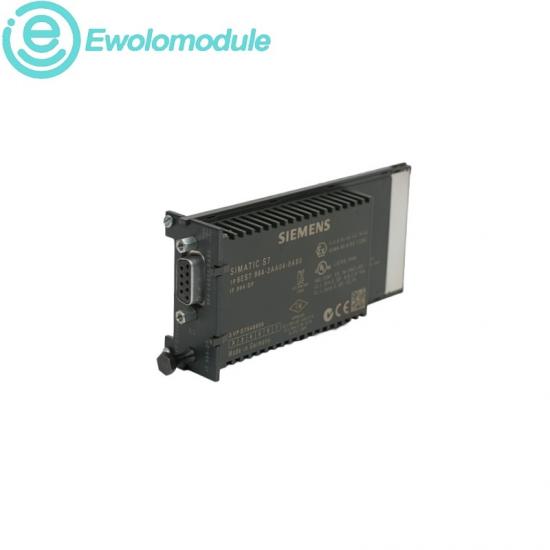

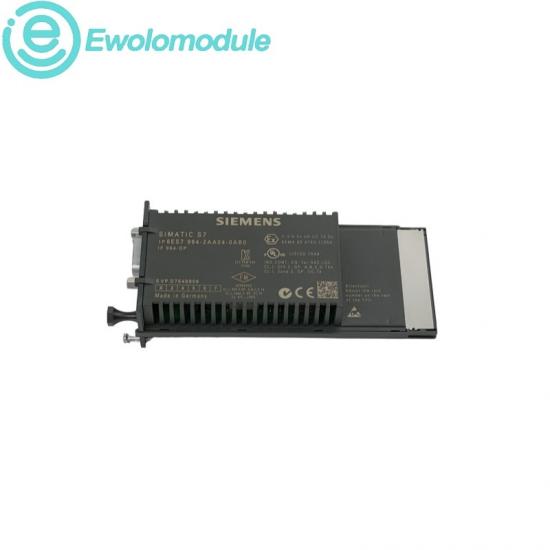

Siemens 6ES7964-2AA04-0AB0 SIMATIC S7 IF 964-DP Interface Module

A plug-in PROFIBUS DP interface module that adds an isolated RS485 DP connection to supported SIMATIC S7-400 CPUs.

CONDITIONNew Original

WARRANTYOne year

AVAILABILITYIn stock

RELATED MODELS

Specifications

DIAGNOSTICS & PROTECTION

The galvanically isolated RS485 interface separates the field bus from CPU electronics. Communication status and bus faults are evaluated through SIMATIC S7-400 and PROFIBUS diagnostic functions.

INSTALLATION & UPGRADE

Insert the module into the designated IF slot of a supported S7-400 CPU and connect the PROFIBUS network through the 9-pin Sub-D connector. Legacy documentation requires the applicable CPU firmware level and limits the supported number of IF modules by CPU family.

OFFICIAL TECHNICAL DATA

PRODUCT DESIGNATIONIF 964-DP

PHYSICAL INTERFACEIsolated RS485

CONNECTOR9-pin Sub-D

DP MASTER FUNCTIONSupported

DP DEVICE FUNCTIONSupported

TRANSMISSION RANGE9.6 kbit/s to 12 Mbit/s

MAXIMUM DP DEVICESUp to 125, CPU-dependent

MAXIMUM DEVICE DATA244 bytes input and 244 bytes output

CURRENT FROM CPUMaximum 150 mA

TYPICAL POWER LOSS1 W

Recommand

OPERATING ENVIRONMENT

The module operates inside a supported S7-400 CPU. Apply the installation, temperature, cabinet and environmental limits specified for the host CPU; no separate independent limits were confirmed for this plug-in interface.

MONITORING & CONTROL

The interface supports PG/OP communication, equidistance, SYNC/FREEZE and direct slave-to-slave data exchange. It may be configured as a DP master or DP device according to the host CPU and project configuration.

6ES7964-2AA04-0AB0

Siemens 6ES7964-2AA04-0AB0

6ES7964-2AA04-0AB0 Interface Module

SIMATIC S7-400

IF 964-DP

Siemens PROFIBUS Module
