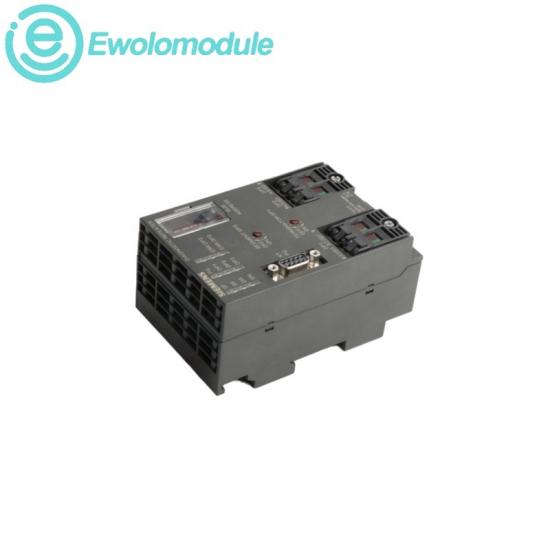

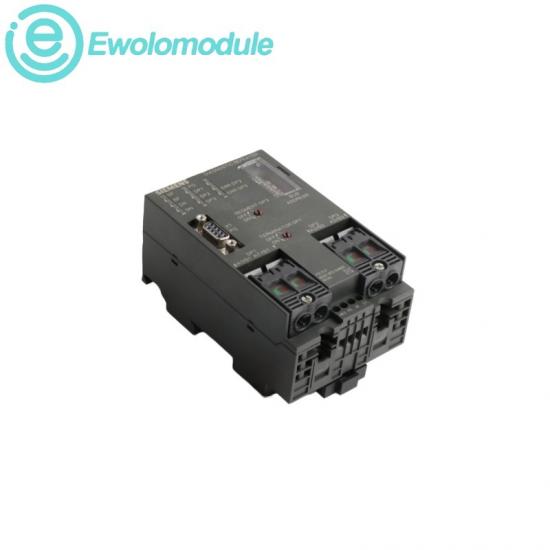

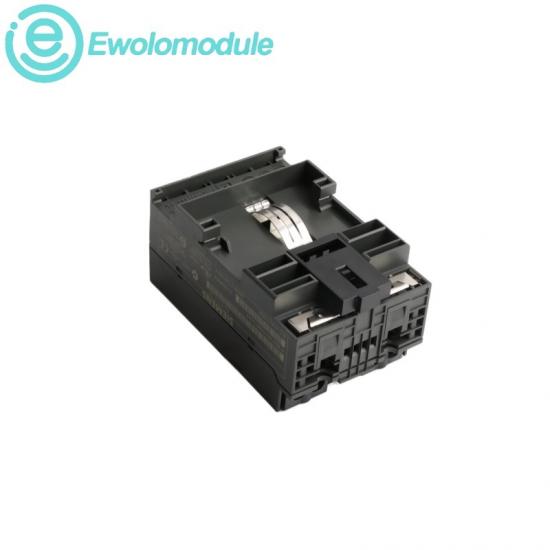

SIMATIC S7 PROFIBUS DP Diagnostic Repeater

6ES7972-0AB01-0XA0

PRODUCT IDENTITY

A PROFIBUS DP diagnostic repeater that connects and monitors bus segments online, operates as a DP standard slave up to 12 Mbit/s and supports FastConnect cabling.

☎ +86 17359287459 ✉ sales9@apterpower.com

SPECIFICATIONS · OFFICIAL PRODUCT DATA

Firmware support and configuration

FIRMWARE & UPDATES

◆ Use a STEP 7 hardware catalog that contains the diagnostic repeater device profile
◆ Archive the PROFIBUS network configuration before engineering-software updates
◆ After changes, check the repeater diagnostic buffer and verify every monitored segment

CONFIGURATION & PROGRAMMING

◆ Assign the diagnostic repeater as a PROFIBUS DP standard slave
◆ Set a bus address and transmission rate between 9.6 kbit/s and 12 Mbit/s
◆ Terminate and commission both monitored PROFIBUS segments with FastConnect cabling

OFFICIAL TECHNICAL DATA

Product designation

PROFIBUS DP diagnostic repeater

System family

SIMATIC S7 / PROFIBUS

Network role

DP standard slave

Transmission rate

9.6 kbit/s to 12 Mbit/s

Supply voltage

24 V DC

Protection rating

IP20

Cable connection

FastConnect IDC

Lifecycle status

Phase-out product

INDUSTRY FIT · APPLICATION GUIDANCE

Related industries and application scope

RELATED INDUSTRIES

◆ Automotive manufacturing
◆ Process automation
◆ Material handling
◆ Industrial network service

APPLICATION SCOPE

◆ Online PROFIBUS cable diagnostics
◆ Two-segment DP networks
◆ Fault localization
◆ Legacy fieldbus maintenance
