SIEMENS · PRODUCT DETAILS

6ES7972-0BA12-0XA0

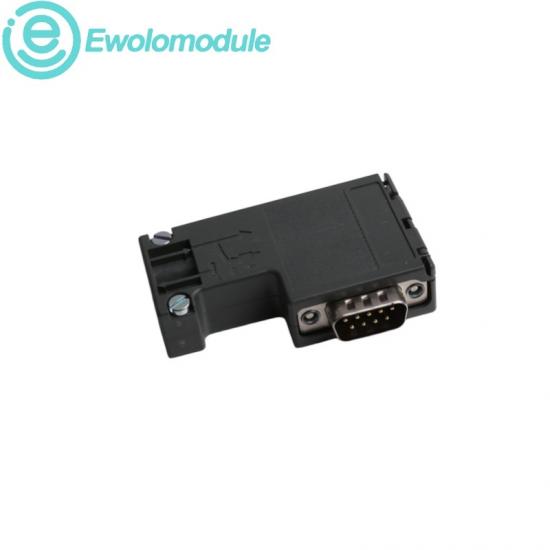

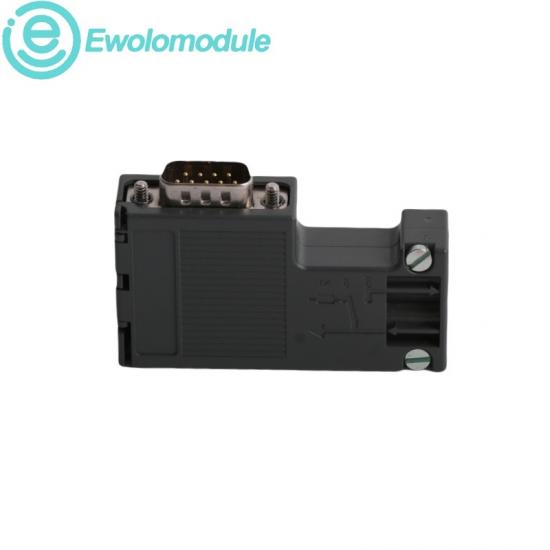

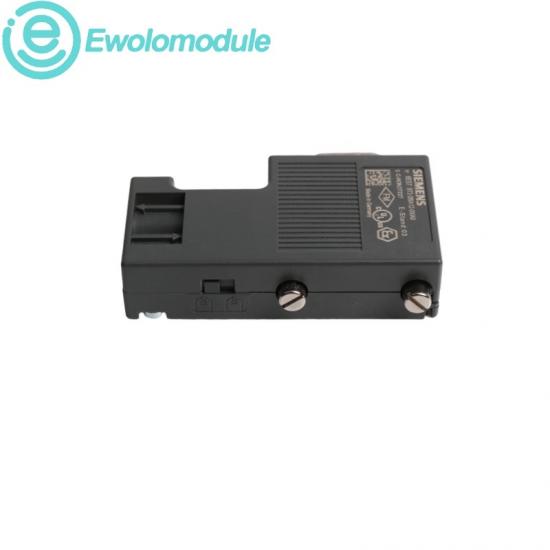

SIMATIC DP PROFIBUS 90 Degree Bus Connector without PG Socket

PRODUCT SNAPSHOT

A conventional screw-termination connector for linking PROFIBUS stations to the bus cable. The 90-degree outlet guides cabling close to equipment surfaces, while the integrated switchable terminating resistor supports correct setup at the end of a network segment.

ConditionNew Original

WarrantyOne year

☎ +86 17359287459 ✉ sales9@apterpower.com

Explore Siemens →

NETWORK PATH · OPERATING VALUE

Communication architecture and efficient field service

COMMUNICATION & CONNECTION

PERFORMANCE & EFFICIENCY

Network

PROFIBUS DP over RS485

Termination

Integrated resistor switched by slide control

Transfer range

9.6 kbit/s to 12 Mbit/s

Cable outlet

90 degree

Bus cable ports

Two screw-terminal connections

Strain relief

Integrated

Device interface

One 9-pin Sub-D connector; no PG socket

Operating temperature

-25 to +60 °C

OFFICIAL TECHNICAL DATA

PRODUCT TYPEPROFIBUS connector

FASTCONNECTNo

LOCKINGScrewed joint

ENCLOSUREPlastic

PROTECTION CLASSIP20

SILICON-FREEYes

APPROVALSRoHS and UL

LIFECYCLEActive product

Technical values are based on the Siemens product data sheet for 6ES7972-0BA12-0XA0.

BRAND FOUNDATION · FIELD USE

Structured automation support across application stages

Siemens brand characteristics

Application fields

Siemens PROFIBUS accessories provide documented electrical and mechanical variants.

PROFIBUS DP station connections.

Integrated termination supports reliable segment-end configuration.

Machine and process control cabinets.

Defined connection interfaces simplify network maintenance.

Replacement of screw-termination bus plugs.

Broad certification coverage supports industrial cabinet use.

Industrial networks requiring 90-degree cable routing.
