SIEMENS · PRODUCT DETAILS

6GK1102-4AA00

SIMATIC NET Industrial Ethernet OLM V2.0

PRODUCT IDENTITY

An optical link module with three Industrial Twisted Pair interfaces and two BFOC fiber-optic interfaces for 10 Mbit/s Industrial Ethernet networks.

☎ +86 17359287459

✉ sales9@apterpower.com

RELATED MODELS

PERFORMANCE · ENVIRONMENT

Network regeneration performance and environmental limits

PERFORMANCE & EFFICIENCY

◆ Regenerates signal shape and amplitude and retimes forwarded Ethernet data

◆ Three ITP ports and two BFOC optical ports support mixed copper-fiber topologies

◆ Fiber reach is up to 2600 m on 50/125 µm cable or 3100 m on 62.5/125 µm cable

ENVIRONMENTAL RATING

◆ Operating temperature: 0 to 60 °C; storage temperature: −40 to 80 °C

◆ Relative humidity: 10% to 90%, non-condensing

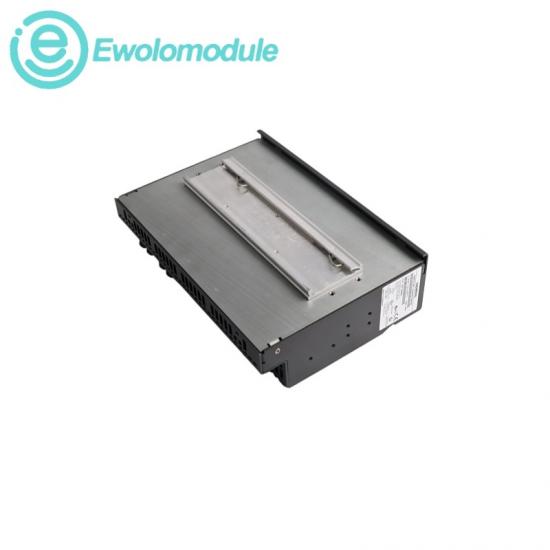

◆ IP30 enclosure; mount on a standard rail with unobstructed convection

OFFICIAL TECHNICAL DATA

Transmission rate 10 Mbit/s	Operating voltage 18–32 V DC SELV	Current at 24 V DC 160 mA typ.; 280 mA max.	ITP interfaces 3
Optical interfaces 2×BFOC	ITP segment length Up to 100 m	Network standard IEEE 802.3 / ISO 8802-3	Protection rating IP30

BRAND CHARACTERISTICS · APPLICATION AREAS

System continuity and industrial deployment

BRAND CHARACTERISTICS

◆ SIMATIC NET components integrate copper and fiber Industrial Ethernet media

◆ Signal regeneration and retiming support deterministic legacy segments

◆ Rail-mounted modular hardware simplifies topology extensions

APPLICATION AREAS

◆ Industrial Ethernet fiber backbones

◆ Electrical-to-optical network transitions

◆ Legacy 10 Mbit/s plant-network expansion
