SIEMENS · PRODUCT DETAILS

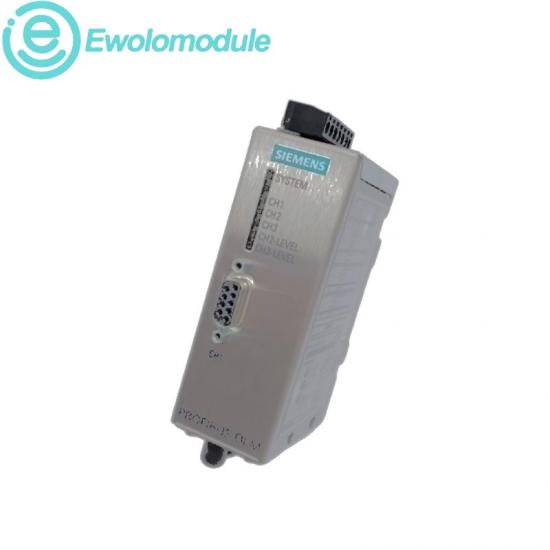

PROFIBUS OLM/P11 V4.1 Optical Link Module

6GK1503-2CA01

PRODUCT IDENTITY

A PROFIBUS optical link module with one RS-485 interface and one plastic-fiber interface using two BFOC sockets, supporting transmission rates from 9.6 kbit/s to 12 Mbit/s.

☎ +86 17359287459

✉ sales9@apterpower.com

RELATED MODELS

DIAGNOSTICS · INSTALLATION

Fiber-link diagnostics and controlled network installation

DIAGNOSTICS & PROTECTION

◆ Use the signaling contact and measuring output when locating link faults

◆ Inspect BFOC connectors, fiber condition and optical power during diagnosis

◆ Confirm the selected transmission rate across the complete PROFIBUS segment

INSTALLATION & UPGRADE

◆ Supply the module from 24 V DC within the specified 18–32 V range

◆ Observe the supported POF and PCF link distances during cabling

◆ Document node order and restore grounding before recommissioning

OFFICIAL TECHNICAL DATA

Product typeOLM/P11 V4.1	Electrical interface1 × RS-485	Optical interface1 × 2 BFOC sockets	Transmission rate9.6 kbit/s to 12 Mbit/s
PROFIBUS PA rate45.45 kbit/s	POF distanceUp to 80 m	PCF distanceUp to 400 m	Supply voltage24 V DC (18–32 V)

Official data based on Siemens documentation for 6GK1503-2CA01.

BRAND CHARACTERISTICS · APPLICATION AREAS

Automation reliability and practical system fit

BRAND CHARACTERISTICS

◆ Industrial communication portfolio for PROFIBUS networks

◆ Optical isolation and signaling support for maintainable links

◆ Designed for structured copper-to-fiber network expansion

APPLICATION AREAS

◆ PROFIBUS optical backbone construction

◆ Electrical isolation between automation areas

◆ Industrial network extension and fault localization
