01 / Product Details

Siemens

SIMATIC NET · CP 343-2

6GK7343-2AH01-0XA0

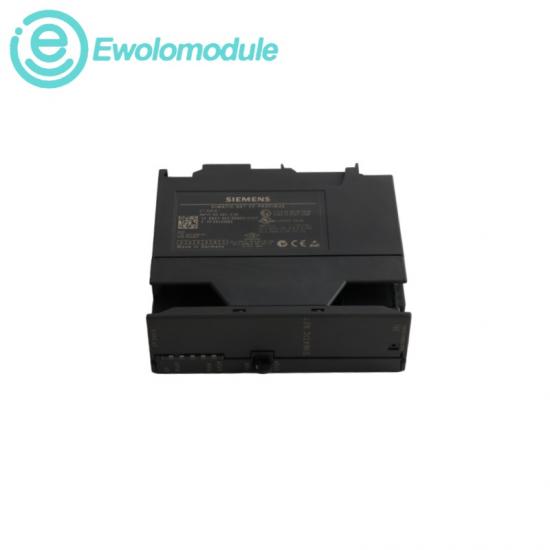

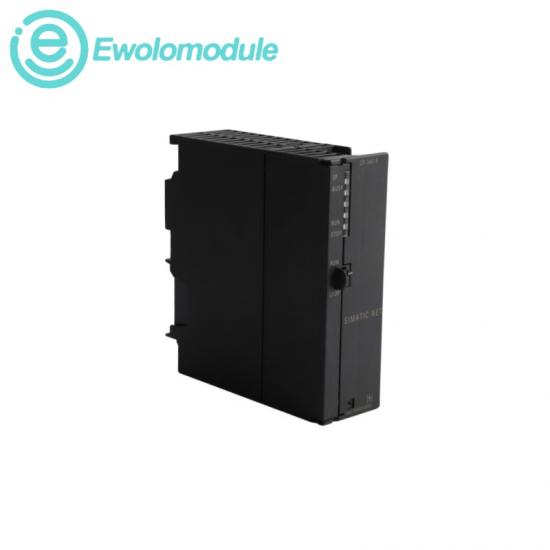

CP 343-2 AS-Interface Communications Processor

An AS-Interface connection module for distributed machine I/O.

ConditionNew Original

WarrantyOne year

In stock2

Official sources

Siemens CP 343-2 Data Sheet · 25/02/2026 Siemens Industry Mall · product record

Specifications

AS-Interface network integration

Connects field devices to the automation controller through the backplane and makes their process data available to the user program.

AS-i specification

V3.0; master profile M4

AS-i interfaces

Maximum AS-i devices

Bus cycle

5 ms for 31 devices; 10 ms for 62

Front connection

20-pin S7-300 connector

Backplane current

200 mA maximum

Power loss

4 W

Protection class

IP20

Ordering code

The 2AH01 article identifies the CP 343-2 AS-i V3.0 version. Retain the complete code when selecting a replacement.

System connection

For SIMATIC S7-300 and ET 200M. Redundancy is supported in conjunction with a redundant IM 153 configuration.

Data access

Digital data use process-image or peripheral addressing.

Analog values

Analog data are accessed by data-record transfer.

Commissioning

Set pushbutton, STEP 7 or command interface configuration.
