SIEMENSSIMOVERT MASTERDRIVES

01 / PRODUCT DETAILS

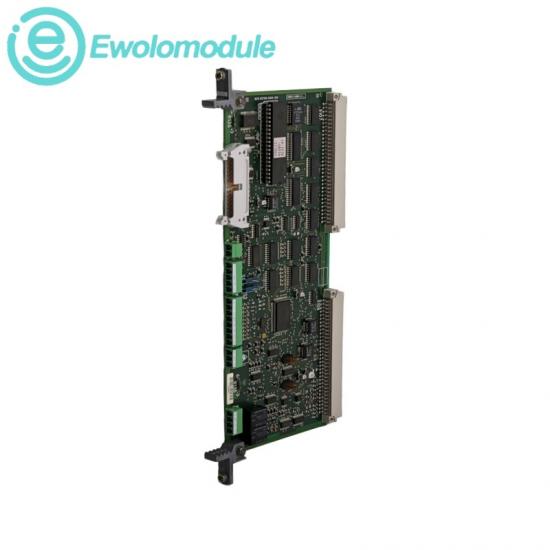

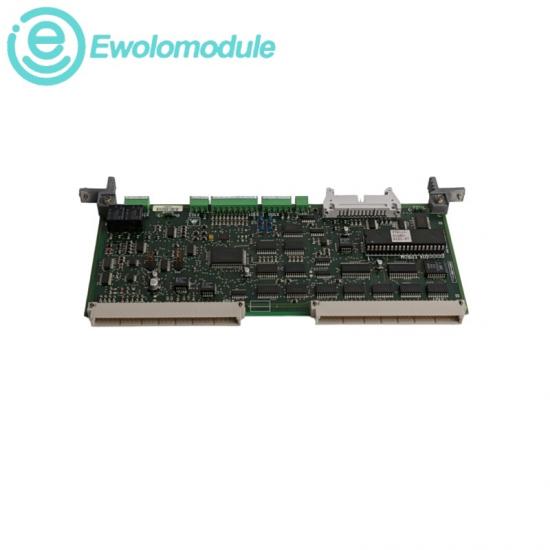

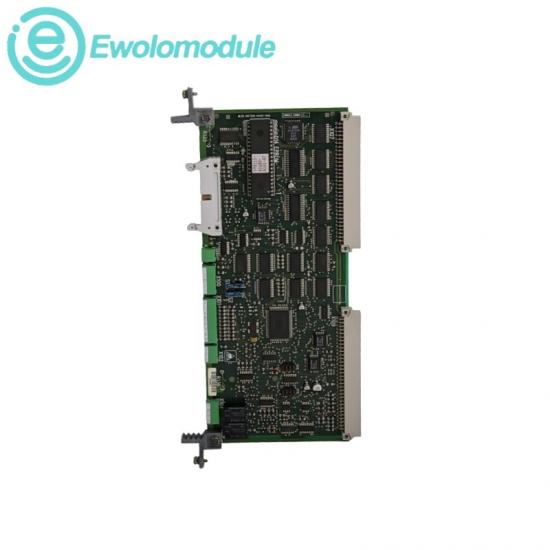

6SE7090-0XX85-1DA0

CUR Control Module for Infeed and Regenerative Units

A closed-loop control module for drive infeed and regenerative power units.

ConditionNew Original

WarrantyOne year

In stock1

Official data sourcesSiemens Industry Mall product record · Siemens DA 65.10 Catalog, 2000

Technical record

02 / SPECIFICATIONS

Product position

CUR provides the control-terminal functions of the documented rectifier and rectifier/regenerative units.

Serial & input interfaces

X100 serial interfaceUSS / RS485, non-isolated

X300 serial interfaceUSS / RS232 / RS485

Digital input current12 mA maximum

Analog output channels2

Output characteristics

Analog output range0 to +10 V

Analog output resolution8 bits plus sign

Analog output current5 mA maximum

Digital output rating48 V DC / 24 W; 48 V AC / 60 VA at cos φ = 1

Ordering code note

The complete article number identifies the CUR hardware. Siemens lists software 6SW1701-0DA14 as a separately ordered item.

System connection

Match the rectifier or regenerative-unit configuration to the Siemens drive documentation. The optional X117 interface supports twelve-pulse operation.

Local operation

PMU connection provided.

Bus configuration

Switchable USS bus termination.

Terminal connections

Pluggable X101–X104 terminal strip.
