Modular Drive System MODEL 6SL3120-1TE15-0AA4

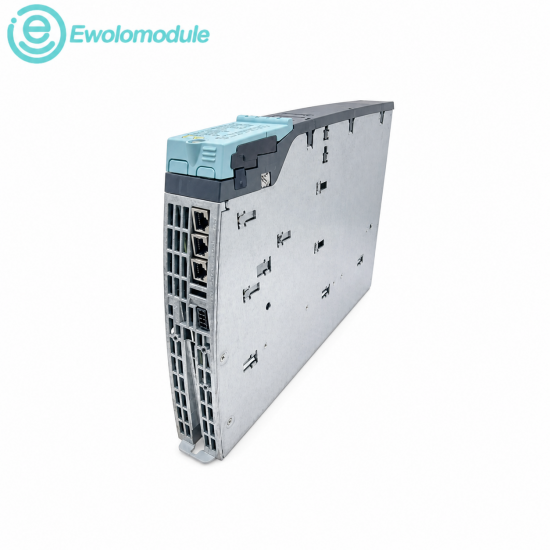

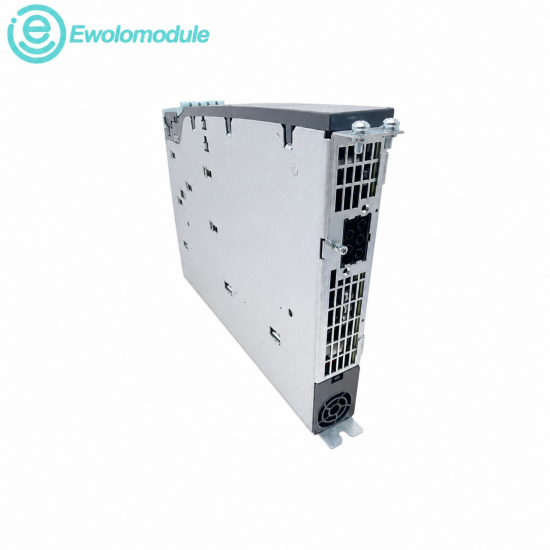

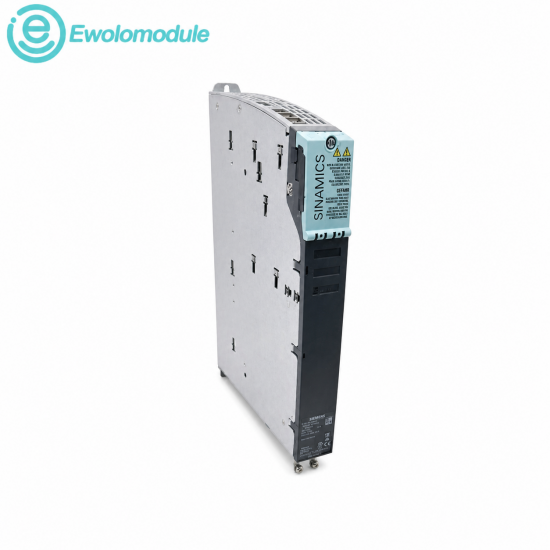

Siemens 6SL3120-1TE15-0AA4 SINAMICS S120 Single Motor Module

Siemens 6SL3120-1TE15-0AA4 is a 5 A SINAMICS S120 booksize Single Motor Module for one controlled motor axis. 6SL3120-1TE15-0AA4 converts a 600 V DC link into 400 V three-phase output with DRIVE-CLiQ and extended safety support.

Product SeriesSiemens SINAMICS S120 Booksize Single Motor Module Series

Product StatusNew and Original

Tariff Code85044085

Product Introduction

Siemens 6SL3120-1TE15-0AA4 is a SINAMICS S120 booksize Single Motor Module that supplies and controls one motor axis in a modular multi-axis drive system. The internally air-cooled module accepts a 600 V DC-link input and provides a 400 V three-phase output with a 5 A rated current. 6SL3120-1TE15-0AA4 supports optimized pulse patterns, extended Safety Integrated functions, and DRIVE-CLiQ communication for coordinated drive control, diagnostics, and commissioning.

DC-link input voltage	600 V DC	Rated output power	2.7 kW
Three-phase output voltage	400 V AC	Electronics supply voltage	24 V DC
Rated output current	5 A	Electronics supply range	20.4–28.8 V DC
Maximum output current	15 A	DC-link voltage range	510–720 V DC
DC-link current	6 A	Output frequency	0–550 Hz

Applications by Industry

5 Typical Use Cases

01Modular multi-axis machinery.

Controls one motor axis within a SINAMICS S120 booksize drive line-up for coordinated industrial motion.

02Machine-tool feed axes.

Provides regulated three-phase motor output, DRIVE-CLiQ communication, and diagnostics for precise machine-axis operation.

03Packaging and production equipment.

Drives synchronized conveyors, handling mechanisms, and processing axes that require dynamic speed and position control.

04Safety-related motion systems.

Supports extended Safety Integrated functions for compatible machine designs requiring controlled and monitored motor movement.

05SINAMICS S120 lifecycle service.

Restores a specified 5 A Single Motor Module during exact-model replacement, maintenance, or refurbishment of installed drive systems.
